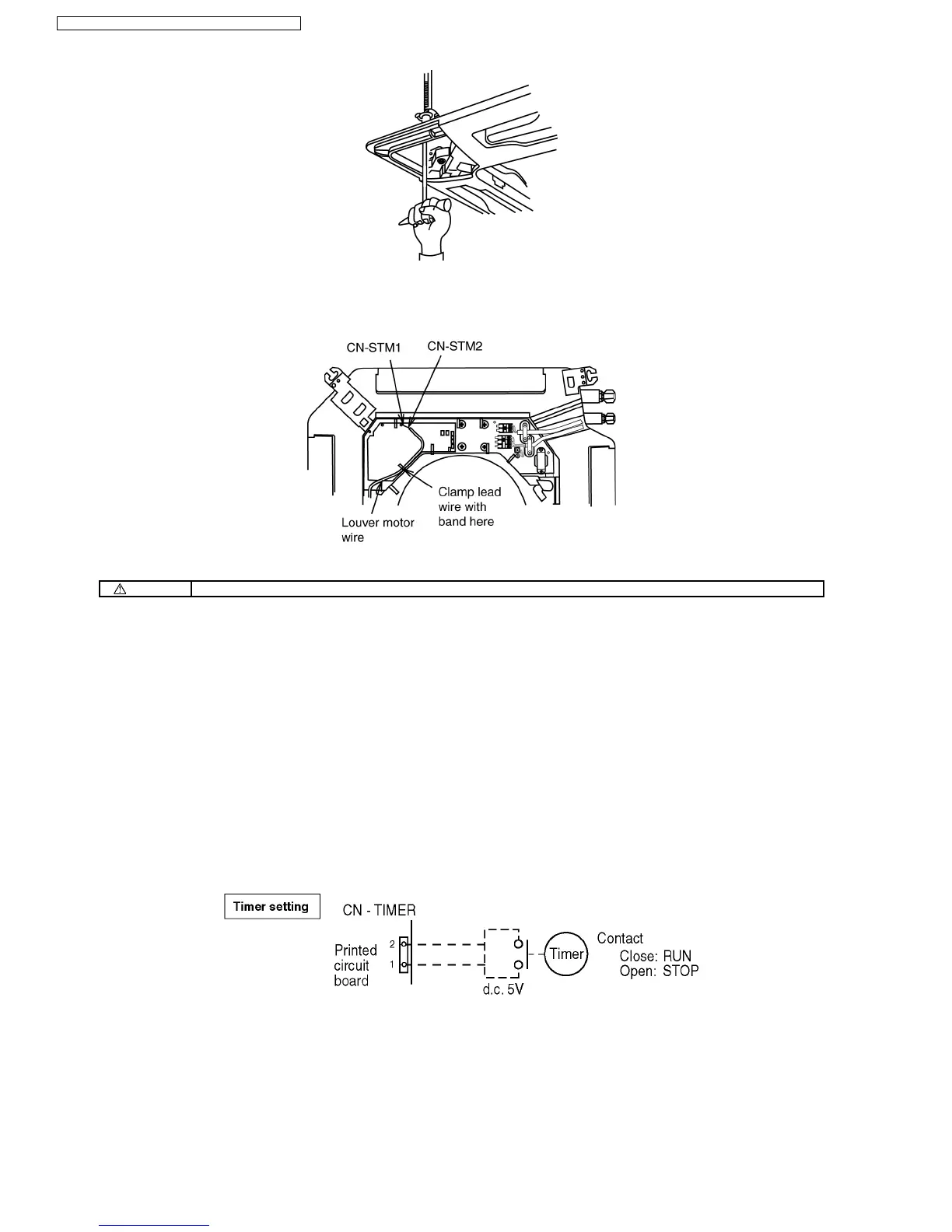

7. Open the indoor control box cover. (2 pcs)
8. Insert firmly the connector of cosmetic louver to indoor pcb CN-STM1 and CN-STM2.
Be caution not to clamp the cord in between control board and control board cover.
9. After complete, install back removed part follow opposite procedure.
Warning Be sure to hook the air inlet grill string, to prevent grill from falling and causing injury from it.
If fixing wireless remocon, follow the instruction manual that include inside wireless remocon accessory.
(Remote Control Address Setting)
(Refer to the Installation Manual which is provided with the remote controller for details.)
•
• •
•
Two remote controllers (including the wireless remote controller) can be connected. However, remote control thermistor
setting is not possible.
•
• •
•
As for [master/slave] setting of remote controller, the automatic setting and manual setting are possible. Since manual
setting is priority.
•
• •
•
Two remote controllers, which both are wireless, cannot be connected.
10.4.10. As for timer output
•
• •
•
Connect the timer cord to connector (CN-TIMER) on print circuit board.
10.4.11. Precautions in test run
•
• •
•
The initial power supply must provide at least 90% of the rated voltage. Otherwise, the air conditioner may not operate.
•
• •
•
Test operation can be carried out using the remote control unit or at the outdoor unit. (If carrying out test operation at the
outdoor unit, refer to “TEST OPERATION” in the outdoor unit installation manual.)
•
• •
•
If using the remote control unit to carry out test operation, follow the procedure given below.
46
CS-F24DB4E5 CU-L24DBE5 / CS-F28DB4E5 CU-L28DBE5
