Panasonic CS-F24DTE5 Service Manual

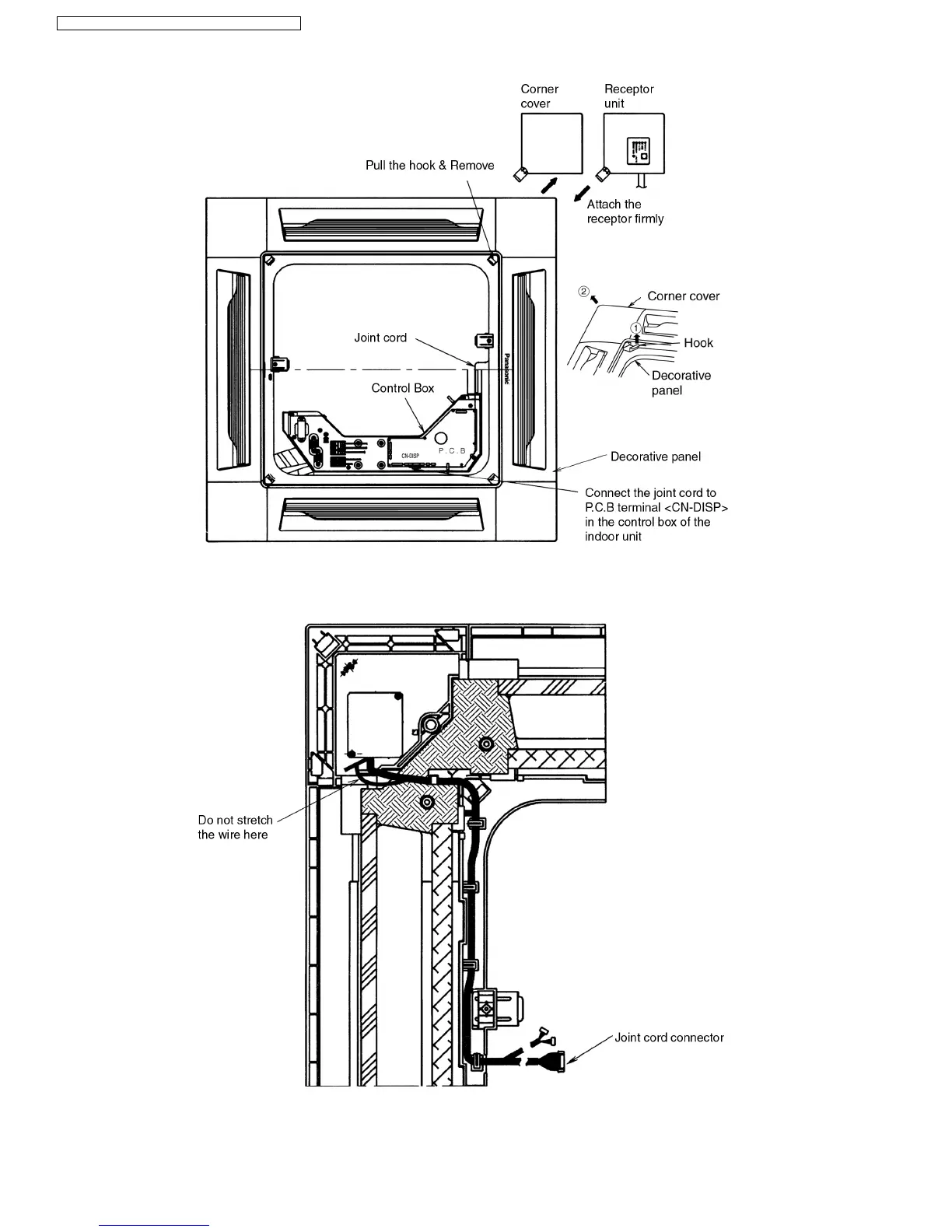

1. Route the joint cord for wiring as shown in the figure (figure of the back of decorative panel) below.
Pass the cord through the hook of the decorative panel, taking care that the cord does not run on the heat insulator, etc.
2. Remove the control box cover by removing the two fixing screws and connect the joint cord to P.C.B terminal <CN-DISP> in the
control box.
68
CS-F24DB4E5 CU-L24DBE5 / CS-F28DB4E5 CU-L28DBE5
