Panasonic CS-F50DTE5 Service Manual

51

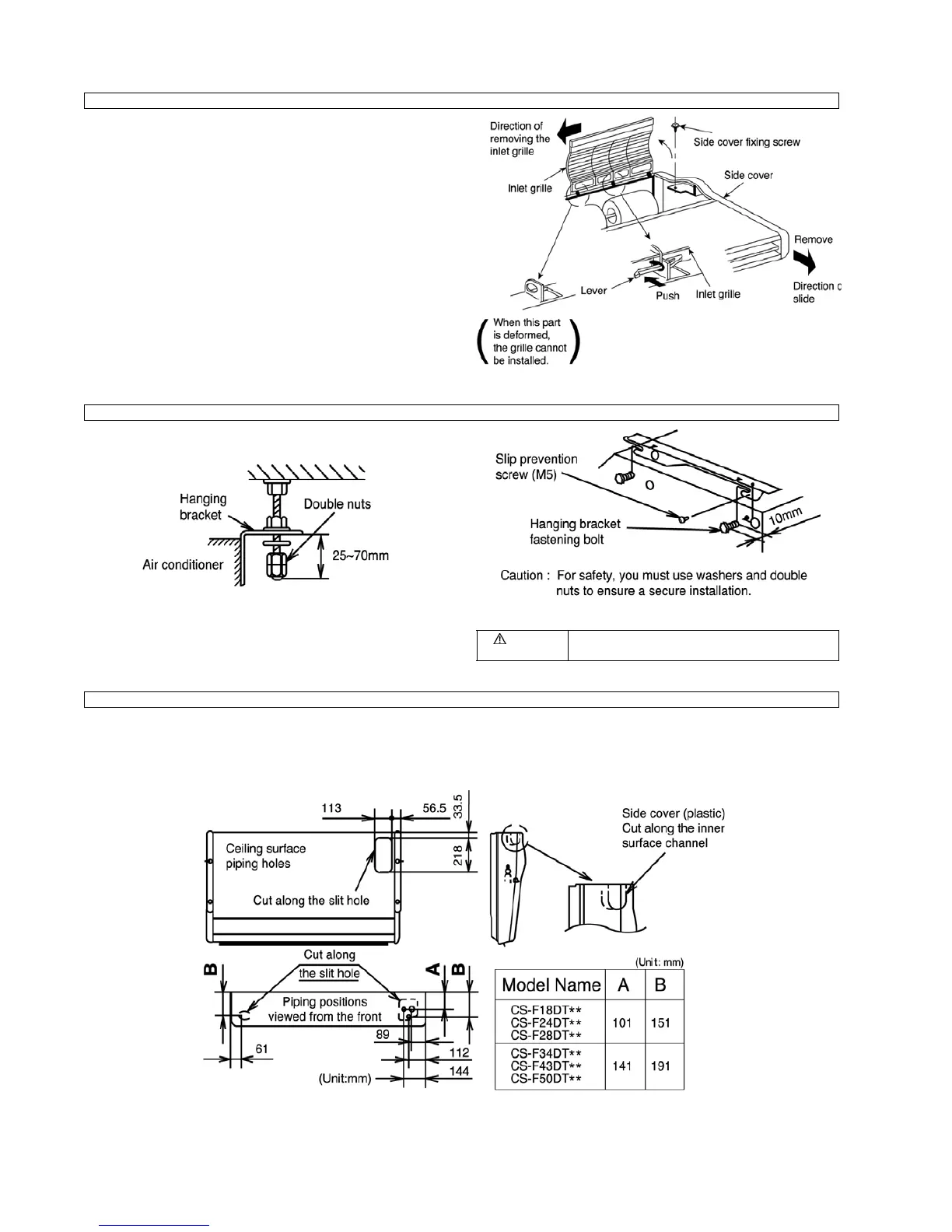

1. Open the inlet grille, and remove the side cover fixing
screw (right and left) from the internal part of the unit.
2. Move the side cover to about 15mm forward to remove it.
Use the packing material (Styrene foam) to support, when
you reverse the top and bottom of the indoor unit.
3. Remove the hanging bracket
a. Remove the slip prevention screws of the brackets
(right and left).
b. Loosen the hanging bracket fastening bolts to about
10mm, and remove the hanging bracket.
* Use either W3/8 or M10 bolts and nuts (local supplied)
• Fastening the hanging bracket
• The refrigerant piping can be installed on the right, right upper or right rear.
• The drain piping can be installed on the right, right rear, left or left rear (there are connection ports on both right and left sides.)
• Thermally insulate the drain and refrigerant piping to prevent dew condensation.
• After cutting the piping holes, use the edge protection cover (accessory) to protect the end surfaces.
REMOVING THE SIDE COVER AND HANGING BRACKET
Fastening the hanging bracket
Warning
Be sure to tighten the nut and bolt to prevent the
unit from falling.
Piping hole positions

Panasonic CS-F50DTE5 Specifications

General

Indoor unit type	Ceiling
Indoor unit weight	47000 g
Indoor units quantity	1
Indoor unit dimensions (WxDxH)	1600 x 700 x 250 mm
Indoor unit noise level (high speed)	50 dB
Outdoor unit weight	105000 g
Outdoor unit noise level	56 dB
Outdoor unit dimensions (WxDxH)	900 x 320 x 1340 mm
Hose length (max)	50 m
Inverter technology	Yes
Refrigerating medium	R410A
Cooling capacity (max)	47700 BTU/h
Heating capacity (max)	54600 BTU/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	14000 W
Heating capacity in watts (max)	16000 W
Cooling energy efficiency (EER, W/W)	2.91
Heating energy efficiency (COP, W/W)	3.41
