Panasonic CS-F50DTE5 Service Manual

109

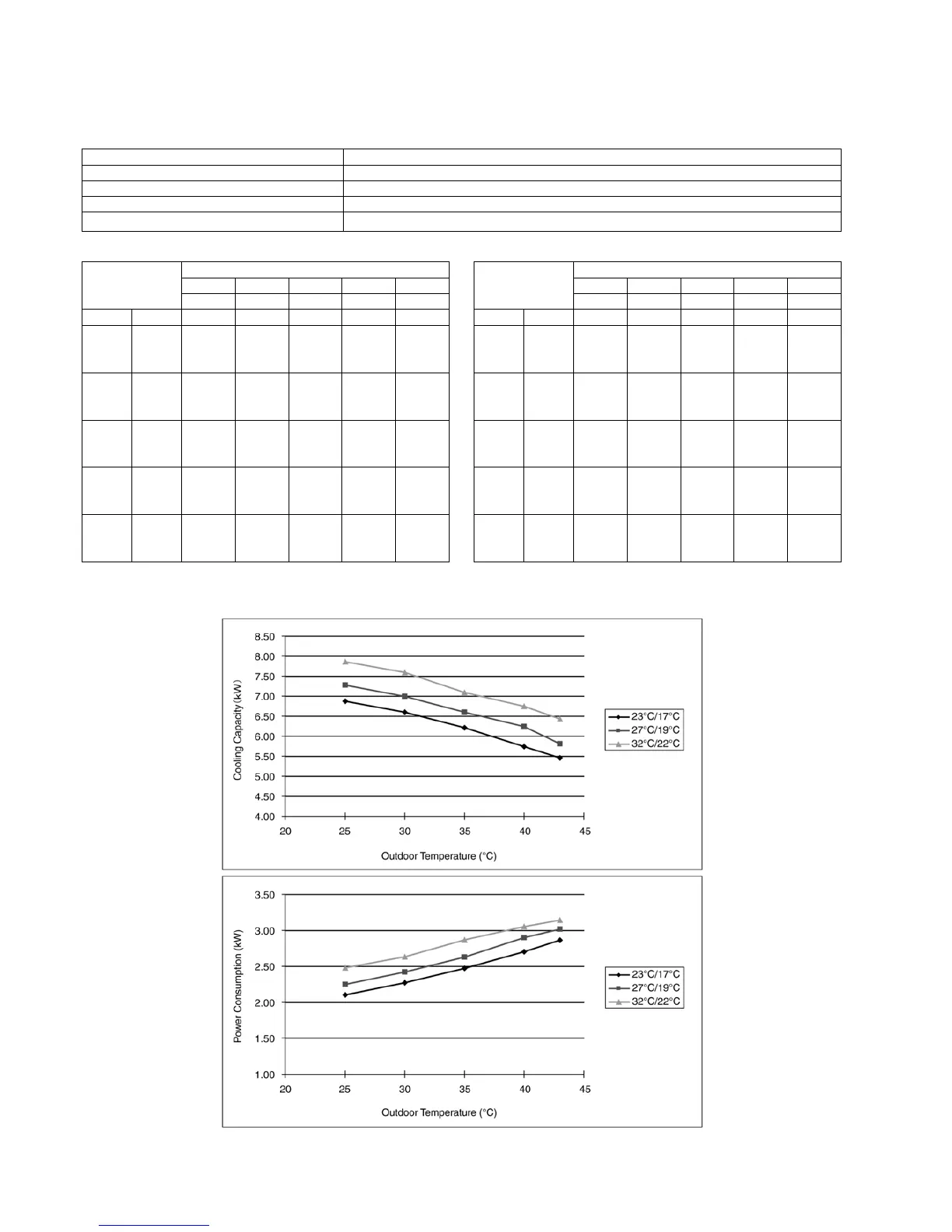

13.2. Capacity and power consumption
13.2.1. Cooling Performance
TC: Cooling Capacity IPT: Cooling Power Consumption
Model Cooling capacities are based on conditions
CS-F24DTE5 Single phase, 50Hz 230V, Three phase, 50Hz 400V
Cooling capacity Indoor temp. 27°C D.B. 19°C W.B.
6.6kW Outdoor temp. 35°C D.B.
Standard air volume 17 m
3
/min
Ambient Temperature Air Entering Condenser (°C D.B.)
Return 25°C30°C35°C40°C43°C
Air TCTCTCTCTC
D.B. W.B. kW kW kW kW kW
17 6.87 6.60 6.21 5.74 5.46
23 19 7.26 7.03 6.67 6.22 5.90
22 7.92 7.71 7.36 6.88 6.56
17 6.79 6.53 6.15 5.70 5.38
25 19 7.26 7.01 6.64 6.18 5.86
22 7.92 7.68 7.30 6.80 6.50
17 6.71 6.45 6.09 5.66 5.35
27 19 7.27 7.00 6.60 6.24 5.81
22 7.91 7.65 7.25 6.73 6.44
17 6.69 6.45 6.07 5.70 5.42
29 19 7.26 7.00 6.60 6.19 5.88
22 7.88 7.61 7.20 6.74 6.43
17 6.68 6.45 5.64 5.73 5.46
32 19 7.25 7.00 6.60 6.22 5.93
22 7.86 7.59 7.19 6.75 6.43
Ambient Temperature Air Entering Condenser (°C D.B.)
Return 25°C30°C35°C40°C43°C
Air IPT IPT IPT IPT IPT
D.B. W.B. kW kW kW kW kW
17 2.09 2.27 2.47 2.71 2.87
23 19 2.22 2.40 2.62 2.87 3.04
22 2.40 2.60 2.83 3.10 3.29
17 2.10 2.26 2.47 2.69 2.85
25 19 2.23 2.41 2.62 2.87 3.04
22 2.41 2.60 2.83 3.09 3.28
17 2.10 2.26 2.46 2.67 2.83
27 19 2.24 2.42 2.63 2.86 3.03
22 2.42 2.61 2.84 3.09 3.27
17 2.09 2.26 2.43 2.61 2.72
29 19 2.23 2.41 2.60 2.79 2.91
22 2.46 2.66 2.86 3.07 3.20
17 2.08 2.25 2.41 2.57 2.65
32 19 2.22 2.41 2.58 2.75 2.83
22 2.48 2.64 2.88 3.06 3.16

Panasonic CS-F50DTE5 Specifications

General

Indoor unit type	Ceiling
Indoor unit weight	47000 g
Indoor units quantity	1
Indoor unit dimensions (WxDxH)	1600 x 700 x 250 mm
Indoor unit noise level (high speed)	50 dB
Outdoor unit weight	105000 g
Outdoor unit noise level	56 dB
Outdoor unit dimensions (WxDxH)	900 x 320 x 1340 mm
Hose length (max)	50 m
Inverter technology	Yes
Refrigerating medium	R410A
Cooling capacity (max)	47700 BTU/h
Heating capacity (max)	54600 BTU/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	14000 W
Heating capacity in watts (max)	16000 W
Cooling energy efficiency (EER, W/W)	2.91
Heating energy efficiency (COP, W/W)	3.41
