Panasonic CS-F50DTE5 Service Manual

71

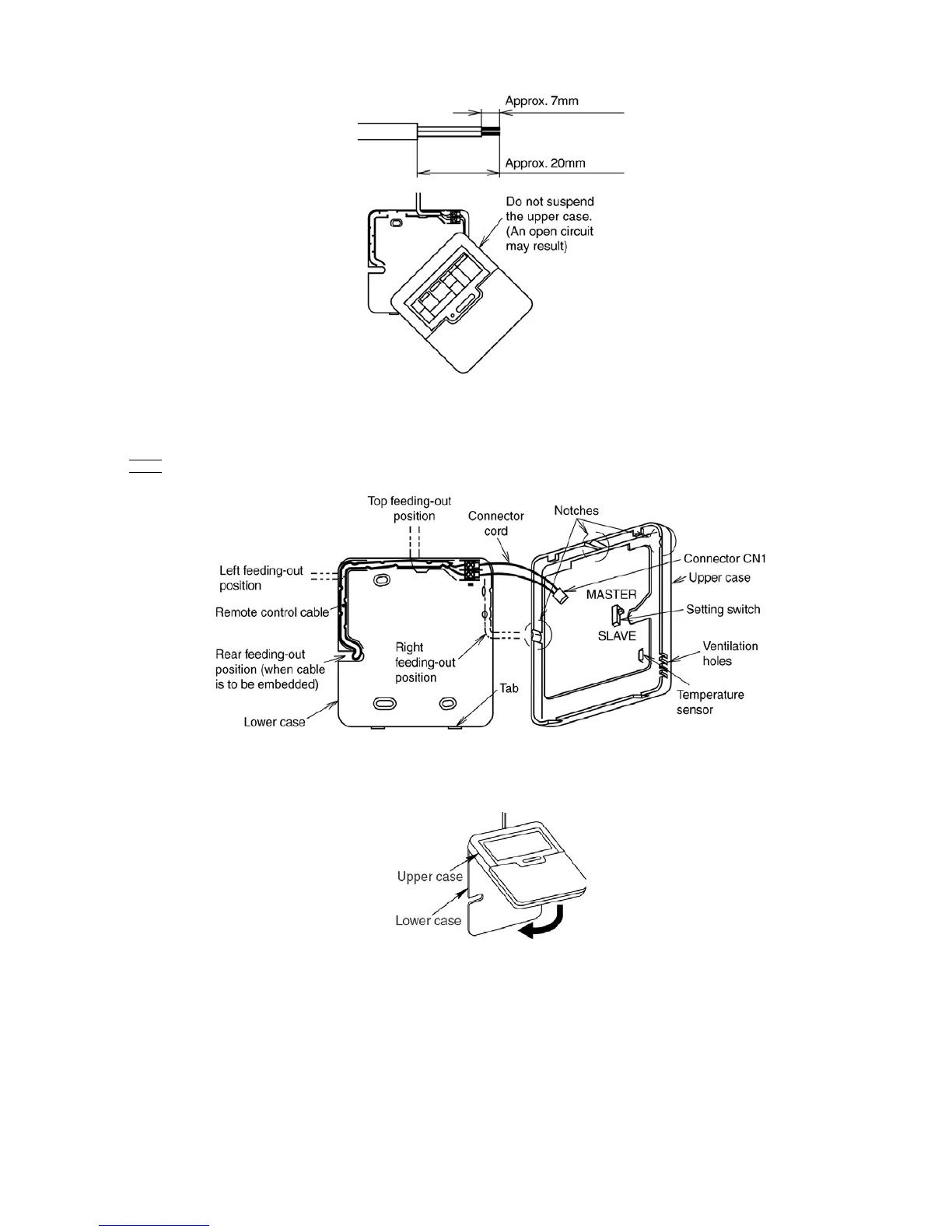

• Strip the end of the remote control cable which is to be connected to the remote controller. (Refer to the illustration below)
• Route the remote control cable inside the lower case in accordance with the intended feeding- out direction. (Refer to the
illustration below.)
Securely connect connector CN1. (If it is not connected the remote controller will not operate.)
• If controlling using two remote controllers, refer to “Control using two remote controllers” in “4 Settings”.
• Secure the upper case to the lower case.
(Hook the upper tab of the upper case into the lower case, and then push the upper case until it snaps shut onto the lower case
tab, while being careful not to clamp the remote control cable and the connector cord.)
NOTE After connecting the connector, do not suspend the upper case by its own weight, otherwise the connector cord may break.

Panasonic CS-F50DTE5 Specifications

General

Indoor unit type	Ceiling
Indoor unit weight	47000 g
Indoor units quantity	1
Indoor unit dimensions (WxDxH)	1600 x 700 x 250 mm
Indoor unit noise level (high speed)	50 dB
Outdoor unit weight	105000 g
Outdoor unit noise level	56 dB
Outdoor unit dimensions (WxDxH)	900 x 320 x 1340 mm
Hose length (max)	50 m
Inverter technology	Yes
Refrigerating medium	R410A
Cooling capacity (max)	47700 BTU/h
Heating capacity (max)	54600 BTU/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	14000 W
Heating capacity in watts (max)	16000 W
Cooling energy efficiency (EER, W/W)	2.91
Heating energy efficiency (COP, W/W)	3.41
