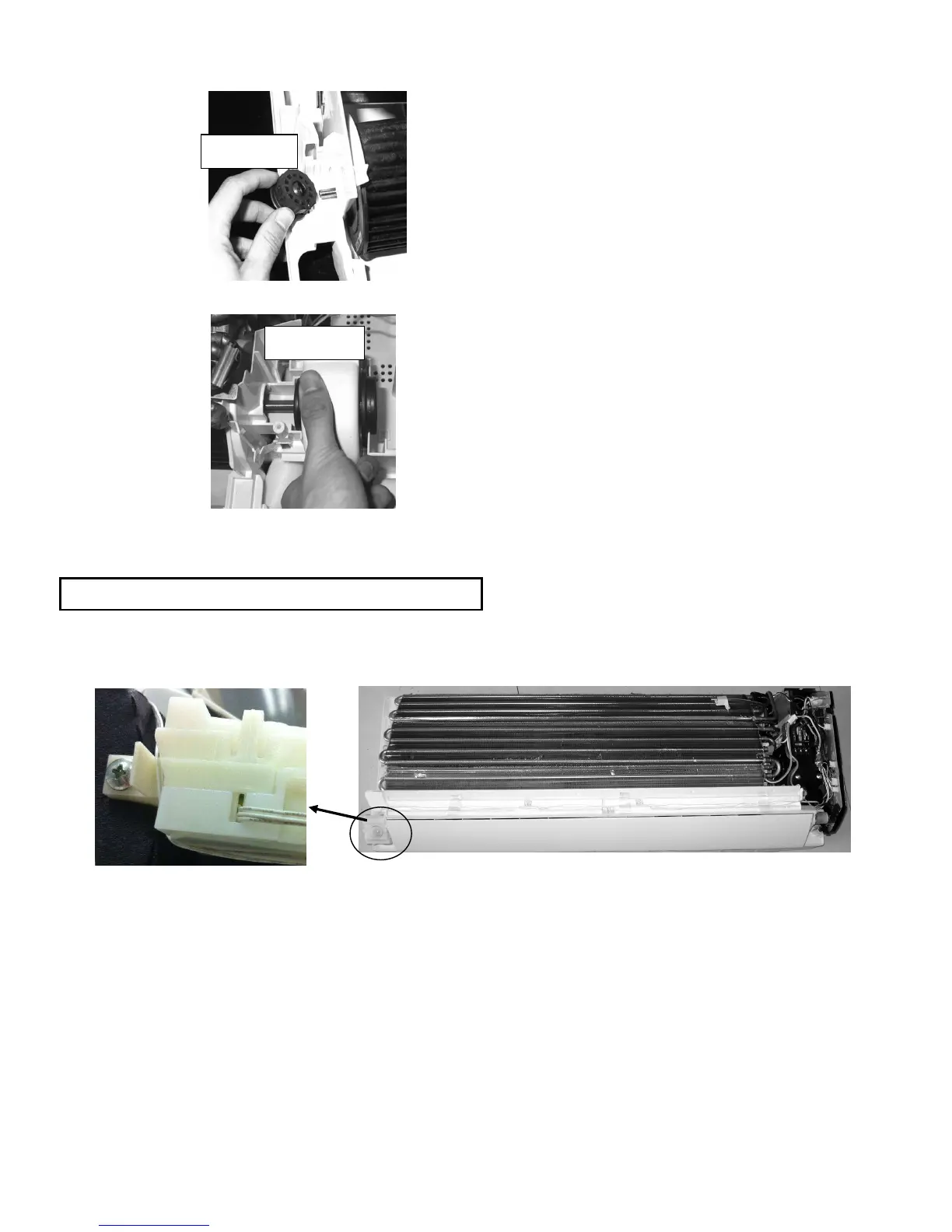

3.After removing the bearing, indoor fan can be taken out from the left side
4.Lift up the indoor fan slightly, and then pull the fan motor out.
Loose the screw of human sensor complete, which is fixing to the discharge grille. Remove the upper cover of human
sensor complete, take out the sensor PCB, disconnect the wire connector to CN2 of sensor PCB. ( Please be awared
there are two small PCBs contained in the human activity sensor complate.)
Human sensor complete
Bearing
Fan motor
Removal Procedure for Human activity sensor complete
