78 cm
Cable
: Centre of the piping hole
(left rear side of piping)
4
Pull out the piping and drain hose
1. FOR THE RIGHT REAR PIPING
Pull out the Indoor piping
Install the Indoor Unit
Secure the Indoor Unit
Insert the connecting cable
2. FOR THE RIGHT AND RIGHT
BOTTOM PIPING
Pull out the Indoor piping
Install the Indoor Unit
Insert the connecting cable
Secure the Indoor Unit
How to keep the cover
(Left, right and 2 bottom covers for piping)
Cover for piping
Install the Indoor Unit
Hooks at
installation
plate
Sleeve for
piping hole
Piping
Drain hose
Indoor unit
Secure the Indoor Unit
Installation
plate
Unit’s hook
Cover for
the right piping
Cover for the bottom piping
Cover for the bottom
piping
Cover for the
left piping
Insert the connecting cable
Gas side piping
Connecting cable
Drain hose
Guide surface
Connecting cable
About
8 – 9 cm
Liquid side piping

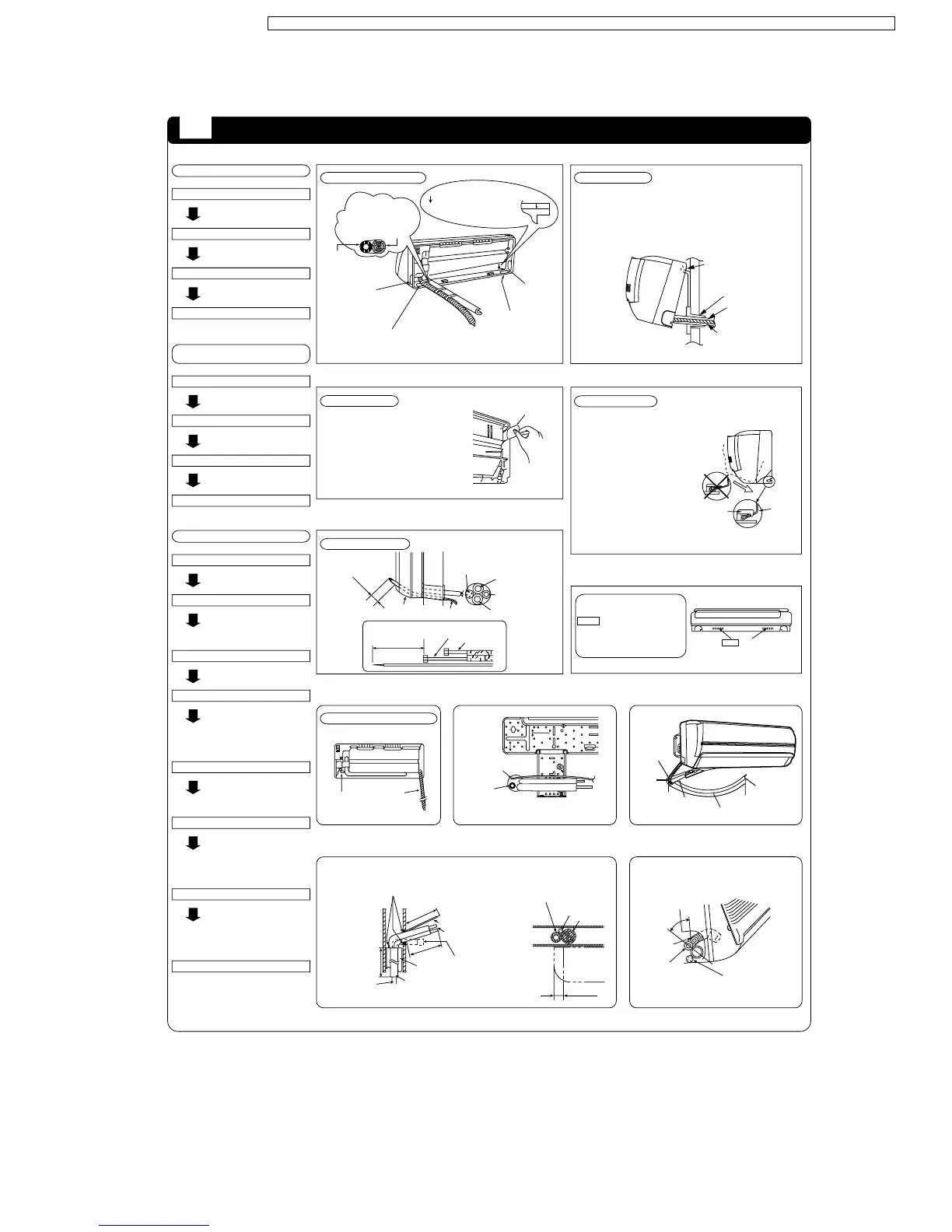

INDOOR UNIT INSTALLATION
In case of the cover is cut, keep the cover
at the rear of chassis as shown in the
illustration for future reinstallation.
Hook the indoor unit onto the upper portion of installation
plate(Engage the indoor unit with the upper edge of the installation
plate). Ensure the hooks are properly seated on the installation
plate by moving in left and right.
1. Tape the extra power supply cord in a
bundle and keep it behind the chassis.
1. • Ensure that the power supply
cord is not clamped in
between the unit's hook (2
positions) and installation
plate.
2. Press the lower left and right
side of the unit against the
installation plate until hooks
engages with their slots
(sound click).
3. FOR THE EMBEDDED PIPING
Replace the drain hose
Bend the embedded piping
Install the Indoor Unit
Cut and flare the embedded piping
Pull the connecting cable into Indoor Unit
Connect the piping
Insulate and finish the piping
Secure the Indoor Unit
Drain cap
Drain hose
Adjust the piping slightly downwards.
Rear view for left piping installation
Apply putty or caulking material to seal the wall opening
(For the right piping, follow the same procedure)
(This can be used for left rear piping & left bottom piping also.)
Exchange the drain hose and the cap
•
How to pull the piping and drain hose out, in case of the embedded piping.
Piping
Drain
hose
Sleeve for
piping hole
Connecting cable
Cable
Drain hose
Piping
45
PVC tube for drain hose
Cable
Piping
6 cm
More than approx. 95 cm
marking
Length of
connecting cable
Gas side piping
Liquid side piping
Connecting cable
Piping
Drain hose from main unit
PVC tube for drain hose (VP-30)
PVC tube for
drain hose (VP-20)
More than 70 cm
More than
100 cm
More
than 32 cm
PVC tube (VP-65) for piping
and connecting cable
• Use a spring bender or
equivalent to bend the piping so
that the piping is not crushed.
• The inside and outside
connecting cable can be
connected without removing the
front grille.
• Please refer to “Connecting the
piping” column in outdoor unit
section. (Below steps are done
after connecting the outdoor
piping and gas-leakage
confirmation.)
• Please refer to “Piping and
finishing” column of outdoor
section and “Insulation of piping
connections” column as
mentioned in Indoor/ Outdoor
Unit Installation.
• When determining the
dimensions of the piping, slide
the unit all the way to the left on
the installation plate.
• Refer to the section “Cutting and
flaring the piping”.
To take out the unit, push the
PUSH marking at the bottom unit ,
and pull it slightly towards you to
disengage the hooks from the unit.
Indoor
Unit
• In case of left piping how to insert the
connecting cable and drain hose.
Drain hose
Move the drain
hose near to arrow mark
and tape it with piping in a
position as mentioned in
Fig below
Piping
PUSH
°
Connecting cable
Drain hose
67
