Panasonic CS-ME12CKPG Service Manual

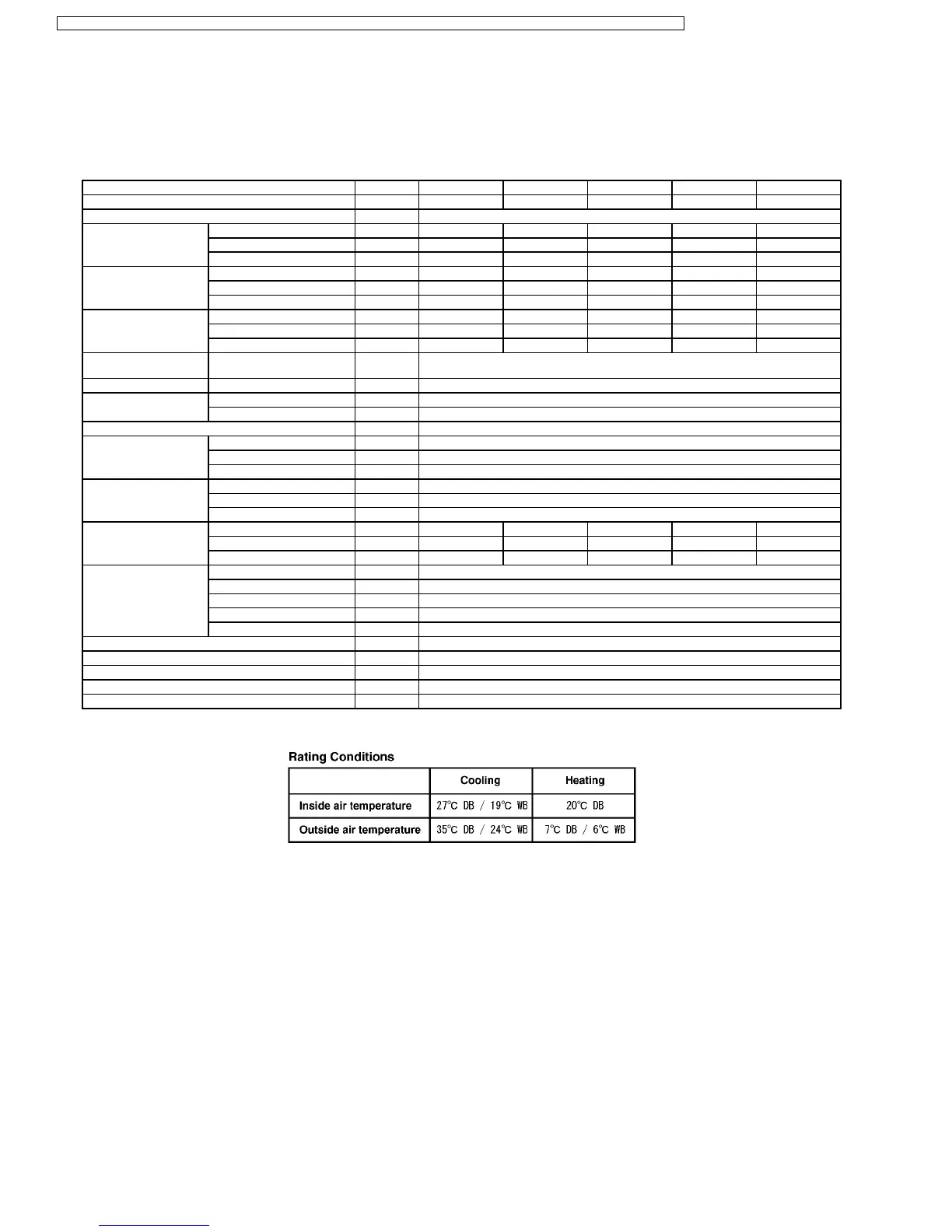

4 Product Specifications
4.1. PRODUCT SPECIFICATIONS
4.1.1. Indoor Unit
Model name CS-ME7CKPG CS-ME10CKPG CS-ME12CKPG CS-ME14CKPG CS-ME18CKPG
Type Wall Mounted Wall Mounted Wall Mounted Wall Mounted Wall Mounted
Power Source Single phase, 230V, 50Hz (Power supply from outdoor unit)
Air Volume (Hi) Low Cooling(Heating) m
3
/min. 6.1(7.2) 6.1(7.2) 6.7(8.4) 6.7(8.4) 7.6(9.2)
Medium Cooling(Heating) m
3
/min. 8.1(9.2) 8.1(9.2) 9.2(10.8) 9.2(10.8) 10.0(11.8)
High Cooling(Heating) m
3
/min. 10.1(11.2) 10.1(11.2) 11.6(11.6) 11.6(11.6) 12.1(14.4)
Noise level (Hi/Lo)
Sound Pressure
Level
Low Cooling(Heating) dB 29(29) 29(29) 32(32) 32(33) 33(35)
Medium Cooling(Heating) dB 36(36) 36(36) 39(39) 39(39) 41(41)
High Cooling(Heating) dB 40(40) 40(40) 44(44) 44(44) 46(46)
Sound Power Level Low Cooling(Heating) dB 42(42) 42(42) 45(45) 45(46) 46(48)
Medium Cooling(Heating) dB 49(49) 49(49) 52(52) 52(52) 54(54)
High Cooling(Heating) dB 53(53) 53(53) 57(57) 57(57) 59(59)
Piping Connection
Port
Gas side inch Half Union 3/8"
(Flare piping) Liquid side inch Half Union 1/4"
Pipe Diameter Gas side inch 3/8"
Liquid side inch 1/4"
Connecting Cable (Indoor-Outdoor) Polychloroprene Sheathed 4 x 1.5mm2 Flexible Code
Dimensions Height mm 275
Width mm 770
Depth mm 230
Air Circulation Type Cross-flow Fan
Motor Type DC Brushless motor
Rated Output w 30
Fan Speed Low Cooling(Heating) rpm 860(890) 860(890) 920(1000) 920(1000) 1000(1070)
Medium Cooling(Heating) rpm 1060(1070) 1060(1070) 1170(1230) 1170(1230) 1250(1310)
High Cooling(Heating) rpm 1250(1250) 1250(1250) 1410(1450) 1410(1450) 1500(1540)
Heat Exchanger Type Plate fin configuration, forced draft type
Tube Material Copper
Fin Material Aluminium
Row/Stage 2/14
FPI 21
Thermostat Electronic Control
Air Filter Anti-Mold treated P.P Honeycomb
Air Purifying Filter Catechin coated Electrostatic Filter
Deodorizing Filter Charcoal coated filter
Net Weight kg 8.0
* Specifications are subject to change without notice for further improvement.
8
CS-ME7CKPG / CS-ME10CKPG / CS-ME12CKPG / CS-ME14CKPG / CS-ME18CKPG / CU-2E15CBPG / CU-2E18CBPG / CU-3E23CBPG / CU-4E27CBPG
