12 3
Terminals on the indoor unit
123
Color of wires
Terminals on the outdoor unit
123
5

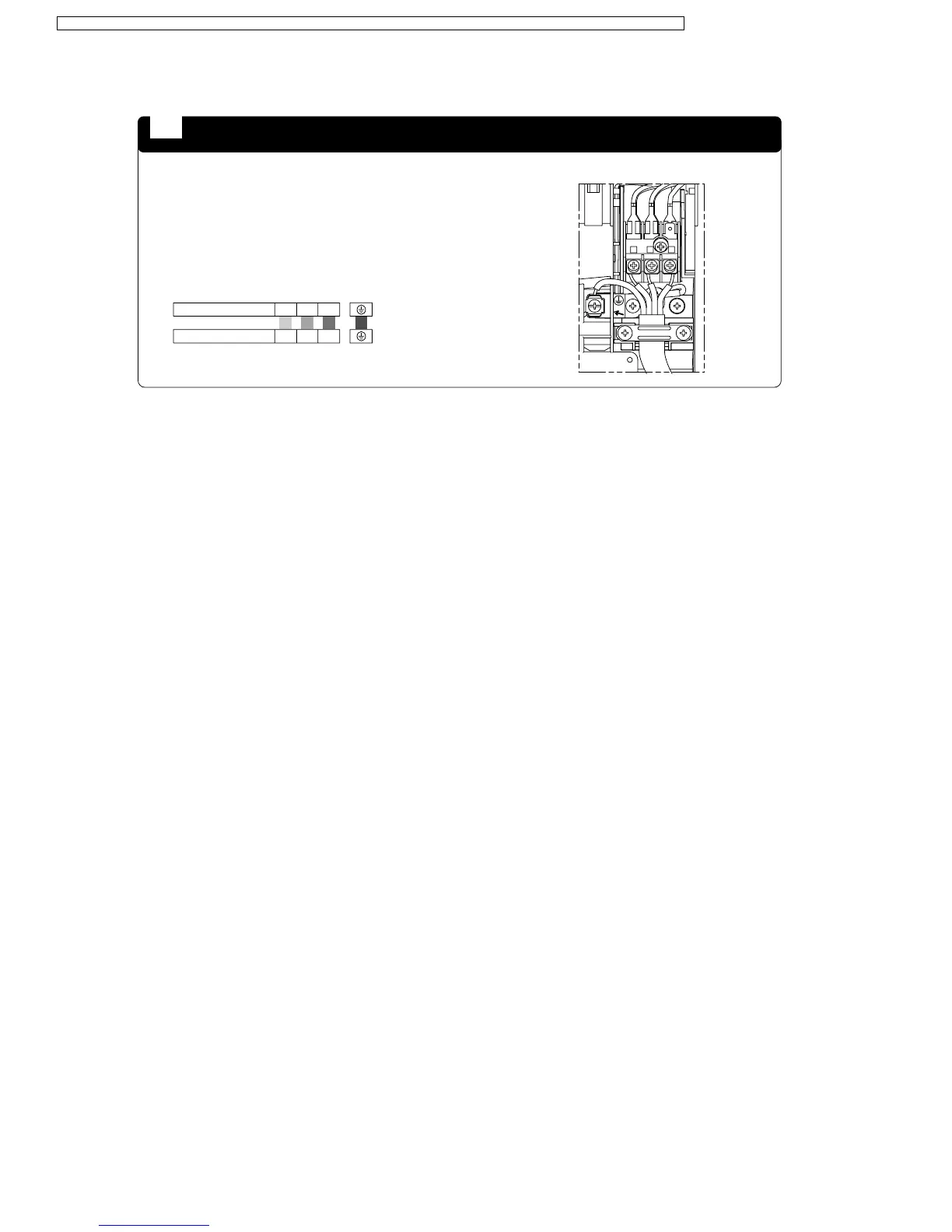

CONNECT THE CABLE TO THE
INDOOR UNIT
1. The inside and outside connecting cable can be connected without removing the
front grille.
2. Connecting cable between indoor unit and outdoor unit shall be approved
polychloroprene sheathed 4 x 1.5 mm
2
flexible cord, type designation 245 IEC
57(H05RN-F) or heavier cord.
• Ensure the color of wires of outdoor unit and the terminal Nos. are the same to
the indoor’s respectively.
• Earth lead wire shall be longer than the other lead wires as shown in the figure for
the electrical safety in case of the slipping out of the cord from the anchorage.
• Secure the cable onto the control board with the holder (clamper).
68
CS-ME7CKPG / CS-ME10CKPG / CS-ME12CKPG / CS-ME14CKPG / CS-ME18CKPG / CU-2E15CBPG / CU-2E18CBPG / CU-3E23CBPG / CU-4E27CBPG
