13.3.3. OUTDOOR UNIT (CU-3E23CBPG/CU-4E27CBPG)

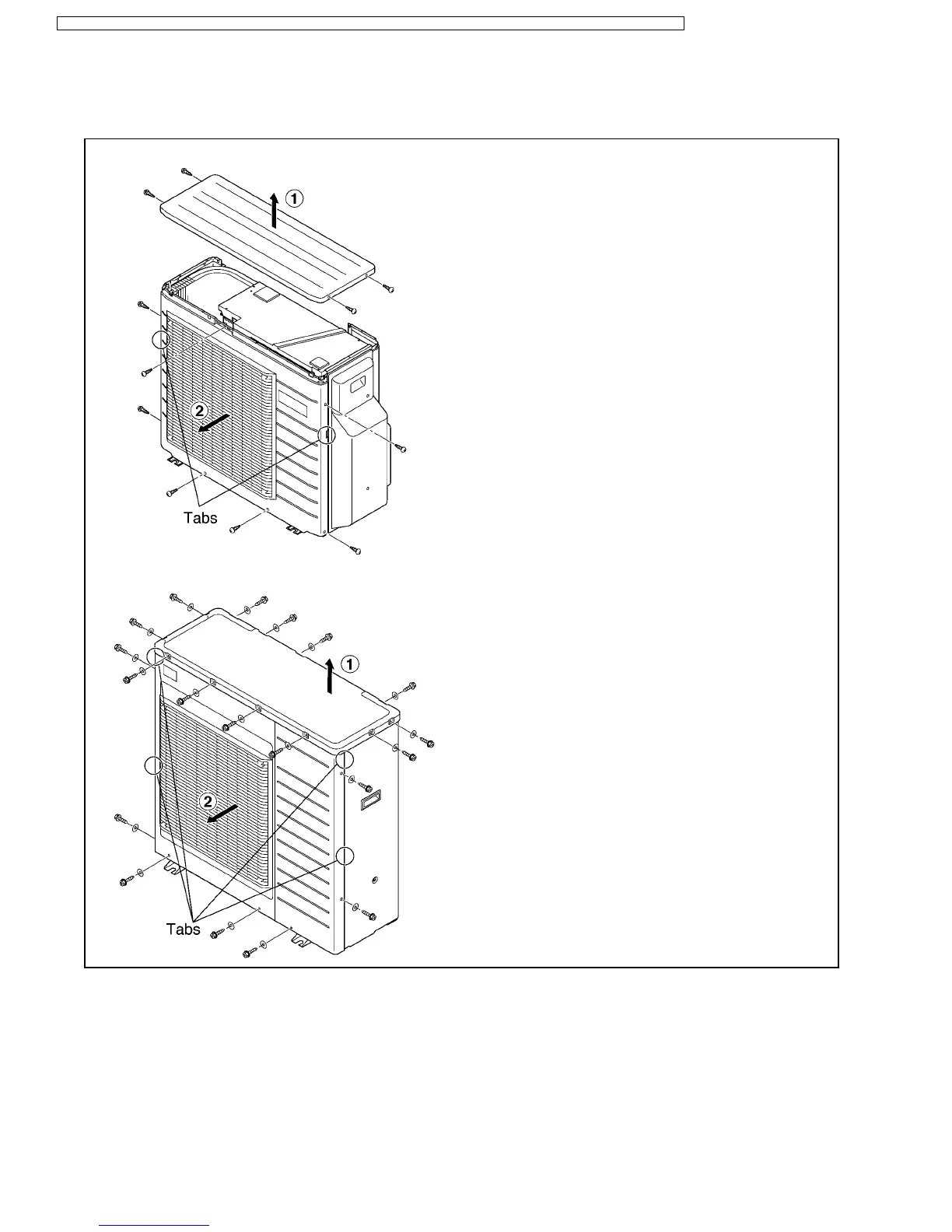

13.3.3.1. Removing the Cabinet Top Plate and Cabinet Front Plate
■
■■
■ CU-3E23CBPG
1. Remove the cabinet top plate (remove the 4 screws).
2. Remove the 3 screws (1 on the right and 2 at the bottom) securing
the cabinet front plate, release the 2 hooks (1 each at the left and
right), and pull the cabinet front plate toward front side.
■
■■
■ CU-4E27CBPG
1. Remove the cabinet top plate (remove the 12 screws).
2. Remove the 7 screws (2 on the each side and 3 at the bottom) fixing
the cabinet front plate, release the 4 hooks (2 each at the left and
right), and pull the cabinet front plate toward front side.
