14 Disassembly and Assembly Instructions
14.1. Indoor Electronic Controllers Removal Procedures

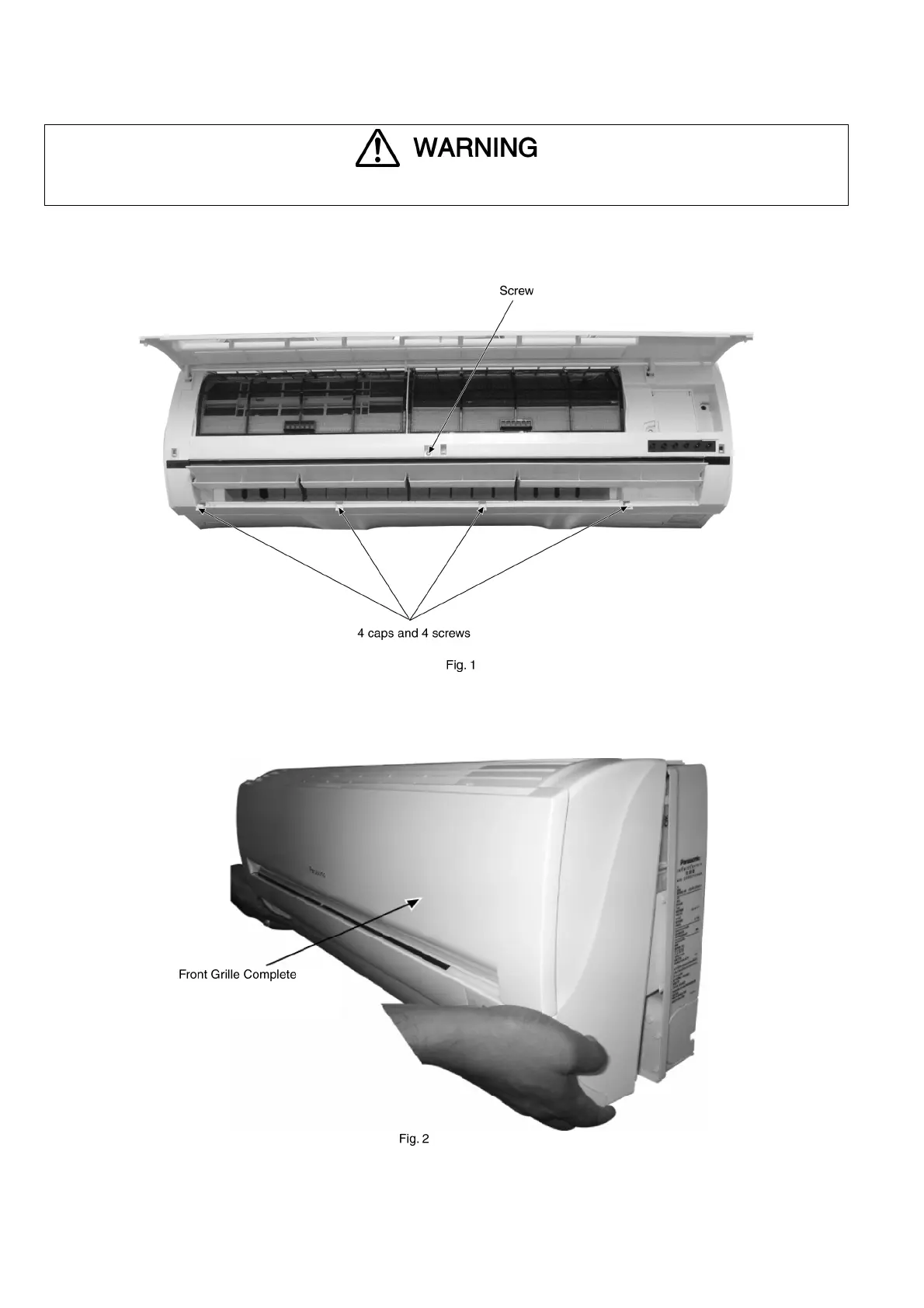

• Remove the screw at the middle of the Front Grille. (Fig. 1)
• Remove 4 caps and 5 screws at the bottom of the Front Grille. (Fig.1)
• Remove the Front Grille Complete. (Fig. 2)
High voltages are generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding
with repair work. Failure to heed this caution may result in electric shocks.
