43

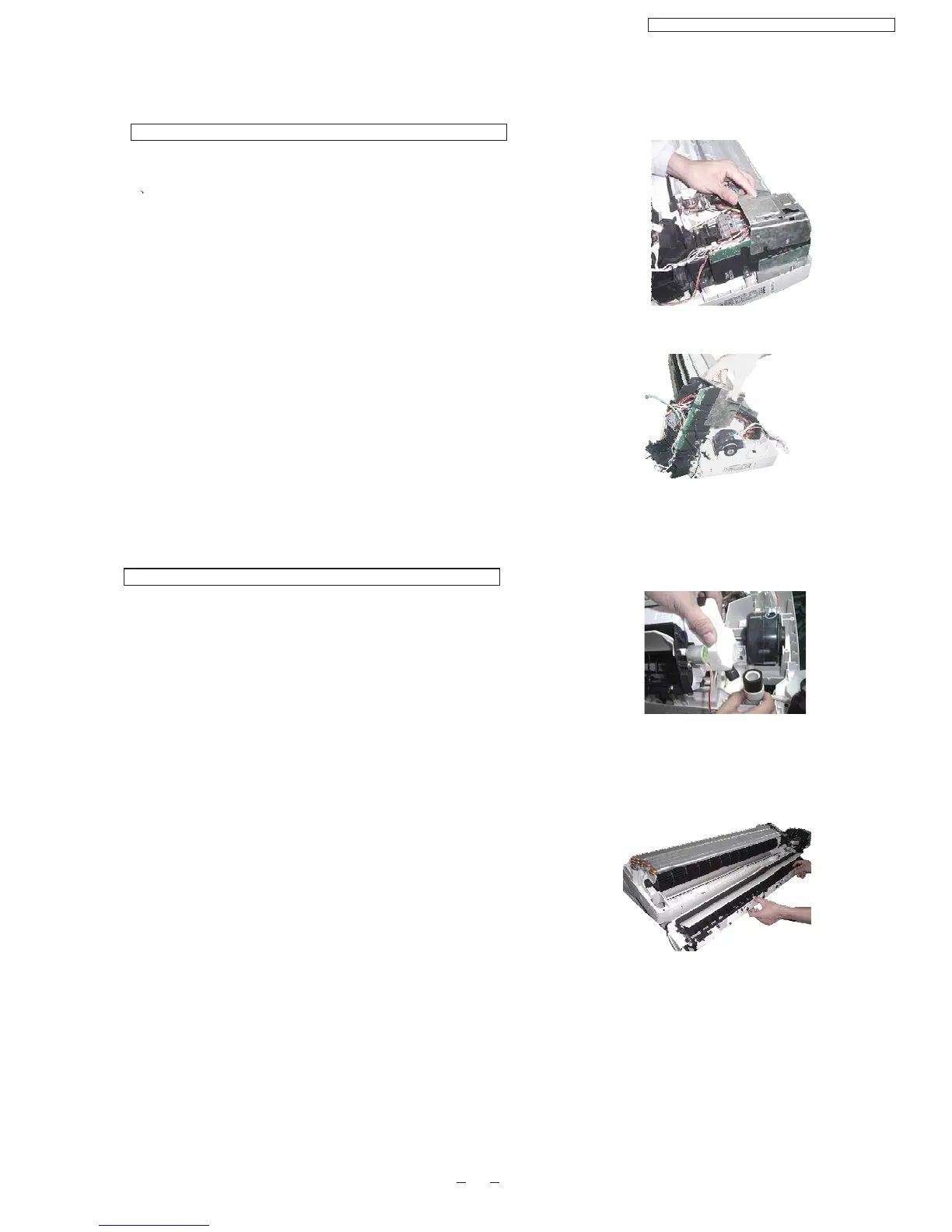

1 Release tabs of the control box cover and detach the control box cover .
Release the fixing screws of the control box. (Fig. 6)
Removal Procedure For Electronic Controller
Fig 6
2. Release the lead wire CN-FM, CN-FB, CN-AIR, CN-STM,CN-RCV ,
CN-DISP and earth wire(Yellow/Green). Pull out the whole electronic
controller.
Fig 7
Removal Procedure For the Discharge Grille
1. Separate the drain hose and the drain plate(Fig. 8)
Fig 8
2. Pull out the discharge grille slightly (Fig. 9)
Fig. 9
CS-PC9DKV / CU- / CS- / CU-PC9DKV PC12DKV PC12DKV
