42
CS-PC9DKV / CU- / CS- / CU-PC9DKV PC12DKV PC12DKV

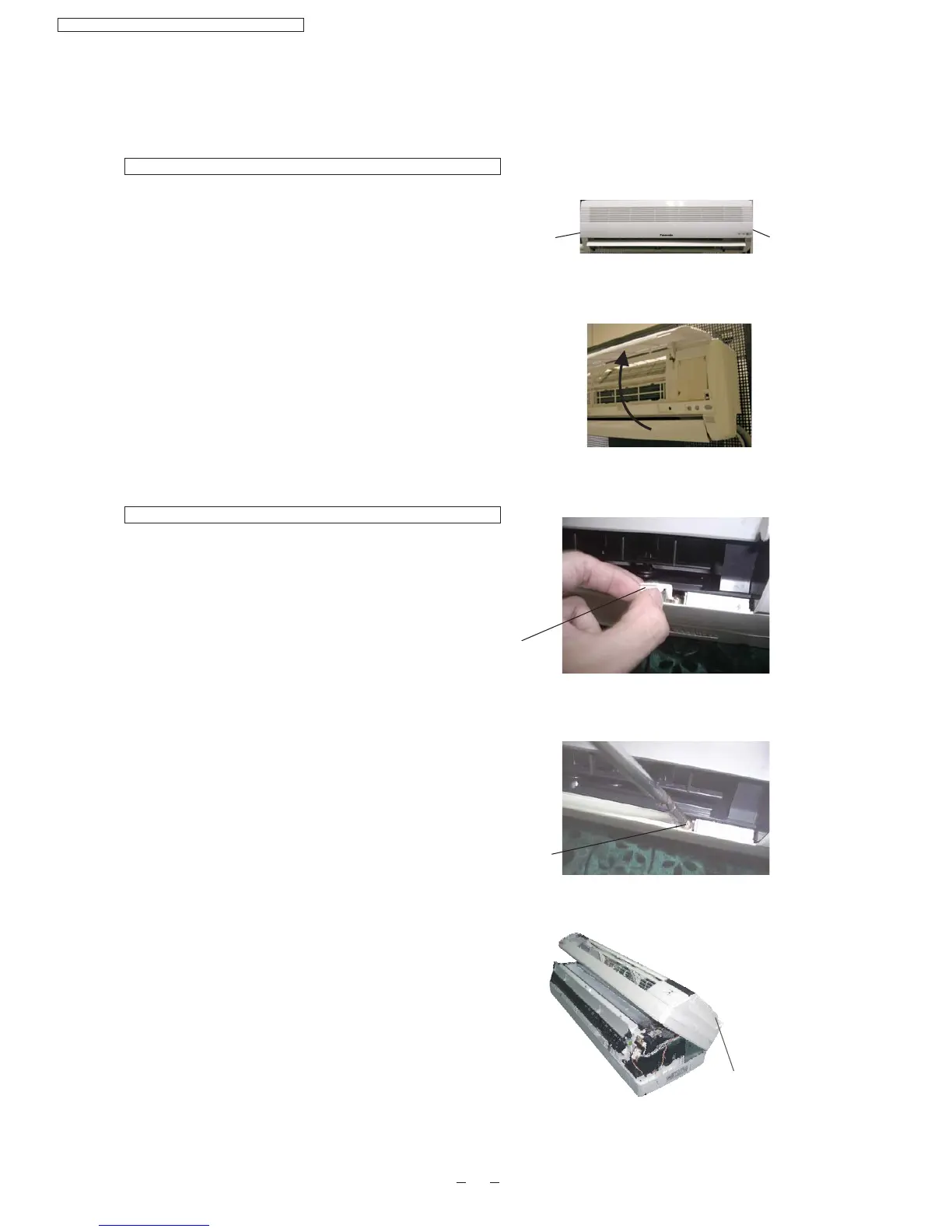

11 Disassembly of the parts
1. Open the intake grille and pull it to the horizontal
position. (Fig. 1)
2. Pull up the intake grille until it falls off.(Fig. 2)
Removal Procedure For Intake Grille
1.Remove the two caps at the discharge port (right and
left) (Fig. 3)
2.Release the two screws under the both caps. (Fig. 4)
Removal Procedure For Front Grille
Cap
Fixing Screw
Fig. 3
Fig. 4
Fig. 2
Fig. 5
Front Grille
3.Pull out the front grille from the unit body. (Fig.5 )
Fig. 1
OpenerOpener
To Next Page
