Panasonic CS-PS36RKV

88
Figure 3 Figure 4
15.1.3 To remove discharge grille
Figure 8
11. Pull out to remove the drain
hose from the discharge grille

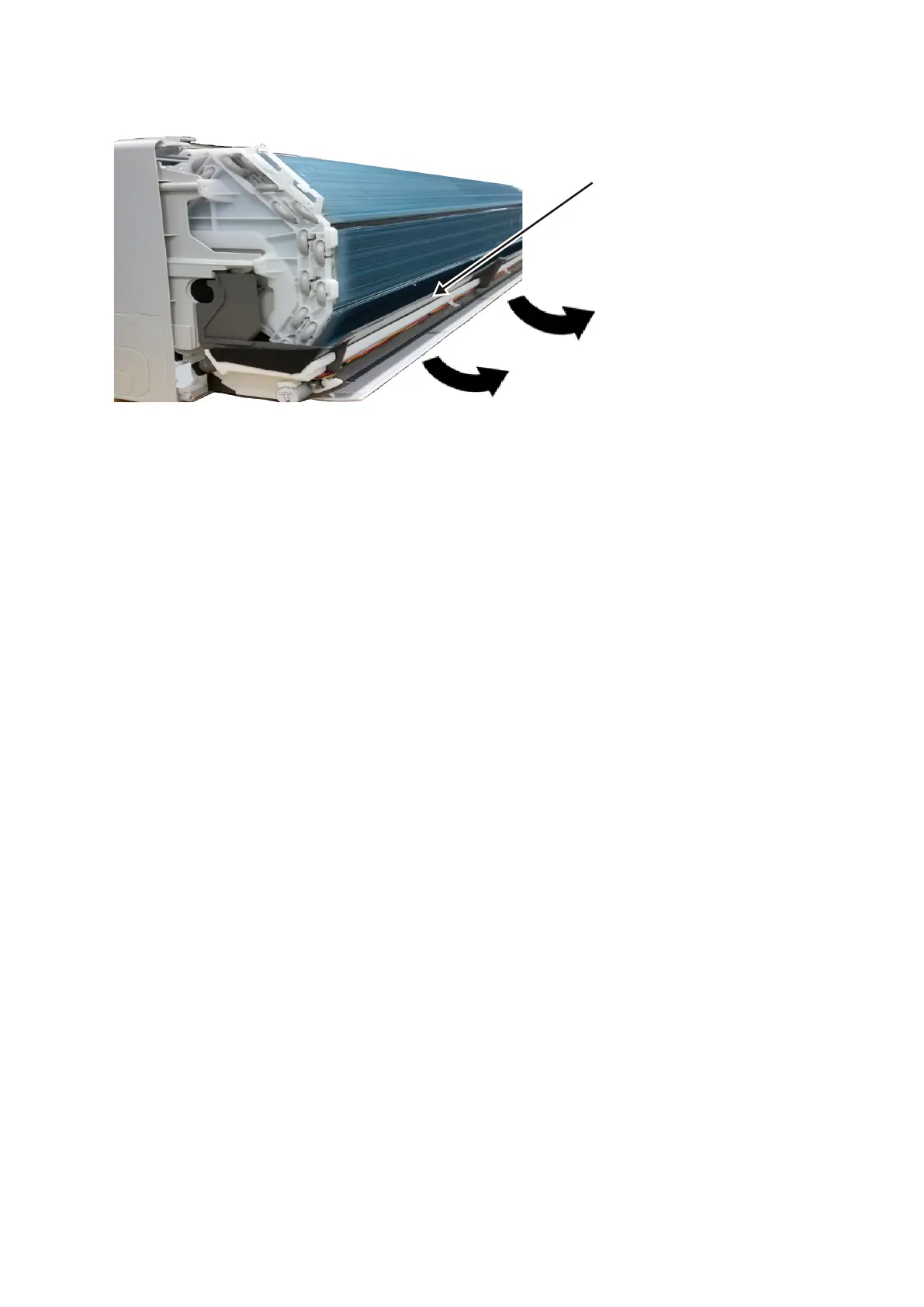

12. Then pull the discharge grille
downward gently to dismantle it
11.Pull out to remove the drain
hose from the discharge grille
12.Then pull the discharge grille
downward gently to dismantle it
Figure 5
Discharge grille
64
