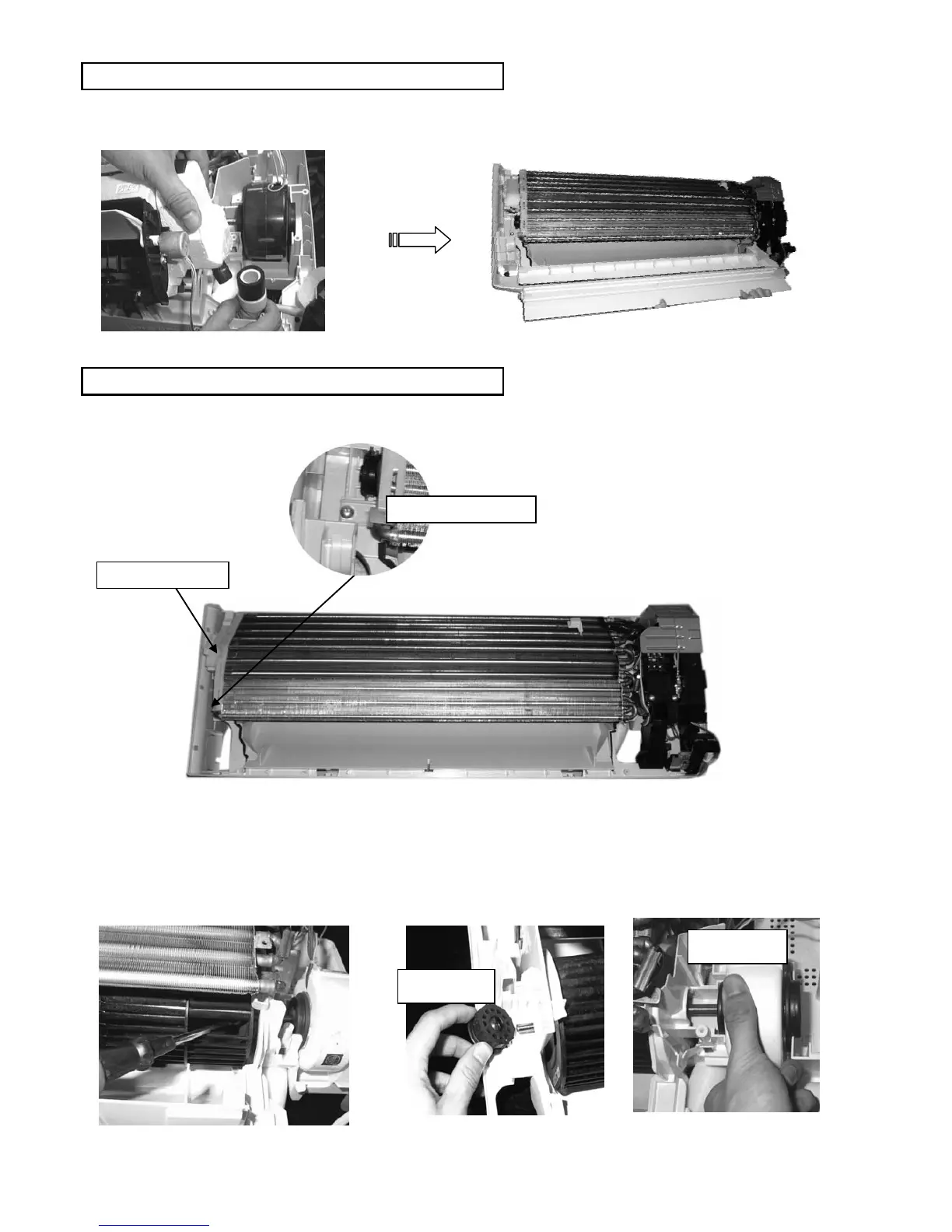

1. Separate the drain hose and the drain plate. 2. Pull out the discharge grille slightly.
1. Release fixing screws on both side, disassembly the fixing board from evaporator on the left side and pull out the
whole evaporator.
2. Loose the fixing screw of the cross flow fan.
3. After removing the bearing, indoor fan can be taken out from the left side
4. Lift up the indoor fan slightly, and then pull the fan motor out.
Removal Procedure for Main Electronic Controlle
r
Removal Procedure for Cross Flow Fan
Fixin
g
Screw
Fixin
g
board
Bearing
Fan motor
