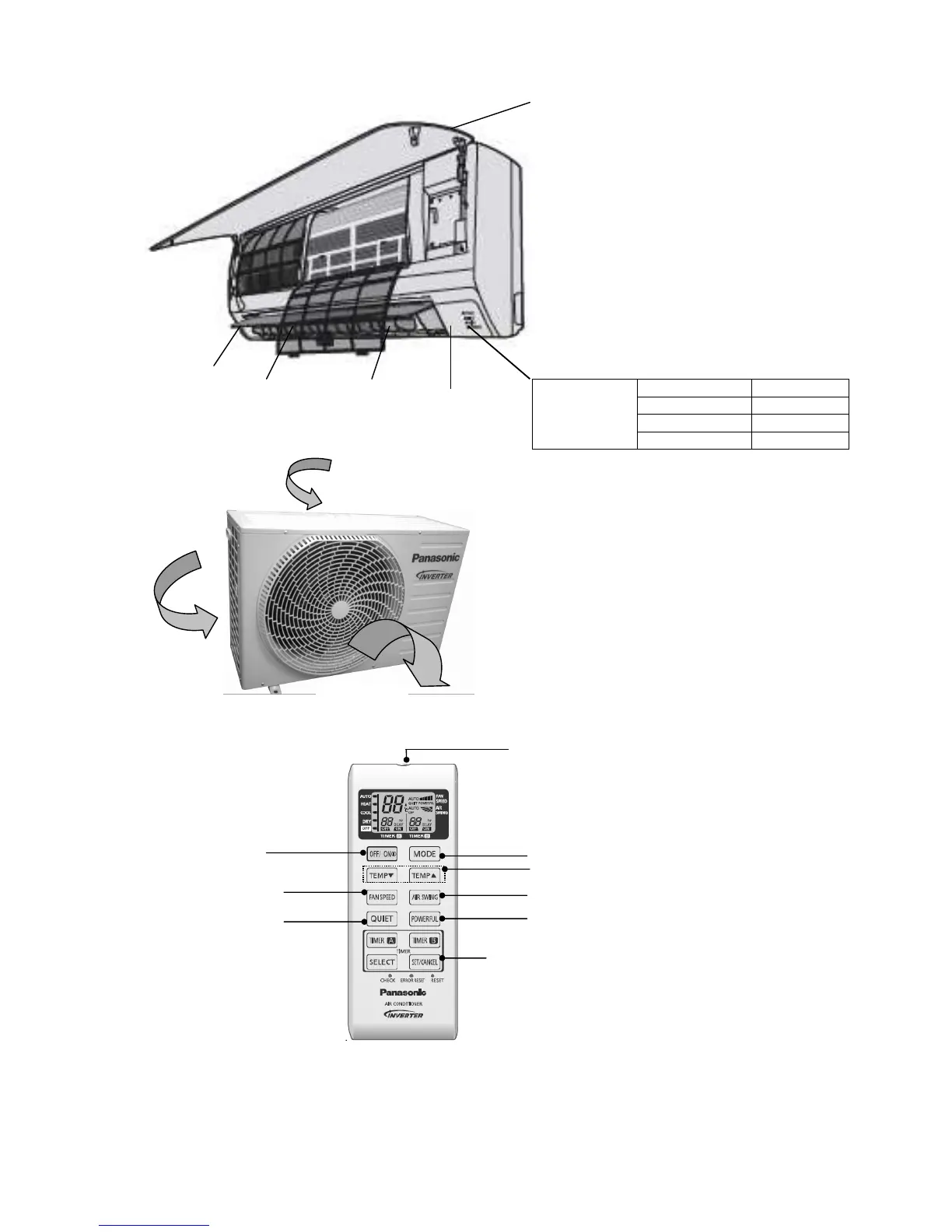

4. Location of Controls and Components
4.1 Indoor Unit
4.2 Outdoor Unit
4.3 Remote Control
 For normal operation, ERROR RESET and CHECK button is not in use.
 Press RESET button to restore the remote control’s default setting.
POWER GREEN
TIMER ORANGE
QUIET GREEN
INDICATOR
POWERFUL RED
Air inlet(side)
Air outlet
Air inlet(rear)
OFF/ON
Temperature setting
Transmitter
Fan speed selection
Front Panel
Air Filter
Vertical airflow
direction louver
Horizontal airflow
direction louver
Receiver
Timer setting
Airflow direction adjustment
Quiet mode
Powerful mode
To select operation mode

Panasonic CS-RE9PKE-3 Specifications

General

Indoor unit type	Wall-mountable
Indoor unit weight	8000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	750 m³/h
Heating airflow (indoor unit)	666 m³/h
Indoor unit dimensions (WxDxH)	848 x 213 x 290 mm
Type	Air conditioner indoor unit
Ionizer	-
Remotely operated	Yes
Refrigerating medium	R410A
Cooling capacity (max)	- BTU/h
Dehumidifying capacity	1.4 l/h
Timer duration (maximum)	12 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3000 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	4100 W
Cooling energy efficiency (EER, W/W)	3.57
Heating energy efficiency (COP, W/W)	4.02
Seasonal efficiency rating (cooling) (SEER)	5.6
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	3.4
Noise level (low speed)	22 dB
Noise level (high speed)	58 dB
Noise level (medium speed)	42 dB
Power requirements	230V, 16A
Annual energy consumption	156 kWh
