11. Operation Control
11.1 Basic Function
11.1.1 Internal Setting Temperature
Once the operation starts, remote control setting temperature will be taken as base value for temperature shifting
processes. These shifting processes are depending on the air conditioner settings and the operation environment.
The final shifted value will be used as internal setting temperature and it is updated continuously whenever the
electrical power is supplied to the unit.
11.1.2 Cooling Operation
11.1.2.1 Thermostat control
• Compressor is OFF when Intake Air Temperature - Internal Setting Temperature < -1.5℃
• Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature >
Compressor OFF point +0.5K.
11.1.3 Soft Dry Operation
11.1.3.1 Thermostat control
• Compressor is OFF when Intake Air Temperature - Internal Setting Temperature < -2.5℃

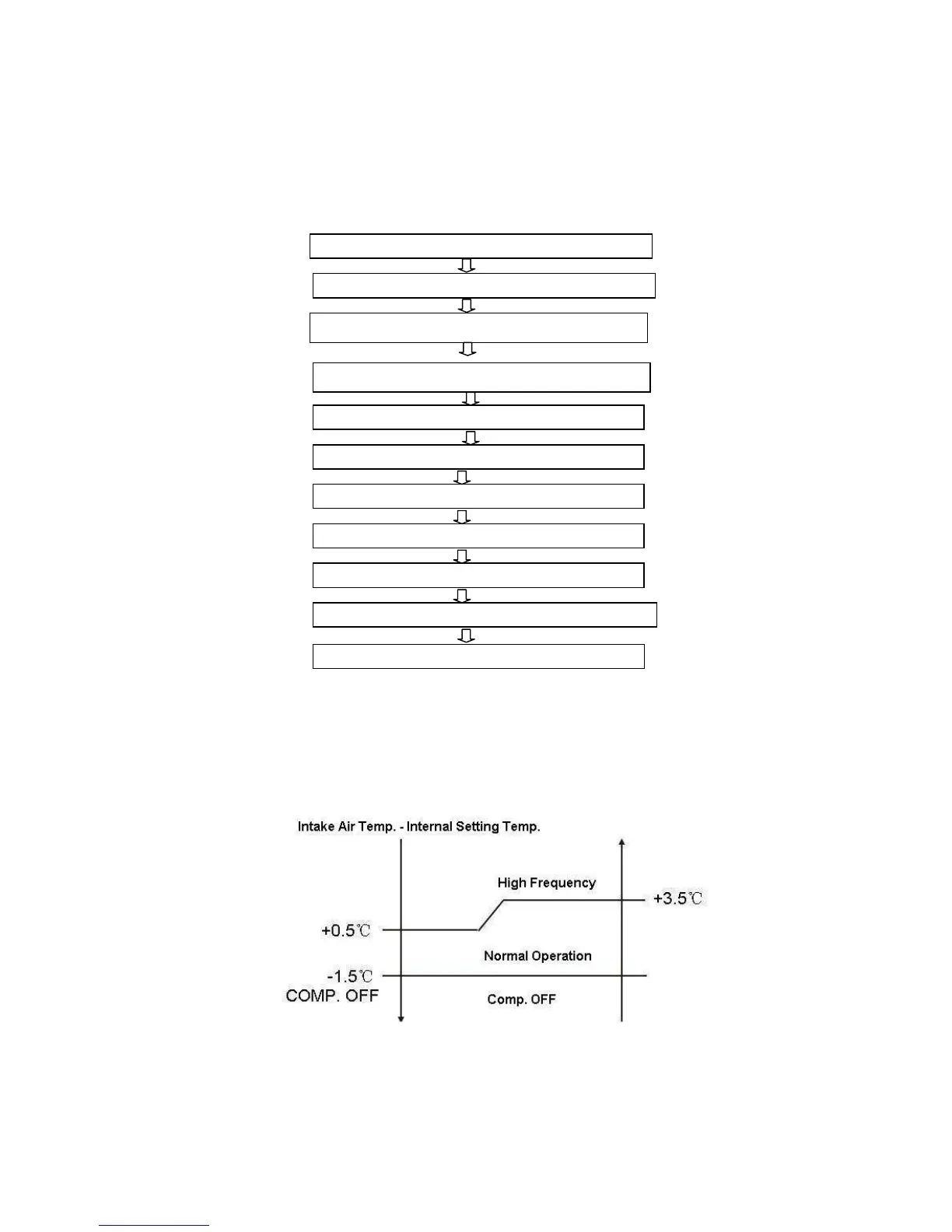

Remo
te Control Setting Temp. (16
℃
~30
℃
)
Auto operation Mode Shifting
Powerful Temperature Shifting
Setting Temperature Limit Checking( Min:16
℃
; Max.:30
℃
)
Setting Temperature Limit Checking( Min:16
; Ma℃
x.
:33 )℃
Internal Setting Temperature
Fan speed S
hifting
Dry mode Shifting
Operating
Shifting
Cooling/Heating Shifting
Outdoor Temperature Shifting

Panasonic CS-RE9PKE-3 Specifications

General

Indoor unit type	Wall-mountable
Indoor unit weight	8000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	750 m³/h
Heating airflow (indoor unit)	666 m³/h
Indoor unit dimensions (WxDxH)	848 x 213 x 290 mm
Type	Air conditioner indoor unit
Ionizer	-
Remotely operated	Yes
Refrigerating medium	R410A
Cooling capacity (max)	- BTU/h
Dehumidifying capacity	1.4 l/h
Timer duration (maximum)	12 h
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (max)	3000 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	4100 W
Cooling energy efficiency (EER, W/W)	3.57
Heating energy efficiency (COP, W/W)	4.02
Seasonal efficiency rating (cooling) (SEER)	5.6
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	3.4
Noise level (low speed)	22 dB
Noise level (high speed)	58 dB
Noise level (medium speed)	42 dB
Power requirements	230V, 16A
Annual energy consumption	156 kWh
