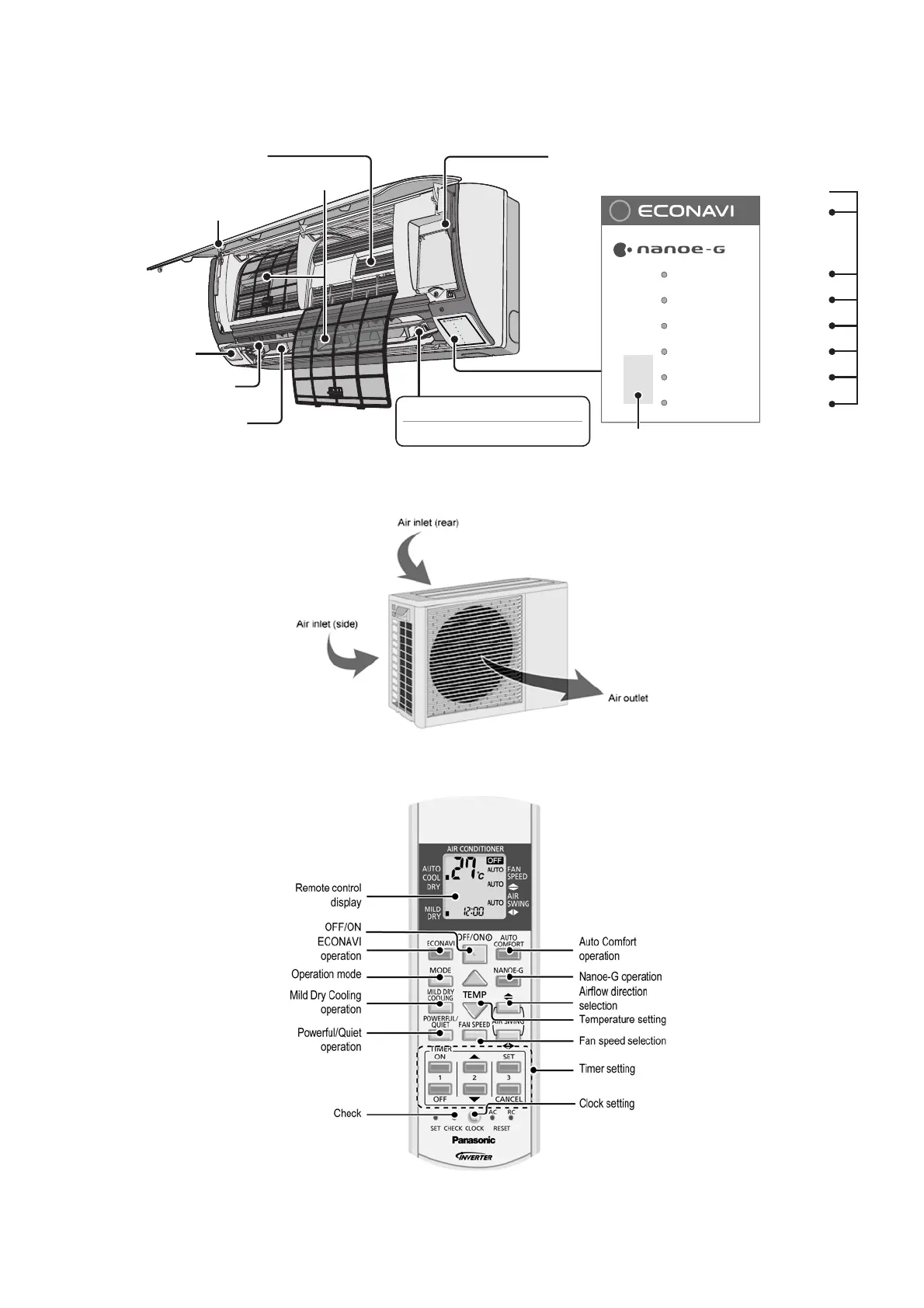

3. Location of Controls and Components
3.1 Indoor Unit
Human Activity Sensor
A
luminium Fin
Front panel
V
ertical airflow direction louver
• Do not adjust by hand.
Auto OFF/ON button
• Use when remote control is misplaced or a malfunction occurs
Horizontal airflow direction louver
• Do not adjust by hand.
P
O
W
E
R
T
I
M
E
R
A
U
T
O
C
O
M
F
O
R
T
N
A
N
O
E
-
G
P
O
W
ER
F
U
L
Q
U
I
E
T
Air Filters
nanoe-G GENERATOR
• Do not touch during operation.
Indicator
(Green)
(Green)
(Orange)
(Green)
(Blue)
(Orange)
(Green)
POWER
TIMER
AUTO COMFORT
NANOE-G
POWERFUL
QUIET
Sunlight sensor and remote control receiver
