Fig. 4
  −

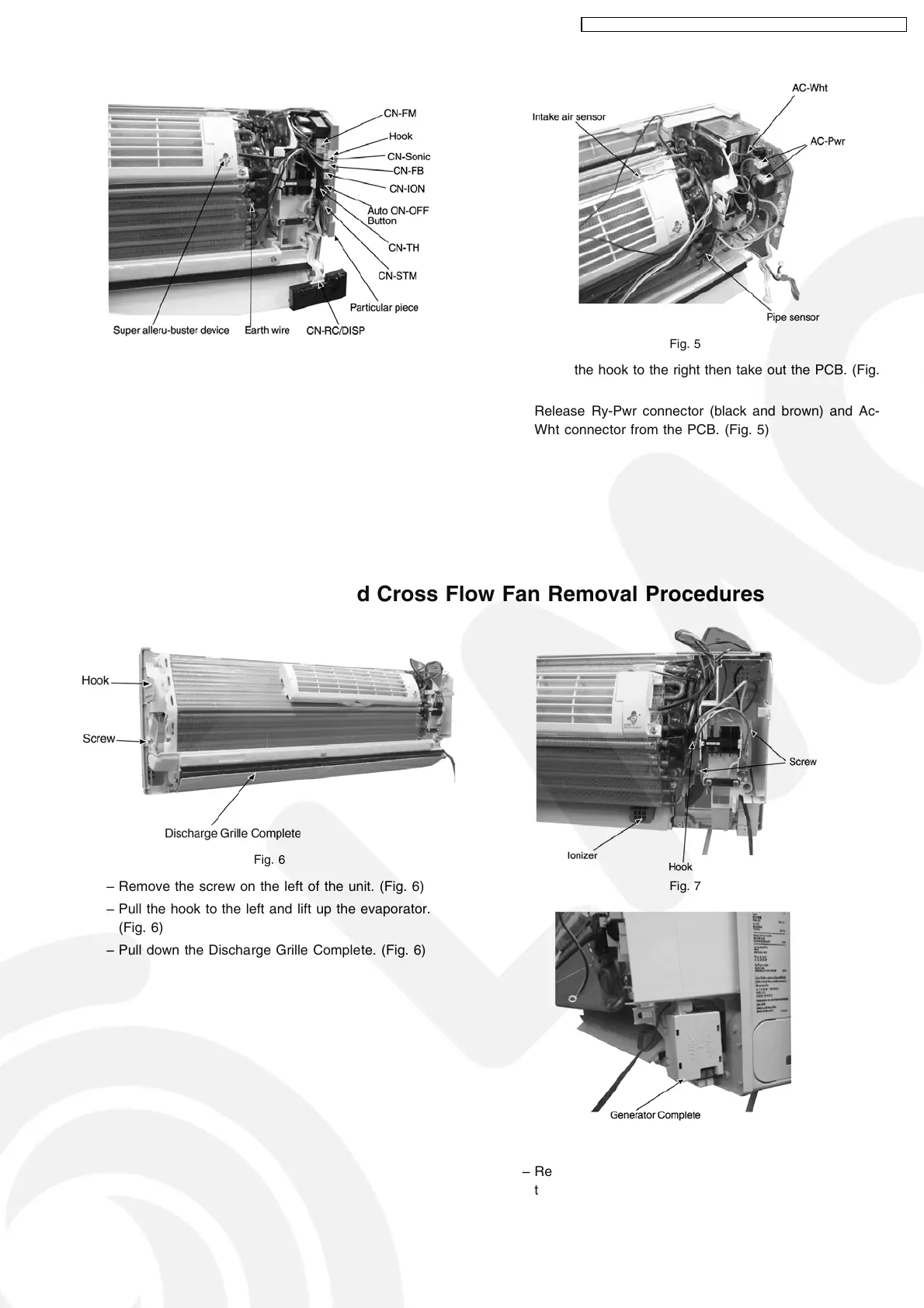

To remove the electronic controller.
  −
Release CN-FM connectors. (Fig. 4)
  −
Release CN-Sonic connector. (Fig. 4)
  −
Release CN-FB connector. (Fig. 4)
  −
Release CN-ION connector. (Fig. 4)
  −
Release CN-TH connector. (Fig. 4)
  −
Release CN-STM connector. (Fig. 4)
  −
Release CN-REC/DISP connector. (Fig. 4)
  •
Remove Control Board Cover
Fig. 6
  −
Remove the screw on the left of the unit. (Fig. 6)
  −
Pull the hook to the left and lift up the evaporator.
(Fig. 6)
  −
Pull down the Discharge Grille Complete. (Fig. 6)
Fig. 5
  −
Press the hook to the right then take out the PCB. (Fig.
5)
  −
Release Ry-Pwr connector (black and brown) and Ac-
Wht connector from the PCB. (Fig. 5)
Fig. 7
Fig. 8
  −
Remove indoor pipe sensor and air intake sensor from
the evaporator. (Fig. 7)
  −
Remove the earth wire from the evaporator. (Fig. 7)
