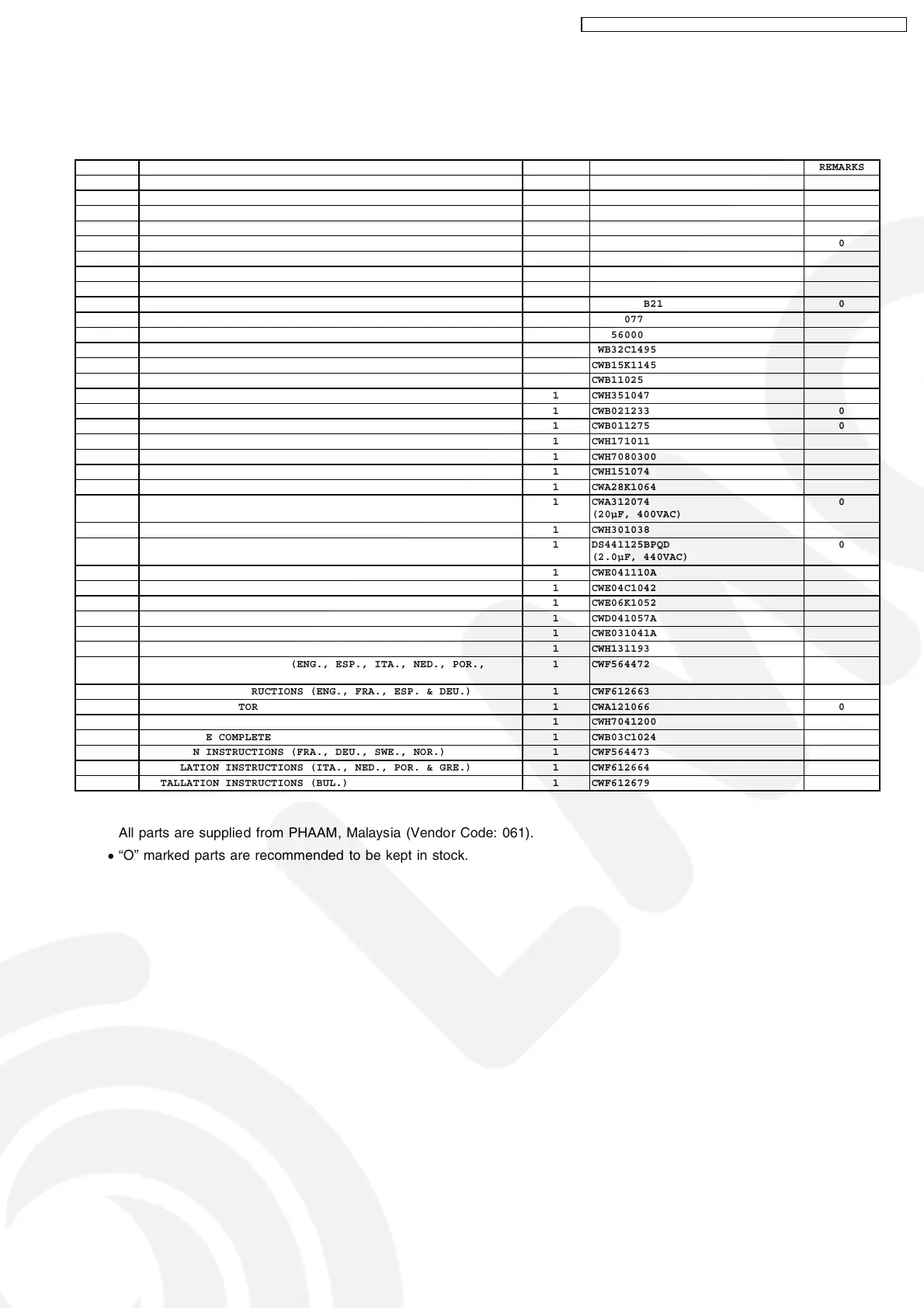

18 Replacement Parts List (Outdoor Unit)
18.1. CU-V7DKE
REF. NO. PART NAME & DESCRIPTION QTY. CU-V7DKE REMARKS
1 CHASSY ASS’Y 1 CWD50K2107
2 SOUND PROOF MATERIAL 1 CWG302292
3 FAN MOTOR BRACKET 1 CWD541074
4 SCREW - FAN MOTOR BRACKET 2 CWH551060
5 FAN MOTOR 1 CWA951392 0
6 SCREW - FAN MOTOR MOUNT 3 CWH55406
7 PROPELLER FAN ASS’Y 1 CWH03K1020
8 NUT - PROPELLER FAN 1 CWH56053
9 COMPRESSOR 1 5RS084DAB21 0
10 ANTI - VIBRATION BUSHING 3 CWH50077
11 NUT - COMPRESSOR MOUNT 3 CWH56000
12 CONDENSER 1 CWB32C1495
13 CAPILLARY TUBE ASS’Y 1 CWB15K1145
14 STRAINER 1 CWB11025
15 HOLDER COUPLING ASS’Y 1 CWH351047
16 2-WAY VALVE (LIQUID) 1 CWB021233 0
17 3-WAY VALVE (GAS) 1 CWB011275 0
18 TERMINAL COVER 1 CWH171011
19 NUT - TERMINAL COVER 1 CWH7080300
20 SOUND PROOF BOARD 1 CWH151074
22 TERMINAL BOARD ASS’Y 1 CWA28K1064
23 CAPACITOR - COMPRESSOR 1 CWA312074
(20µF, 400VAC)
0
24 HOLDER CAPACITOR 1 CWH301038
25 CAPACITOR - FAN MOTOR 1 DS441125BPQD
(2.0µF, 440VAC)
0
26 CABINET SIDE PLATE (L) 1 CWE041110A
27 CABINET SIDE PLATE (R) 1 CWE04C1042
28 CABINET FRONT PLATE 1 CWE06K1052
29 WIRE NET 1 CWD041057A
30 CABINET TOP PLATE 1 CWE031041A
32 CONTROL BOARD COVER 1 CWH131193
34 OPERATION INSTRUCTIONS (ENG., ESP., ITA., NED., POR.,
GRE., BUL.)
1 CWF564472
35 INSTALLATION INSTRUCTIONS (ENG., FRA., ESP. & DEU.) 1 CWF612663
36 OVERLOAD PROTECTOR 1 CWA121066 0
37 HOLDER O.L.P. 1 CWH7041200
38 CHECK VALVE COMPLETE 1 CWB03C1024
39 OPERATION INSTRUCTIONS (FRA., DEU., SWE., NOR.) 1 CWF564473
40 INSTALLATION INSTRUCTIONS (ITA., NED., POR. & GRE.) 1 CWF612664
41 INSTALLATION INSTRUCTIONS (BUL.) 1 CWF612679
(Note)
• All parts are supplied from PHAAM, Malaysia (Vendor Code: 061).
• “O” marked parts are recommended to be kept in stock.
69
CS-V7DKE CU-V7DKE / CS-V9DKE CU-V9DKE / CS-V12DKE CU-V12DKE
