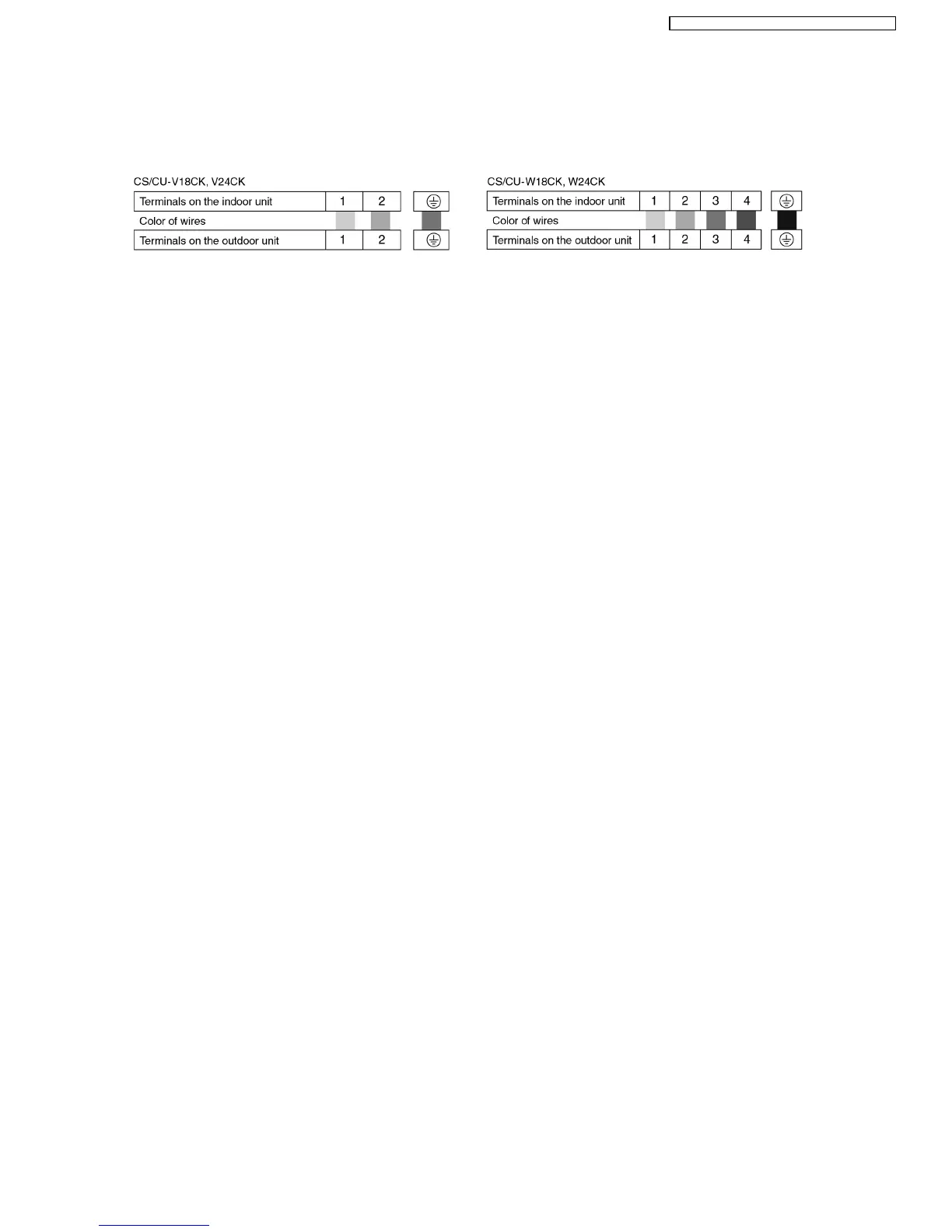

10.3.5. CONNECT THE CABLE TO THE OUTDOOR UNIT
1. Remove the control board cover from the unit by loosening the screw.
2. Connecting cable between indoor unit and outdoor unit shall be approved polychloroprene sheathed 3 × 2.5 mm
2
(V18CK,
V24CK) or 5 × 2.5 mm
2
(W18CK, W24CK) flexible cord, type designation 245 IEC 57 or heavier cord.
3. Secure the cable onto the control board with the holder (clamper).
4. Attach the control board cover back to the original position with the screw.
51
CS-W18CKE CU-W18CKE / CS-W24CKE CU-W24CKE
