158

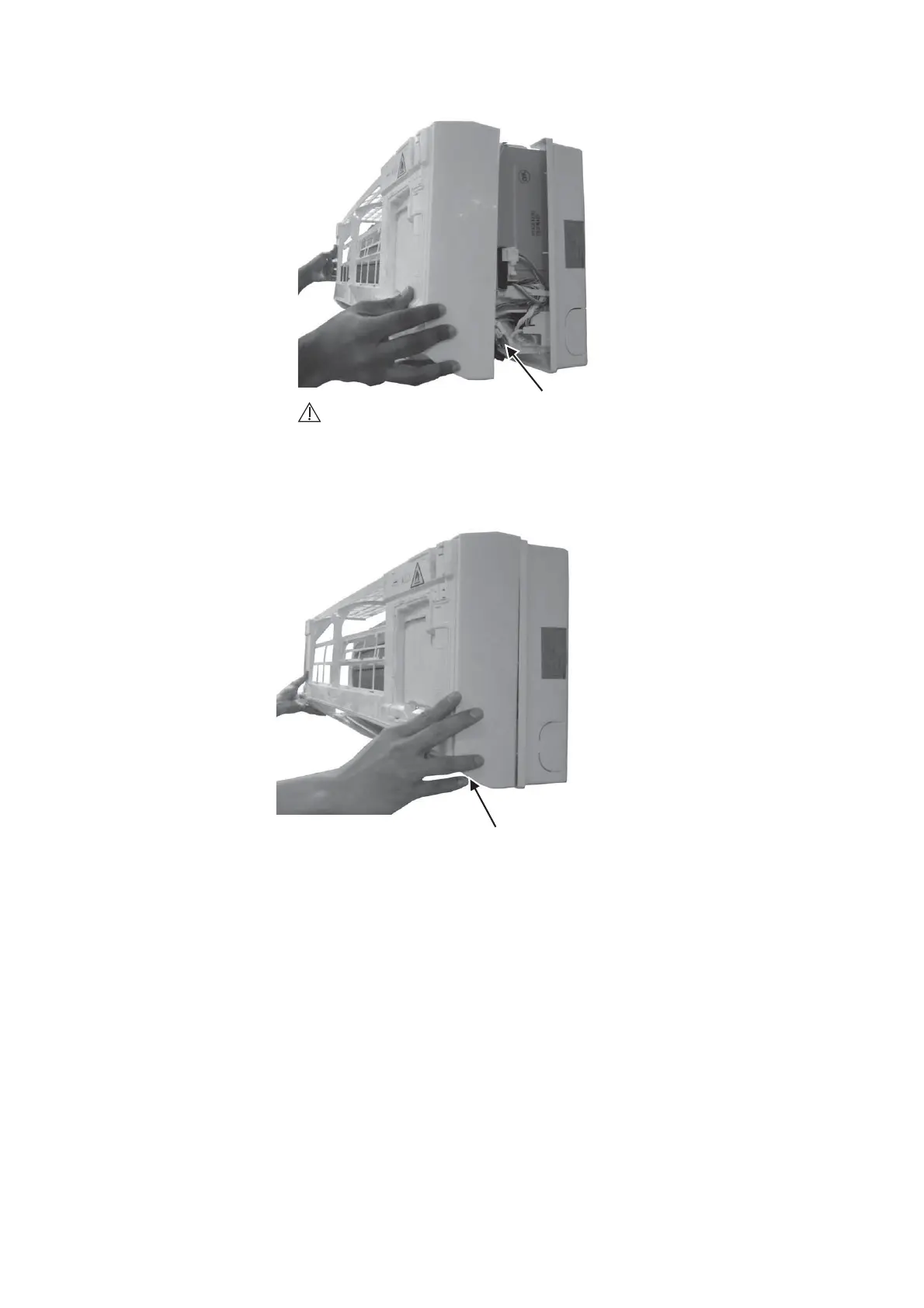

18.2.1.7 To Assemble the Front Grille
Do not directly fix the front grille
complete, to avoid hitting the
Receiver PCB.
CAUTION
Receiver PCB
Figure 12
21. Gently assemble the right side of the
front grille first then fix the left side.
Figure 13
