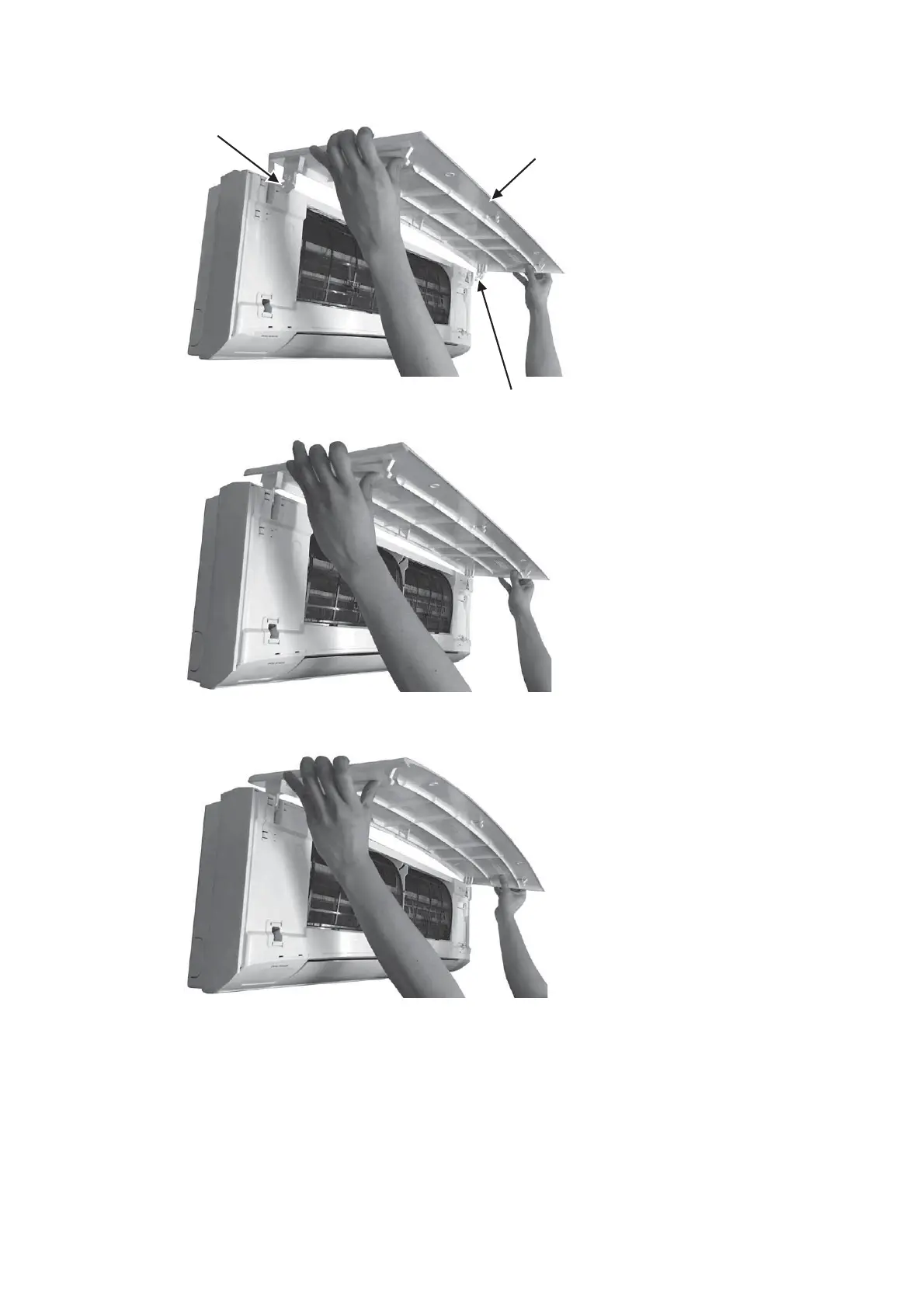

18.2.1.8 To Assemble the Intake Grille
22. Align the intake grille
hooks into the slot.
23. Place in the hook to the slot.
24. Then slightly bend the intake grille
and push in the hooks into the slot.
Hook
Intake Grille
Hook
Figure 14
