Panasonic CT-1388YD

-14-
Main components location

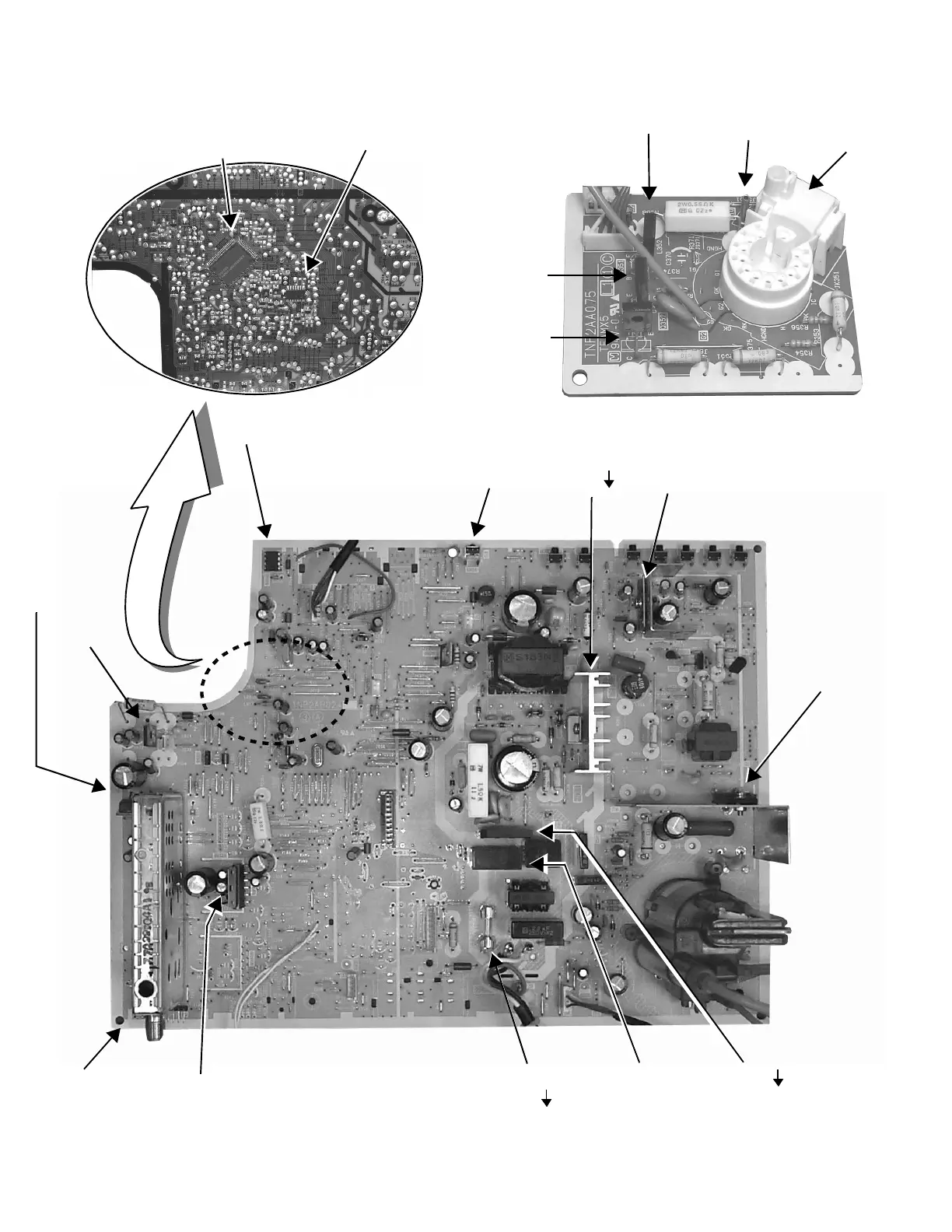

Figure 9. A-Board view (may vary depending on model)
IC451
Vertical out
IC003
Remote sensor
MPU/VCJ
IC001
IC050
HALF TONE
CRT
Socket
GROUND
Q351
Q352
Q353
IC002
EEPROM
IC552
5V REG
IC551
9V REG
IC801
VCO( )
H.OUT
RELAY
RL801
RED OUT
GREEN OUT
BLUE OUT
TNR001
TUNER
IC2302
AUDIO AMP (L)
F801
FUSE( )
6.3A, 125/250V
D801( )
Rect. bridge
