Panasonic CU-C7BKP6 - 7 Wiring Diagram; Power Supply Cord and Destination; Resistance of Indoor Fan Motor Windings; Resistance of Outdoor Fan Motor Windings

REMARKS
B : BLUE
BR :BROWN
BL : BLACK
GRY :GRAY
O : ORANGE
P : PINK
R : RED
W : WHITE
Y/G : YELLOW/GREEN
Power Supply Cord Destination
• Europe
• Panama
• Oceania
• Turkey
• Argentina
• USA
• Canada
Resistance of Indoor Fan Motor Windings
MODEL CS-C7BK
CS-C9BK
CS-C12BK
CONNECTION CWA921060
BLUE-YELLOW 371.0 Ω
YELLOW-RED 386.6 Ω
Note: Resistance at 20°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings
MODEL CU-C7BK
CU-C9BK
CU-C12BK
CONNECTION CWA951088 CWA951089
BLUE-YELLOW 217.3 Ω 195.9 Ω
YELLOW-RED 198.5 Ω 206.6 Ω
MODEL CU-C9BK
CU-C12BK
CONNECTION CWA951128
BLUE-YELLOW 210.7 Ω
YELLOW-RED 196.5 Ω
Note: Resistance at 20°C of ambient temperature.
Resistance of Compressor Windings
MODEL CU-C7BK
CONNECTION 2RS110D5DA04
C-R 5.382 Ω
C-S 5.328 Ω
Note: Resistance at 20°C of ambient temperature.
MODEL CU-C9BK
CONNECTION 2PS146D3AA04 2R13C236BSC
C-R 3.941 Ω 3.298 Ω
C-S 3.499 Ω 5.500 Ω
Note: Resistance at 20°C of ambient temperature.
MODEL CU-C12BK
CONNECTION QJ208PAA 2P19S236A1L
C-R(Main) 3.31 Ω 2.237 Ω
C-S(Sub) 4.72 Ω 2.710 Ω
Note: Resistance at 25°C/20°C of ambient temperature.

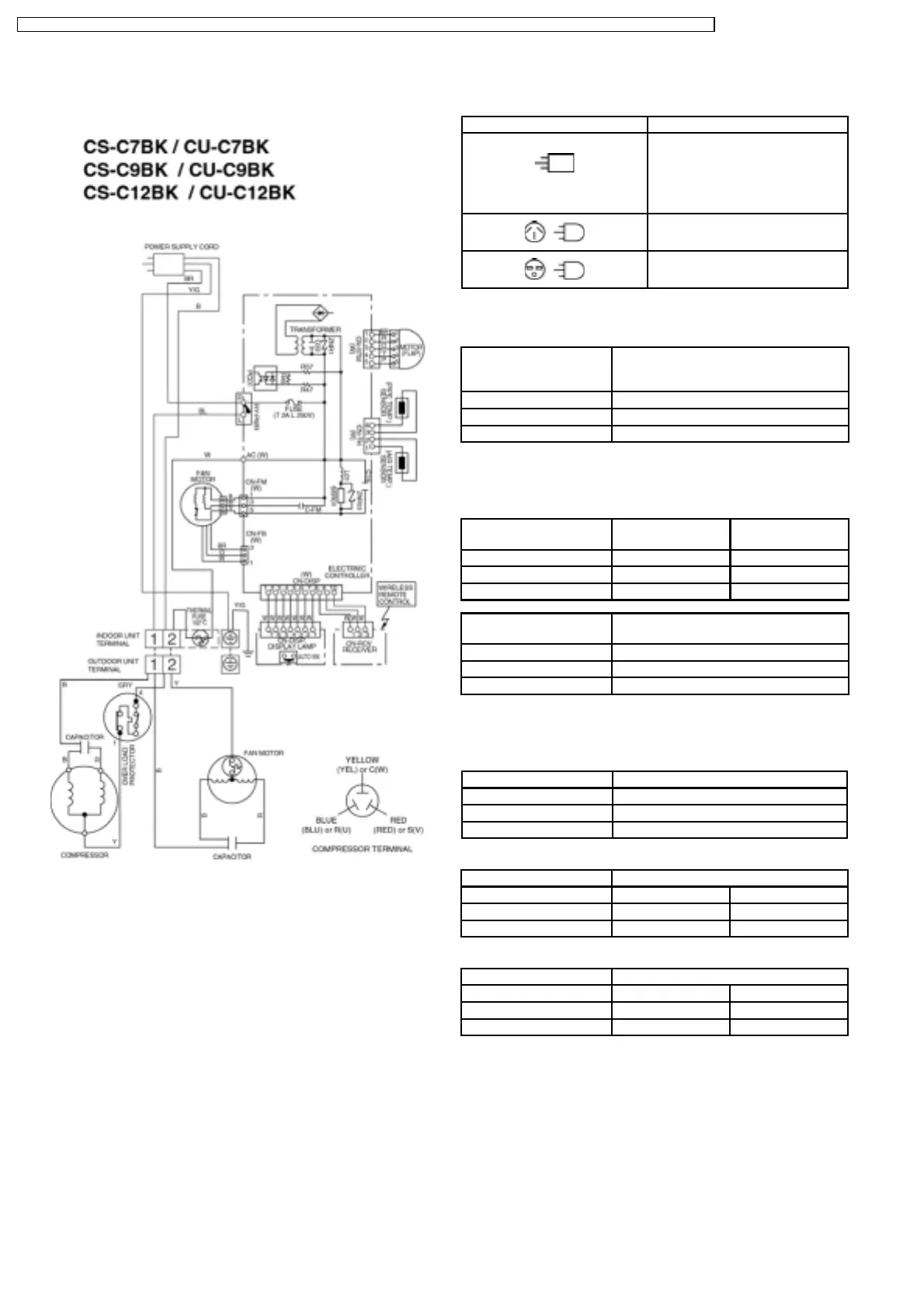

7 Wiring Diagram
20
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6
