Panasonic CU-C7BKP6 - 17 Exploded View

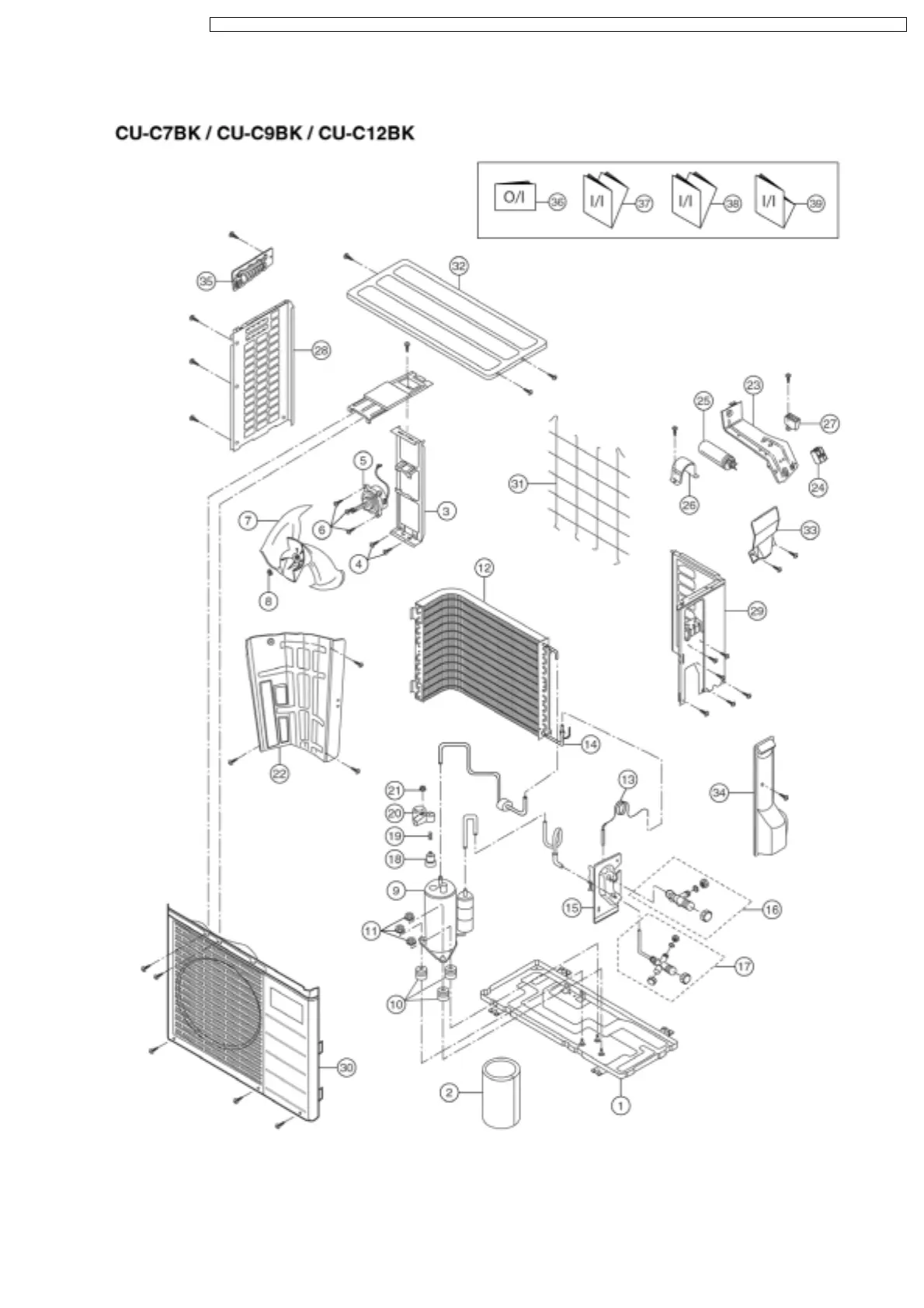

17 Exploded View
Note:
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
71
CS-C7BKP CU-C7BKP5 / CS-C7BKP CU-C7BKP6 / CS-C9BKP CU-C9BKP5 / CS-C9BKP CU-C9BKP6 / CS-C12BKP CU-C12BKP5 / CS-C12BKP CU-C12BKP6
