Panasonic CU-MC180KE - CS-MC90 KE; CU-MC180 KE Block Diagram

– 15 –
MAC9702008C2
CS-MC90KE

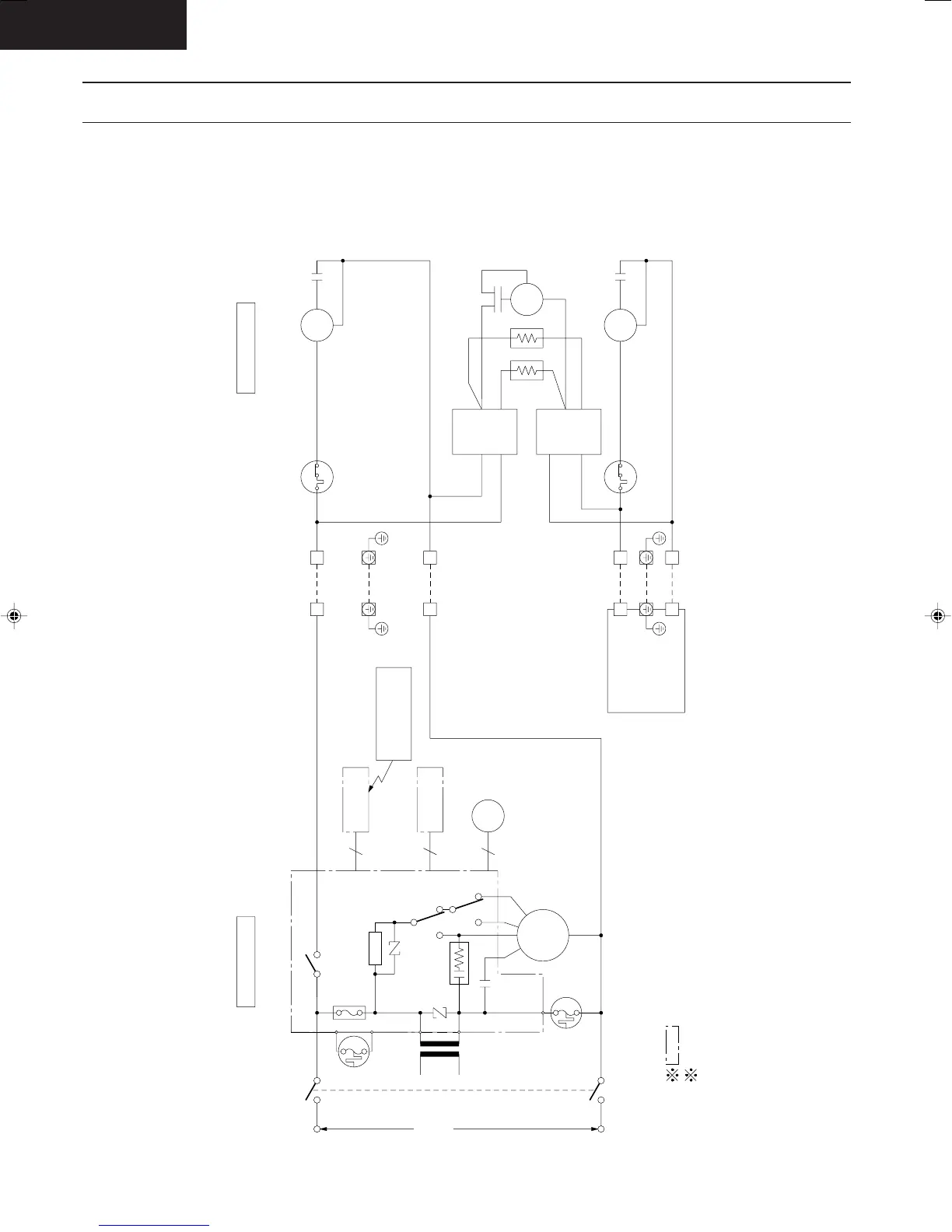

Block Diagram
CS-MC90KE / CU-MC180KE
22 11
3C
"C"
FUSE 3.15A
RY-C
RECEIVER P.C.B.
SINGLE PHASE
220-240V ~
50Hz
RY-H
TRANS- FORMER
THERMAL
FUSE
(99°C)
(102°C)
FUSE
THERMAL
ZNR1
FAN
MOTOR
POWER SWITCH
ELECTRONIC CONTROLLER
Indicates the electronic control unit.
Indicates the number of core wires. (Example:6C=6 core wires).
9740312
RY-M
P.C.B. INDICATOR
4C
5C
STEPPING MOTOR
INDOOR UNIT OUTDOOR UNIT
WIRELESS
REMOTE CONTROL
TRANSMITTER
ZNR2
SSR
MAIN
CS-MC90KE/CU-MC140KE
A-006.DWG
CR1
INDOOR UNIT A
COMPRESSOR
A
RELAY
RELAY
FAN MOTOR
22
11
COMPRESSOR
B
OLP OLP
INDOOR UNIT B
SAME AS
UNIT A
C-COMP C-COMP
C-FM
