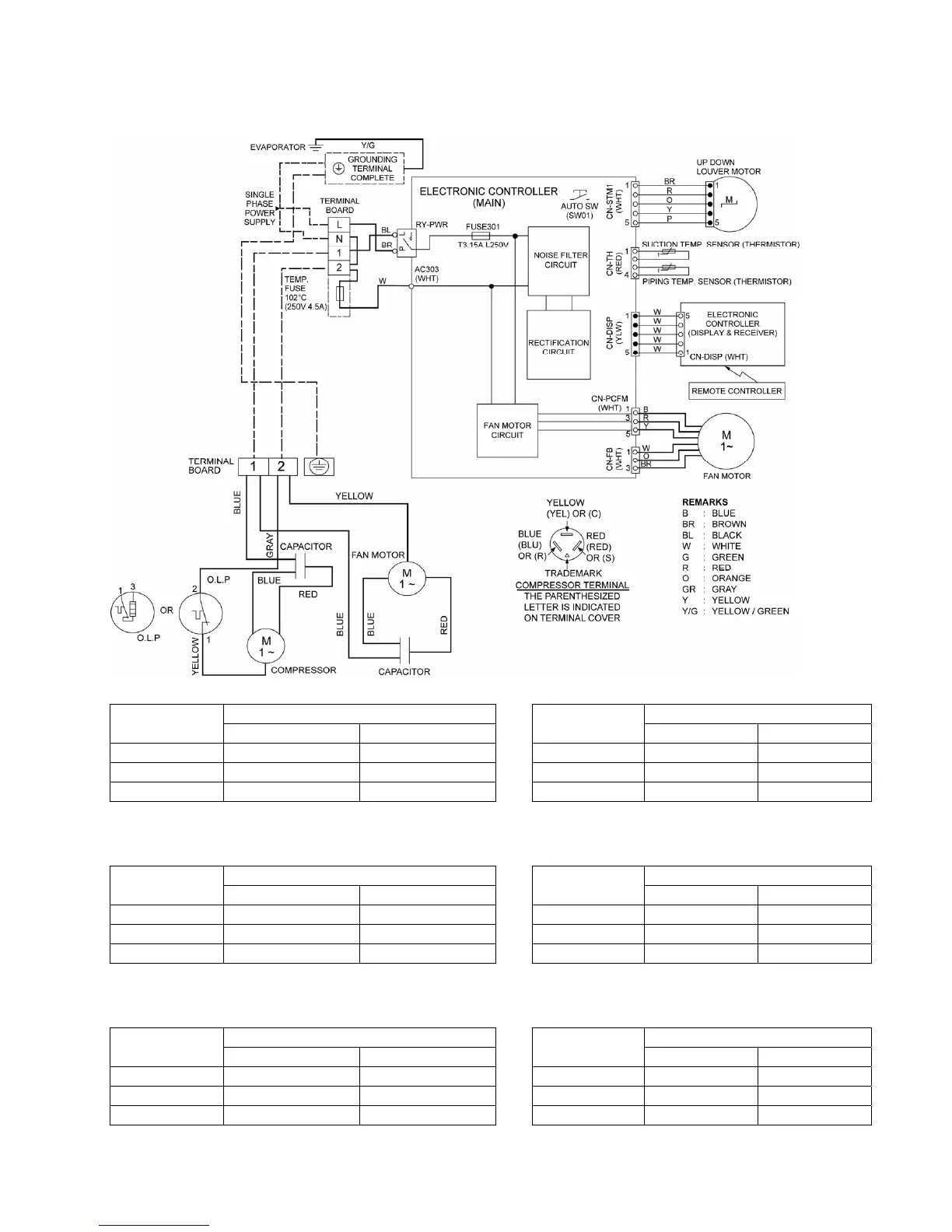

8. Wiring Connection Diagram
8.1 CS-PC9QKH CU-PC9QKH CS-PC12QKH CU-PC12QKH
Resistance of Indoor Fan Motor Windings Resistance of Indoor Fan Motor Windings
CS-PC9QKH CS-PC12QKH
MODEL
Others/S. E. Asia Myanmar
MODEL
Others/S. E. Asia Myanmar
CONNECTION CWA921562 CWA921559 CONNECTION CWA921561 CWA921559
BLUE-YELLOW 357 Ω 366 Ω BLUE-YELLOW 336 Ω 366 Ω
YELLOW-RED 363 Ω 338 Ω YELLOW-RED 306 Ω 338 Ω
Note: Resistance at 20°C of ambient temperature. Note: Resistance at 20°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings Resistance of Outdoor Fan Motor Windings
CU-PC9QKH CU-PC12QKH
MODEL
Others/S. E. Asia Myanmar
MODEL
Others/S. E. Asia Myanmar
CONNECTION CWA951852 CWA951673 CONNECTION CWA951852 CWA951673
BLUE-YELLOW 331 Ω 318 Ω BLUE-YELLOW 331 Ω 318 Ω
YELLOW-RED 320 Ω 272 Ω YELLOW-RED 320 Ω 272 Ω
Note: Resistance at 20°C of ambient temperature. Note: Resistance at 20°C of ambient temperature.
Resistance of Compressor Windings Resistance of Compressor Windings
CU-PC9QKH CU-PC12QKH
MODEL
Others/S. E. Asia Myanmar
MODEL
Others/S. E. Asia Myanmar
CONNECTION 2PS146D3BA06 2PS156D3AA06 CONNECTION 2PS192D3BA06 2PS206D3BA06
C-R 5.091 Ω 4.032 Ω C-R 4.673 Ω 3.196 Ω
C-S 5.382 Ω 5.006 Ω C-S 4.895 Ω 5.277 Ω
Note: Resistance at 20°C of ambient temperature. Note: Resistance at 20°C of ambient temperature.
