Panasonic CU-PE12DKE - Replacement Parts List

No. DESCRIPTION&NAME Q'ty
CU-PE9DKE CU-PE12DKE RE
1
BASE ASS'Y
1 CWD50K2114A CWD50K2114A
2
HOLDER-FAN MOTOR
1 CWD541020 CWD541020
3
SCREW-F.M. HOLDER
2 CWH551060J CWH551060J
4
FAN MOTOR
1 L6LAHAG00001 L6LAJAG00001
5
FIXING SCREW-FAN MOTOR
4 CWH55406J CWH55293J
6
PROPELLER FAN
1 CWH03K1010 CWH03K1010
7
NUT-P.FAN
1 CWH561036J CWH561036
8
COMPRESSOR
1 CWB092256 CWB092256
9
MOUNT RUBBER(COMP.)
3 CWH50077 CWH50077
10
NUT-COMP.MOUNT
3 CWH56000J CWH56000J
11
CONDENSER
1 CWB32C1491 CWB32C1500
12
HOLDER-COUPLING
1 CWH351040 CWH351040
13
4-WAY VALVE
1 CWB001037J CWB001037J
14
2-WAY VALVE
1 CWB021241 CWB021241
15
3-WAY VALVE
1 CWB011261 CWB011261
16
FILT
ER 1 CWB101016 CWB101016
17
TERMINAL COVER
1 CWH17006 CWH17006
18
NUT-TERMINAL COVER
1 7080300J 7080300J
19
SOUND PROOF PANEL
1 CWH151088 CWH151083
20
SOUND PROOF PANEL
1 CWG302269 CWG302269
21
SOUND PROOF PANEL
1 CWG302281 CWG302281
22 REACTOR 1 CWA421050J CWA421060J
23 CONTROL BOX COMPLETE 1 CWH14C4648A CWH14C4659A
24
CONTROL BOARD
1 CWH102283 CWH102283
25
TERM INAL BOARD ASS'Y
1 CWA28K1121 CWA28K1121
26 CONTROL BOARD 1 CWH102248 CWH102248
27
CONTROL BOARD COVER
1 CWH131214 CWH131214
28 RADIATOR 1 CWA581085 CWA581085
29 ELECTRONIC CONROLLER 1 CWA743776A CWA743821A
30
TUBE ASS'Y(CAPILLARY)
1 CWT01C3431 CWT01C3433
31
CAPILLARY
1 CWB15386 CWB15416
32
SENSOR(COMP.)
1 CWA50C
2209J CWA50C
2209J
33 SENSOR(PIPNG) 1 CWA50C2282J CWA50C2282J
34 V-COIL COMPLTE 1 CWA43C2179J CWA43C2179J
35
SURFACE COVER
1 CWE031055A CWE031055A
36
CABINET FRONT PLATE
1 CWE06C1090 CWE06C1090
37
CABINET SIDE PLATE(R)
1 CWE041157A CWE041157A
38
CABINET SIDE PLATE(L)
1 CWE041118A CWE041118A
39
CONTROL BOARD COVER
1 CWH13C1119 CWH13C1119
40 HANDLE 1
CWE161001 CWE161001
41 PROOF NET-CONDENSER 1
CWD041048A CWD041034A
71

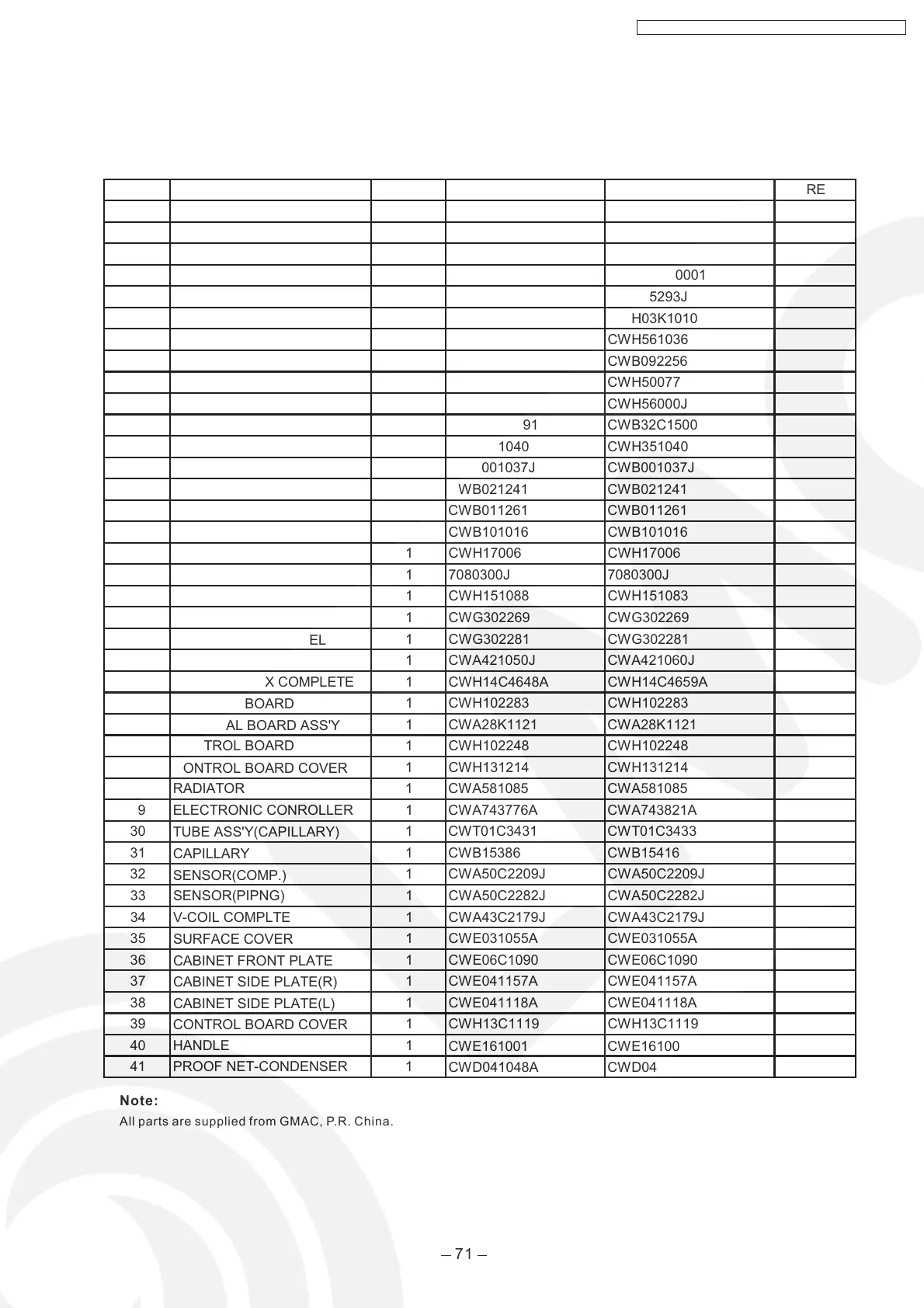

17 Replacement Parts List
Note:
All parts are supplied from GMAC, P.R. China.
CU-PE9DKE
CU-PE12DKE
CS-PE9DKE / CU-PE9DKE / CS-PE12DKE / CU-PE12DKE
