Panasonic CU-V7CKP5 - Wiring Diagram; Resistance of Indoor Fan Motor Windings; Resistance of Outdoor Fan Motor Windings; Resistance of Compressor Windings

REMARKS
B :BLUE
BR : BROWN
BL : BLACK
G : GREEN
GRY : GRAY
O : ORANGE
P : PINK
R :RED
W : WHITE
Y : YELLOW
Y/G : YELLOW/GREEN
Resistance of Indoor Fan Motor Windings
MODEL CS-V7CKP
CS-V9CKP
CS-V12CKP
CONNECTION CWA921060
BLUE-YELLOW 371.0 Ω
YELLOW-RED 386.6 Ω
Note: Resistance at 20°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings
MODEL CU-V7CKP5
CU-V9CKP5
CU-V12CKP5
CONNECTION CWA951118 CWA951120
BLUE-YELLOW 203.5 Ω 200.4 Ω
YELLOW-RED 190.3 Ω 252.5 Ω
Resistance of Compressor Windings
MODEL CU-V7CKP5
CONNECTION GB080PAA
C-R 4.96 Ω
C-S 4.67 Ω
Note: Resistance at 25°C of ambient temperature.
MODEL CU-V9CKP5
CONNECTION GB102PAA
C-R 3.77 Ω
C-S 4.02 Ω
Note: Resistance at 25°C of ambient temperature.
MODEL CU-V12CKP5
CONNECTION GB134PAA
C-R(Main) 3.27 Ω
C-S(Sub) 3.02 Ω
Note: Resistance at 25°C of ambient temperature.

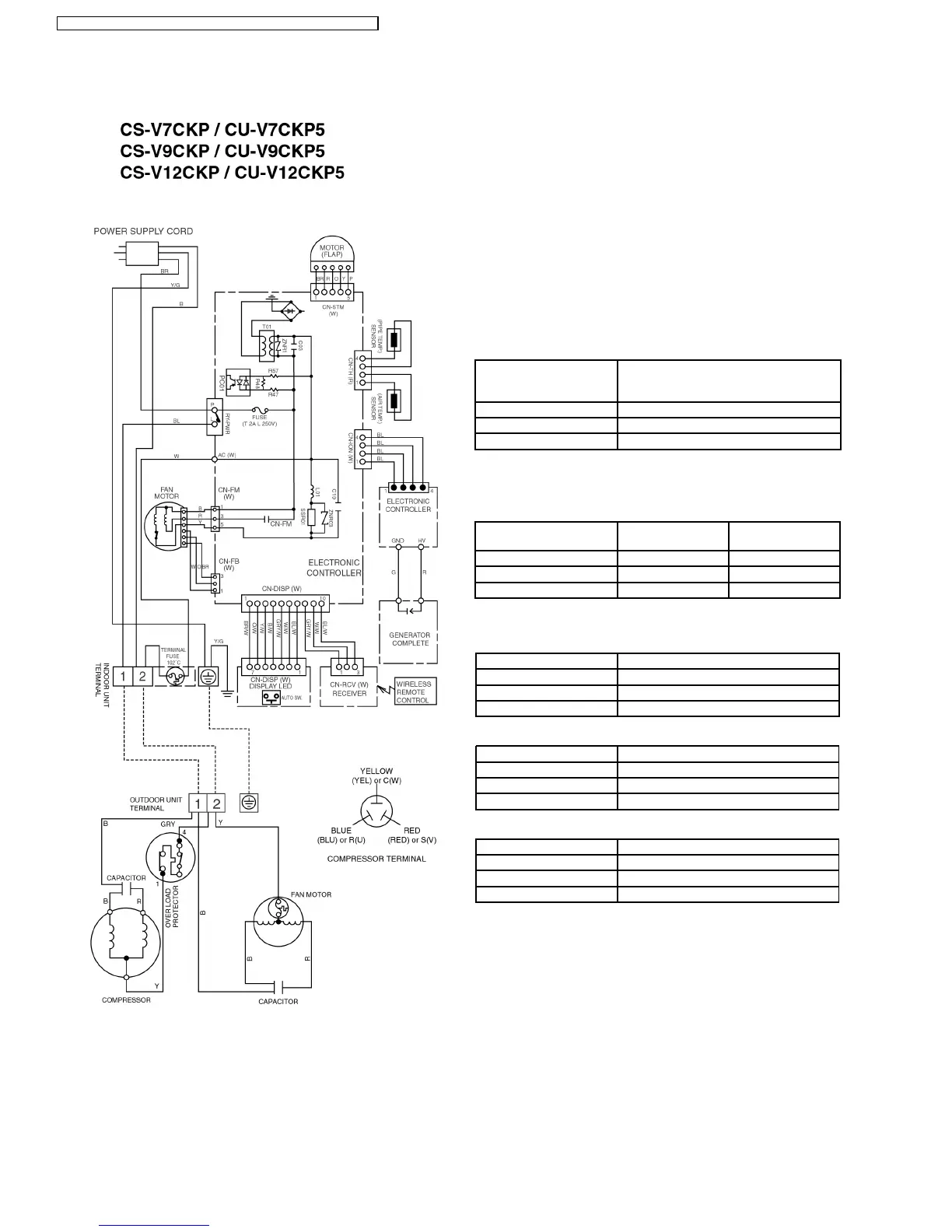

7 Wiring Diagram
16
CS-V7CKP CU-V7CKP5 / CS-V9CKP CU-V9CKP5 / CS-V12CKP CU-V12CKP5
