Embedded type
*It is also possible to mount in the order
2
→
1
→
3
.
Screw
(Supplied)
Claw (2 locations)
Claw (2 locations)

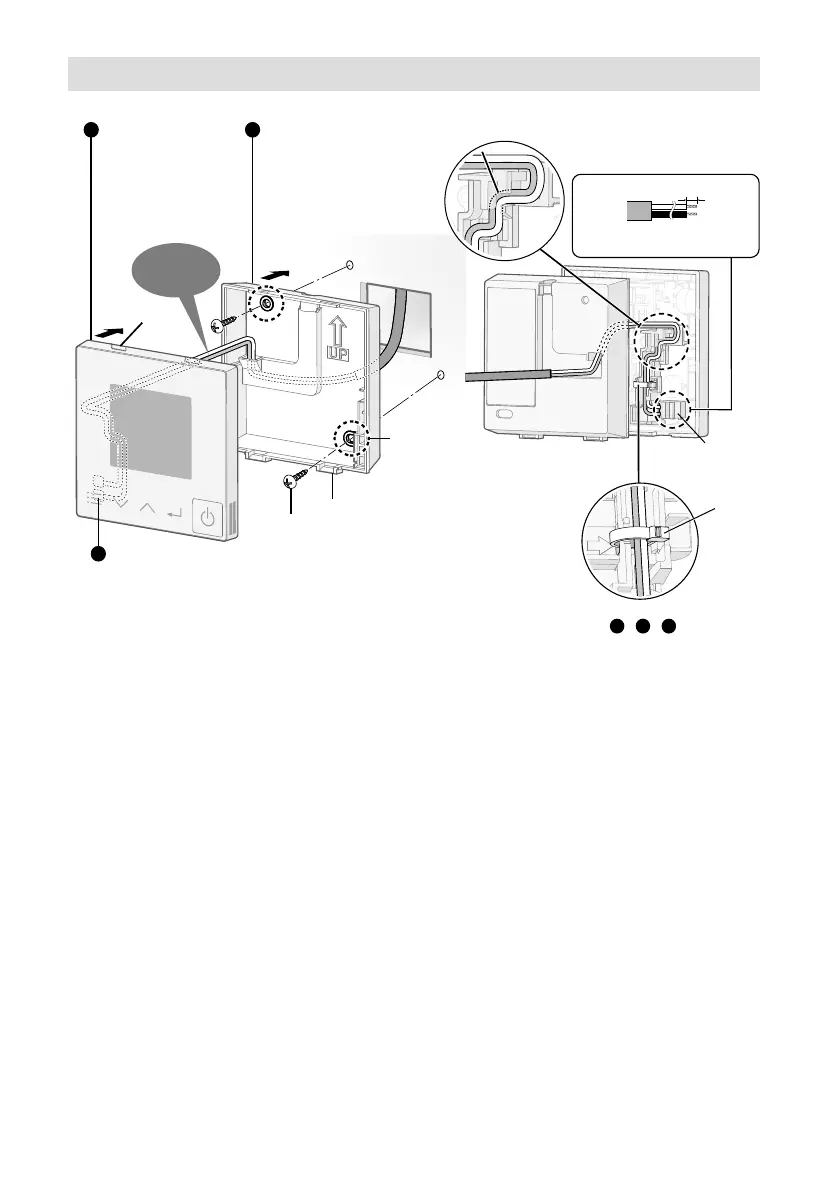

Connect the remote control wiring.
• Be sure not to allow unnecessary wires to remain
in the remote controller case when wiring. Be
careful not to allow wires to be in contact with
parts on the PCB. For connection method, refer
to
“
Connection to the remote controller terminal
board
”
in
“
Attention
”
.
2
Hole for screw
Mount the top case.
●
Align the claws of the top
case and then align the
claws of the bottom case.
●
If the wiring is difficult to
move, loosen the screw in
the lower case, work on the
wiring, then screw in the
screw after finishing the work.
3
Mount the bottom case to
the wall.
●Pass the wire through the
wiring hole in the bottom case.
1
Avoid the
wire being
caught.
Clamper
(supplied)
•
Insert the clamper from the
position indicated by the arrow,
as shown in the diagram at right.
•
Put the locking part of the
clamper in the channel as
indicated by the arrow.
•
If you lock at the top, it may not
be possible to close the bottom
case.
Remote controller
terminal board
Remove the coating. Approx. 9 mm
●
Make sure the wiring connection
is in the correct direction.
Pass the wire under the rib.
Pass the wire under the rib.
A protective fi lm is attached on the Control panel.
