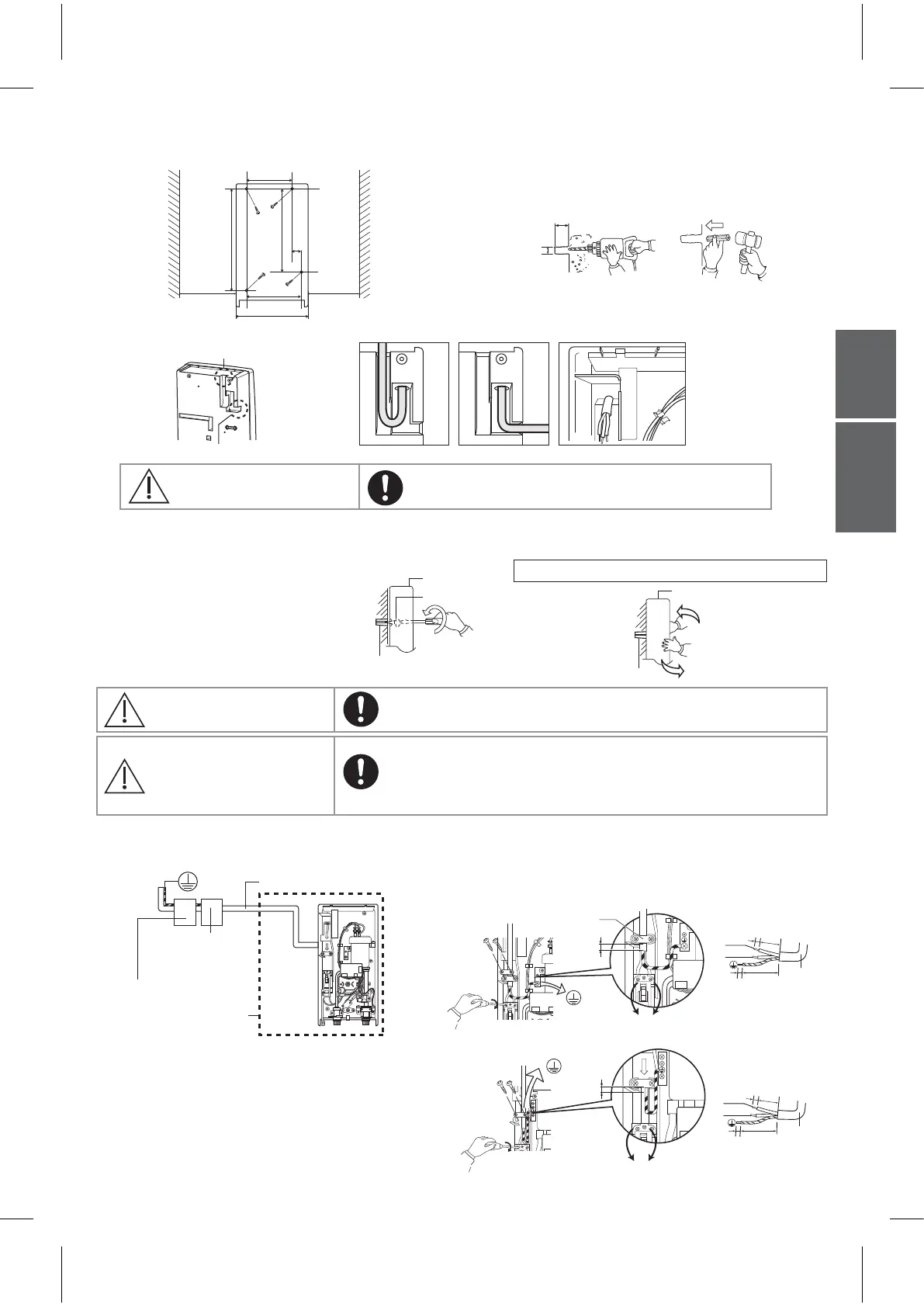

- 19 -
① The distance of the Unit should be more than 250 mm
from right and left of the wall.
② Make 4 holes at the wall by using a drill.
③ Insert a Wall Plug into the hole.
3. How to fix Electric Home Shower.
25 mm
Ø6 mm
Wall Plug
②
①
③
118 mm
Screw
Skru
142 mm
186 mm
24 mm
255 mm
312 mm
Wall Wall
250 mm
minimum
250 mm
minimum
4. Electric wiring
Flexible Cord must enter the Unit thru designated point only
(do not make additional holes).
CAUTION
Portion 1
Portion 2
④ Lead the Flexible Cord to the set thru Portion 1 or 2 as shown below for electric wiring process.
④
Portion 1 Portion 2 View from inside of the Unit
Proper size of Flexible Cord and electric wiring must be installed to avoid
smoke emission and fire hazards.
The Home Shower must be permanently connected to the electric supply
through the ON/OFF DP (double pole) Switch having a contact separation
of at least 3 mm in all poles incorporated in the fixed wiring. This switch
must be clearly identifiable but out of reach of a person using a fixed bath
or shower.
WARNING
WARNING
Wall Plug
Wall Plug
Screw
Wall
Wall
Back Plate
Back Plate
⑤ • Mount the Unit on the wall with 4 screws.
• Drive each Screw into the two upper Wall Plugs through
the screw holes on the Back Plate.
• After tighten up the two upper
Screws, tighten up the remaining
two Screws.
⑥ Please ensure that the set fixed tightly on wall by
shaking it left and right.
Note: The Back Plate must be mounted with 4 Screws.
⑤
⑥
ENGLISH
INSTALLATION
Bath Room
Earth
ON/OFF DP
(double pole) Switch
Miniature Circuit
Breaker (MCB)
Flexible Cord 2.5
mm², 3 core
L
N
Flexible
Cord
50
mm
110
mm
13
mm
13
mm
WARNING
MUST BE TIGHTEN
L(+) (-)N
1
N•m
Ground
Point
WARNING
MUST BE TIGHTEN
L(+) (-)N
5
mm
Cord
Holder
WARNING
MUST BE TIGHTEN
L(+) (-)N
L N
DH-3RL1
DH-3RP1
L
N
Flexible
Cord
50 mm
60 mm
13 mm
13 mm
WARNING
MUST BE TIGHTEN
L(+) (-)N
Ground
Point
1 N•m
5 mm
WARNING
MUST BE TIGHTEN
L(+) (-)N
L N
① Lead the Flexible Cord connected to ELB terminal
inside the Unit: 2.5
mm², 3 core Flexible Cord.
② Unscrew the Cord Holder and fix the Flexible Cord. Strip
the lead wire (coating). Fasten the life wire (L) and neutral
wire (N) to the ELB (L,N) and earth wire to the Ground Point
with 1
N•m (10
kgf.cm) torque. Fix back the Cord Holder to
its position to clamp the Flexible Cord.
To Next Page
