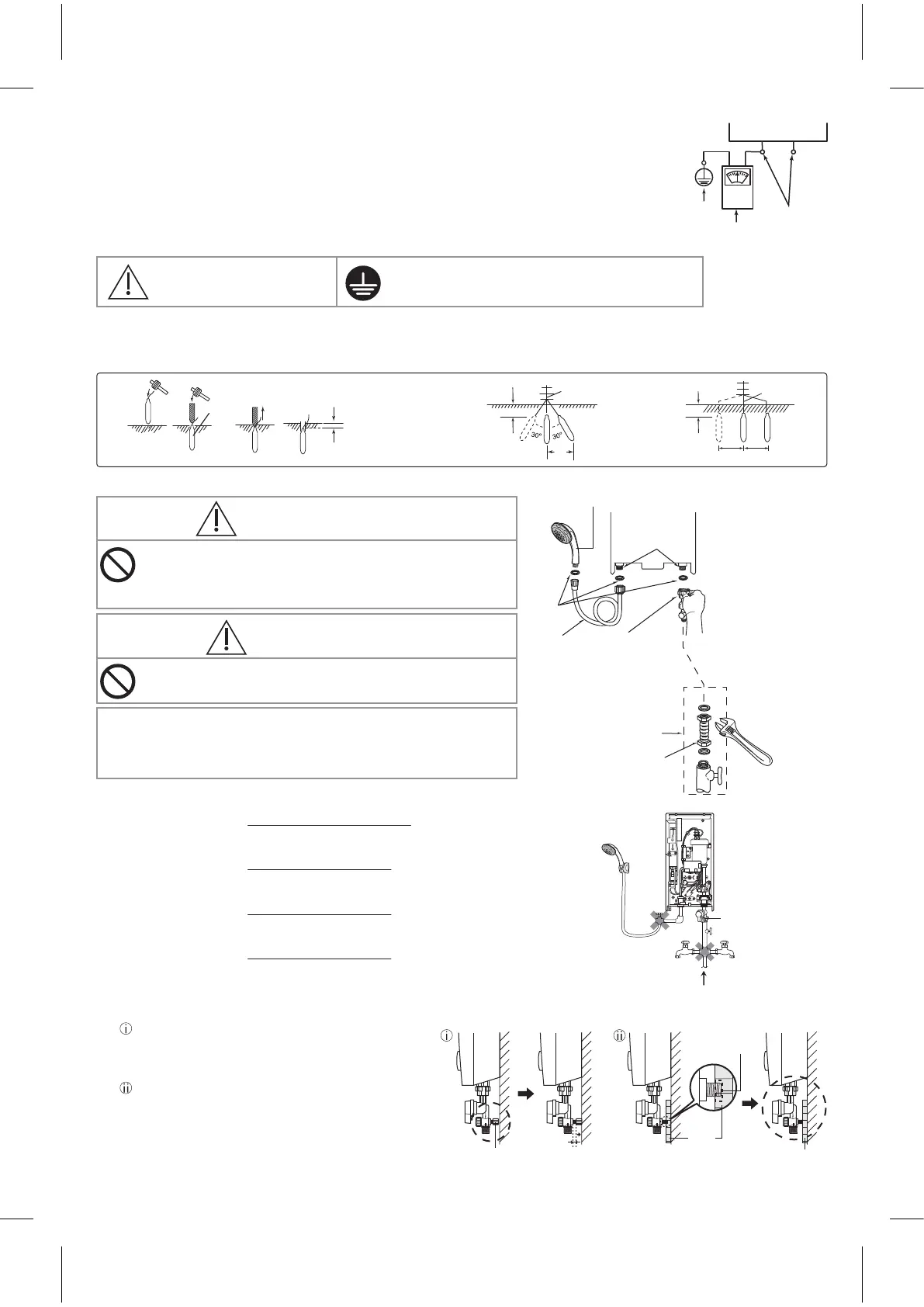

Panasonic DH-3RL1 - Earth Rod and Piping Installation

- 20 -
Main Body
Thread End
Shower Hose
Rubber
Packing
Filter Body
Assembly
Shower
Head
Parts not
included
Use flexible pipe
minimum
length 150
mm
Water Inlet
Water Outlet
Filter Body
Assembly
① Place Rubber Packing between Filter Body Assembly and Flexible Pipe.
Do not use piping tape. Tighten it by Spanner firmly.
② Place Rubber Packing between Filter Body Assembly and Main Body.
Do not use piping tape. Tighten it by hand firmly.
③ Place Rubber Packing between Shower Hose and Main Body.
Do not use piping tape. Tighten it by hand firmly.
④ Place Rubber Packing between Shower Hose and Shower Head.
Do not use piping tape. Tighten it by hand firmly.
⑤ The Filter Body Assembly should be placed in the front direction of the Unit.
⑥ Adjust Holder Adjustment. (Behind Filter Body Assembly).
Set the Adjust Holder behind the Filter Body
Assembly by turning it anti-clockwise or clockwise.
Make sure the Adjust Holder is touching to the wall
or tiles.
If the Adjust Holder needs to be cut due to different
wall height make sure the Adjust Holder is touching
to the wall or tiles to prevent possibility of water
leakage at the Filter Body Assembly.
• The Unit must be earthed.
• Select suitable place to bury the optional Earth Rod (DQ-6H) for at least 70 cm below ground surface.
• Ensure that the ground resistance is less than 100 Ω. If it is not, drive the Earth Rod deeper into ground surface or use 2 or 3 Earth
Rods.
④ Earth Rod
About 2 mAbout 2 m
1 m
Ground
Surface
(Parallel Style)
Earth Rod
70 cm at least
70 cm at least
Connection
Burying tool
(Bevel Style)
70 cm at least
Connection
The Unit must be earthed.
Improper grounding could cause electric shock.
WARNING
5. Piping Installation Procedure
②
③
④
①
Do not share the inlet or outlet pipe of Home Shower Unit with
other outlets.
The pressure may drop due to water being drawn off at other point.
The shower water temperature may become very hot.
Avoid using dirty water as it may affect heater performance
and other components.
WARNING
CAUTION
WARNING
MUST BE TIGHTEN
L(+) (-)N
⑤
O
P
E
N
C
L
O
S
E
FILTER
CLEANING
OFF
MAX
Touching to
the wall/tiles
Wall/ Tiles
Touching to
the wall/tiles
tiles
tiles
Cut
Adjust Holder
About 5 mm
NOTE:
• Make sure no water leaks from pipe connection.
• When glue is used for external piping connection, must wait for the glue
to dry before proceed to test run with water.
Main Power Board
Earth
Tester
Power-Supply
Terminals
③ Connect wires in correct polarity (L,N).
• Connecting the wires in wrong polarity (L,N) causes an abnormal condition which may lead to
electric leaking, burning and such.
• Before wiring, please check polarity (L,N) with voltage range of a tester or voltmeter by connecting
one terminal of the meter to earth while the other to one of the Power-Supply Terminals.
• When the needle of the meter deflects greatly, the polarity of the Power-Supply Terminals is ‘L’.
