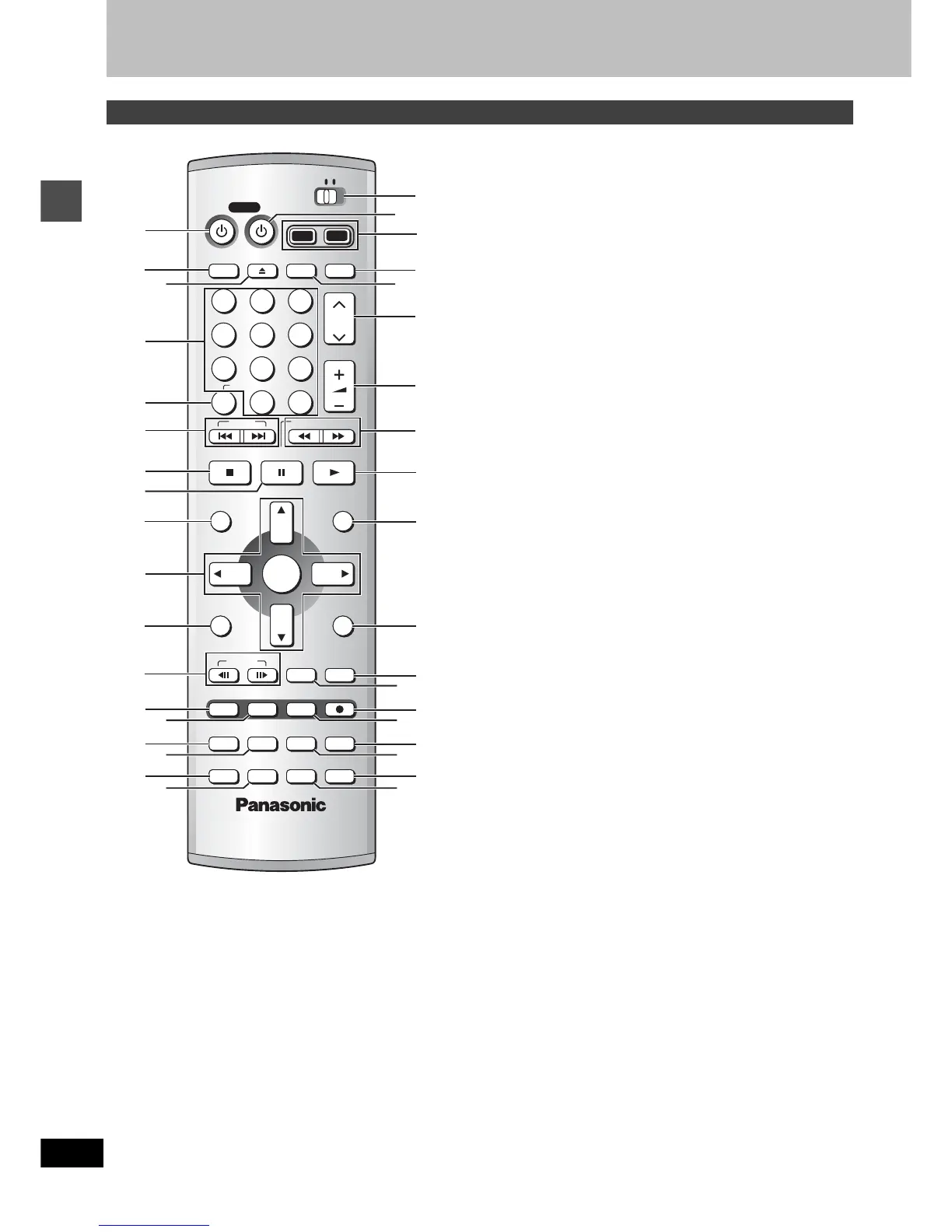

Control reference guide
1 POWER button (Í, DVD (POWER)) . . . . . . . . . . . . . . . . . . 7, 14
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
2 VCR Plusr button (VCR Plusr) . . . . . . . . . . . . . . . . . . . . . . 24
3 Disc tray open/close button (< OPEN/CLOSE). . . . . . . . . . 14
4 Numbered buttons (1–9, 0, 100)
5 Cancel button (CANCEL). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6 Skip buttons (:, 9 SKIP) . . . . . . . . . . . . . . . . . . . . . . . 20
7 Stop button (∫ STOP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
8 Pause button (; PAUSE). . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
9 Top menu and Direct Navigator button
(TOP MENU, DIRECT NAVIGATOR). . . . . . . . . . . . . . . . . 19, 23
: Cursor buttons (3, 4, 2, 1)/Enter button (ENTER) . . . . . . 7
; Functions button (FUNCTIONS) . . . . . . . . . . . . . . . . . . . . . . 42
< Frame advance and frame reverse buttons
(2;, ;1 FRAME). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
= Manual programming and check button
(PROG/CHECK). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
> Manual channel adding and deleting button
(ADD/DLT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
? On-screen display button (STATUS). . . . . . . . . . . . . . . . . . . 43
@ Marker button (MARKER) . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
A On-screen menu button (DISPLAY) . . . . . . . . . . . . . . . . . . . 40
B Position memory button (POSITION MEMORY) . . . . . . . . . 19
C DVD/TV switch (DVD, TV). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
D TV power on/off button (Í, (POWER) TV) . . . . . . . . . . . . . . . 9
E Drive select buttons (HDD, DVD) . . . . . . . . . . . . . . . . . . . . . 14
F Television input mode selector (TV/VIDEO). . . . . . . . . . . . . . 9
G Input select button (INPUT SELECT) . . . . . . . . . . . . . . . . . . 16
H Channel buttons for recorder and TV (W, X, CH) . . . . . . 9, 14
I TV volume buttons (r, s, VOLUME). . . . . . . . . . . . . . . . . . . . 9
J Slow/search buttons (6, 5 SLOW/SEARCH) . . . . . . . . 20
K Play/quick view button (1 PLAY/a1.3). . . . . . . . . . . . . . 18, 21
L Menu and Play list button (MENU, PLAY LIST) . . . . . . . 19, 31
M Return button (RETURN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
N Time slip button (TIME SLIP). . . . . . . . . . . . . . . . . . . . . . 17, 21
O One-minute skip button (CM SKIP). . . . . . . . . . . . . . . . . . . . 21
P Recording button (¥, REC) . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Q Program/play list erase button (ERASE) . . . . . . . . . . . . 19, 31
R Recording mode button (REC MODE) . . . . . . . . . . . . . . . . . 14
S Dubbing button (DUBBING) . . . . . . . . . . . . . . . . . . . . . . . . . 29
T Setup button (SETUP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
U Audio button (AUDIO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
