Technical Information
ENGLISH - 47
Appendix

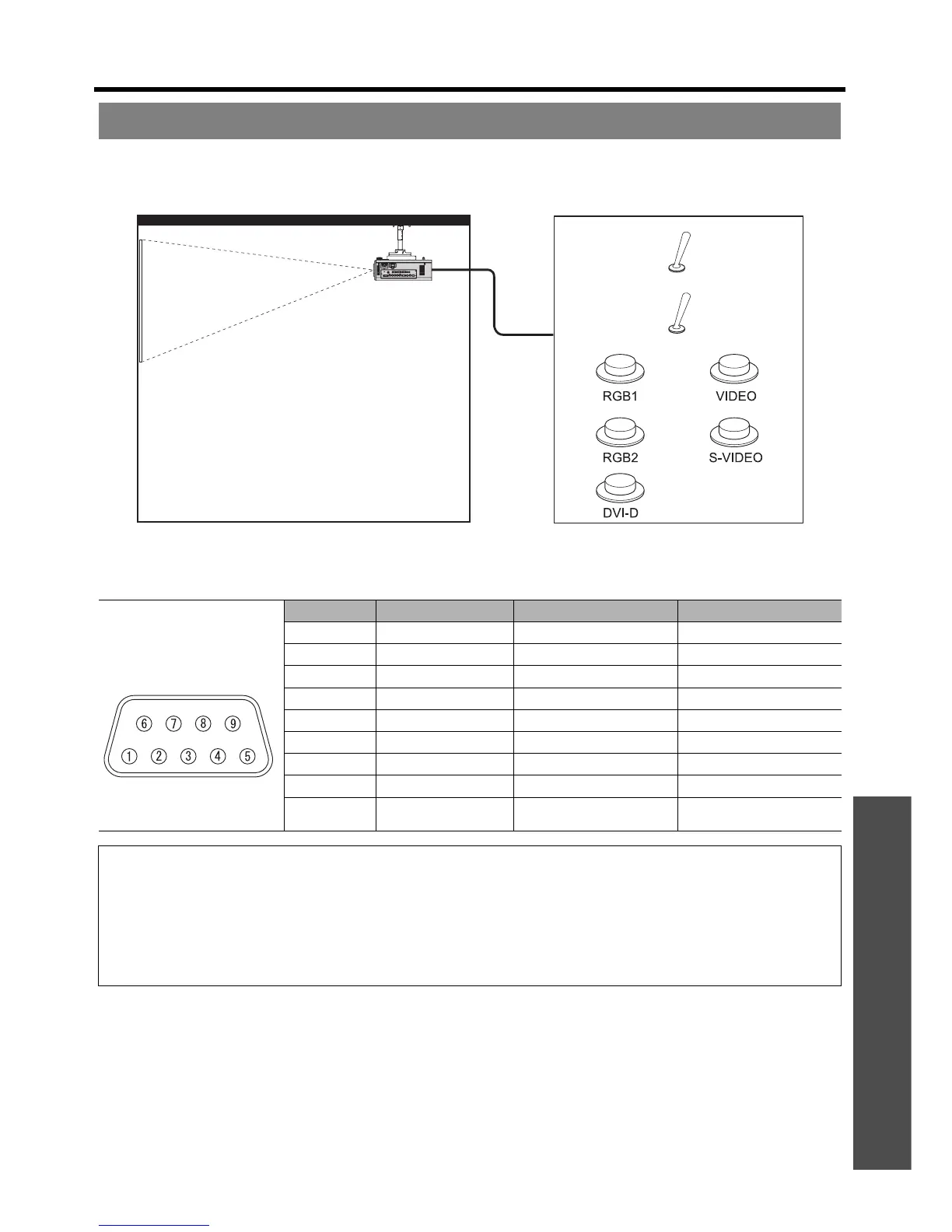

Using the REMOTE 2 IN terminal provided on the connection terminals of the main unit, it is possible to operate the
projector from a control panel etc. furnished in a distant location where infrared remote control signal cannot be
received.
J Pin assignments and control
REMOTE 2 IN terminal
Pin No. Signal name Open (H) Short (L)
1
GND GND
2
POWER OFF ON
3
RGB1 Other RGB1
4
RGB2 Other RGB2
5
VIDEO Other VIDEO
6
S-VIDEO Other S-VIDEO
7
DVI-D Other DVI-D
8
SHUTTER OFF ON
9
RST / SET
Controlled by remote
control
Controlled by external
contact
NOTE:
• The following buttons on the remote control and the operation area of the projector can no longer be operated when pins
1 and 9 are shortened: POWER button and SHUTTER button. Neither will it be possible to use the RS-232C commands
or network functions corresponding to these functions.
• If you short pin 1 and pin 9, and also short one of the pins from 3 to 7 and pin 1, then the following buttons on the projector
operating area and the remote control can no longer be operated: POWER, RGB1, RGB2, DVI-D, VIDEO, S-VIDEO, SDI
and SHUTTER buttons. Neither will it be possible to use the RS-232C commands or network functions corresponding to
these functions.
Standby ON
Remote
terminal
External
control
LAMP
Remote terminal/External control
Projector set up in a meeting room Control panel located in a different room
