Panasonic DMR-E75VP - Page 126

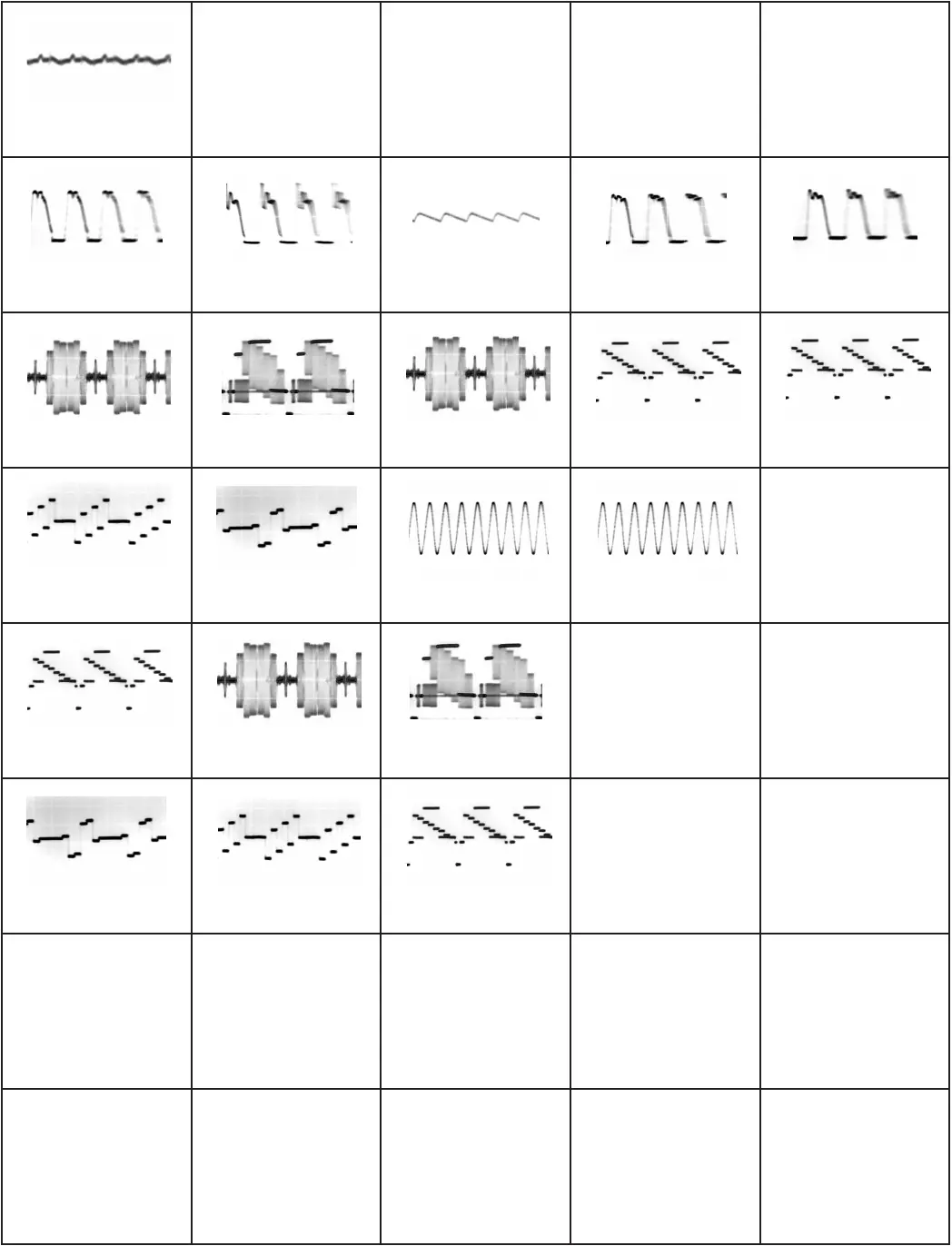

IC11150-2 STOP
0.2Vp-p (5usec.div)
T11150-8 STOP
32Vp-p (5usec.div)
P9001-2 REC/PLAY
0.8Vp-p (20usec.div)
P9001-1 REC/PLAY
0.8Vp-p (20usec.div)
P9001-34 REC/PLAY
0.6Vp-p (20usec.div)
JK3904-18 REC/PLAY
1.2Vp-p (20usec.div)
JK3904-19 REC/PLAY
1.2Vp-p (20usec.div)
JK3904-20 REC/PLAY
1.5Vp-p (20usec.div)
P9001-48,50 REC/PLAY
0.8Vp-p (1msec.div)
T11150-6 STOP
10Vp-p (2msec.div)
T11150-7 STOP
38Vp-p (5usec.div)
T11150-4 STOP
300Vp-p (5usec.div)
T11150-3 STOP
30Vp-p (5usec.div)
P9001-18 REC/PLAY
0.8Vp-p (20usec.div.)
P9001-22 REC/PLAY
0.8Vp-p (20usec.div.)
P9001-26 REC/PLAY
0.8Vp-p (20usec.div.)
P9001-30 REC/PLAY
0.6Vp-p (20usec.div.)
P9001-58,62 REC/PLAY
0.8Vp-p (1msec.div)
JK3902-3 REC/PLAY
1.5Vp-p (20usec.div)
JK3902-4 REC/PLAY
1.4Vp-p (20usec.div)
JK3902-16 REC/PLAY
1.8Vp-p (20usec.div)
