Panasonic DMR-EA18K

52
RQT9048

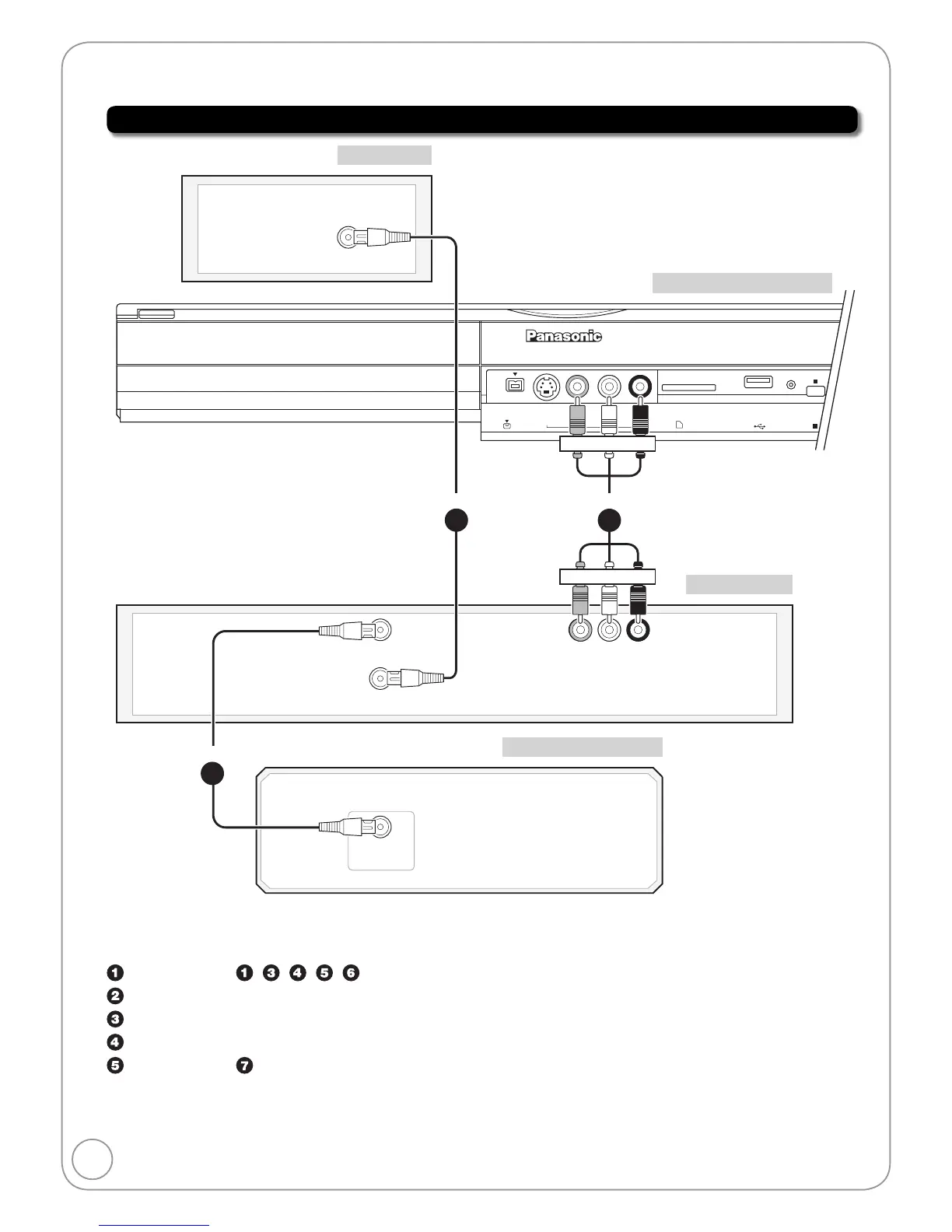

Adding a Video Cassette Recorder (VCR)
Additional coaxial cable and audio/video (AV) cable are required.
Connecting to a Television, a Set Top Box and a VCR
/ RESET SD CARD IN2
DV IN
S VIDEO VIDEO
L/MONO-AUDIO-R
RF OUT
VHF/UHF
RF IN
AUDIO IN
R L
VIDEO
IN
Rear of VCR
Rear of Set Top Box
Rear of TV
This unit’s front panel
AUDIO OUT
L R
VIDEO
OUT
RF IN
RF OUT
Yellow White Red
Yellow White Red
step
4
step
3
step
2
Perform step , , , , on page 8.
Coaxial cable from the “RF OUT” on the Set Top Box to the “RF IN” on the VCR.
Coaxial cable from the “RF OUT” on the VCR to the “VHF/UHF RF IN” on the TV.
Audio/video cable from the “AV OUT” on the VCR to the “ IN2 ” on the unit.
Perform step on page 8.
•
