Panasonic DMR-EH80V

17
DVD Recorder
1
2
3
TV
4
Aerial
AC mains lead
RF IN
Aerial input
AV1 21-pin
Scart socket
RF cable
Aerial
input
Necessary for TV with Q Link
RF OUT
Aerial output
Aerial
infeed line
21-pin Scart cable
Connecting with a 21-pin Scart cable
AC IN~
4
AC mains lead
HDD/DVD OUT
106
20
20
With a 21-pin Scart cable
With Q Link function and
21-pin Scart socket
Auto-Setup
Download from TV

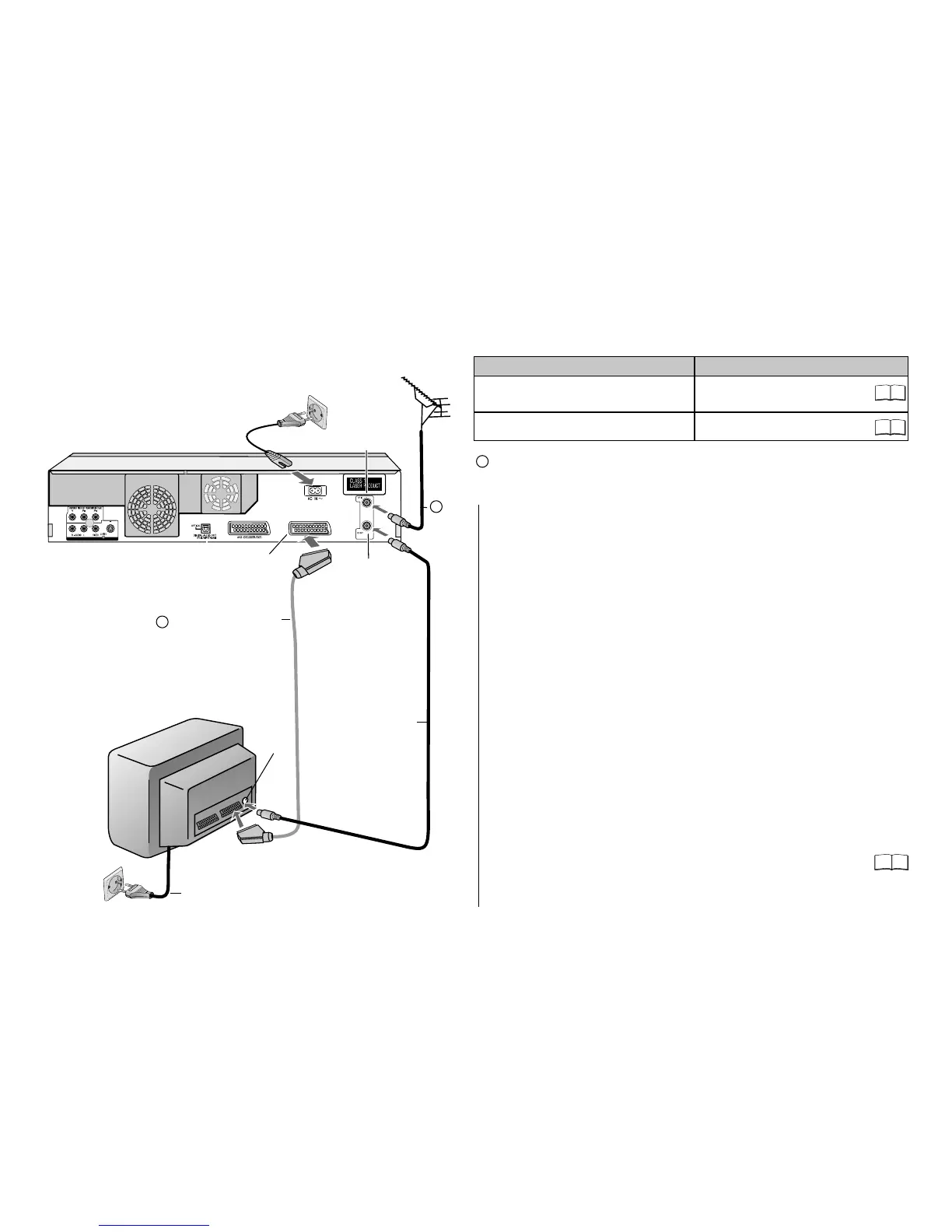

SetupConnecting the TV
Follow the steps below.
Disconnect the power from all units.
1 Connect the aerial to the RF IN (aerial input) of the
DVD Recorder.
2 Connect the RF OUT (aerial output) of the DVD Recorder
to the aerial input of the television set.
3 Connect the AV1 socket (21-pin Scart socket) of the
DVD Recorder to the Scart input of the television set.
4 Plug the DVD Recorder and the television set into
the AC mains socket.
If your television supports Q Link or RGB, connect it to the DVD
Recorder with a fully wired 21-pin Scart cable.
SETUP - Connections - [AV1 Output]
= Extra equipment for the connection shown: Aerial infeed line
21-pin Scart cable
