Panasonic DMR-EH80V

63
VIDEO IN
L/MONO - AUDIO IN - R
VHS
EXT LINK
EXT LINK
DVD
AV3
S VIDEO IN
DMR-EH80V
Panasonic
/
/
A
B
C
A
B
C
-R
RAM
-R
()
-RW V
+R
VHS
()
-RW V
+R
25
HDDDVD
RAM
HDD
RAM
HDD
Yellow (Video)
White (L)
Red (R)
Audio/Video cable

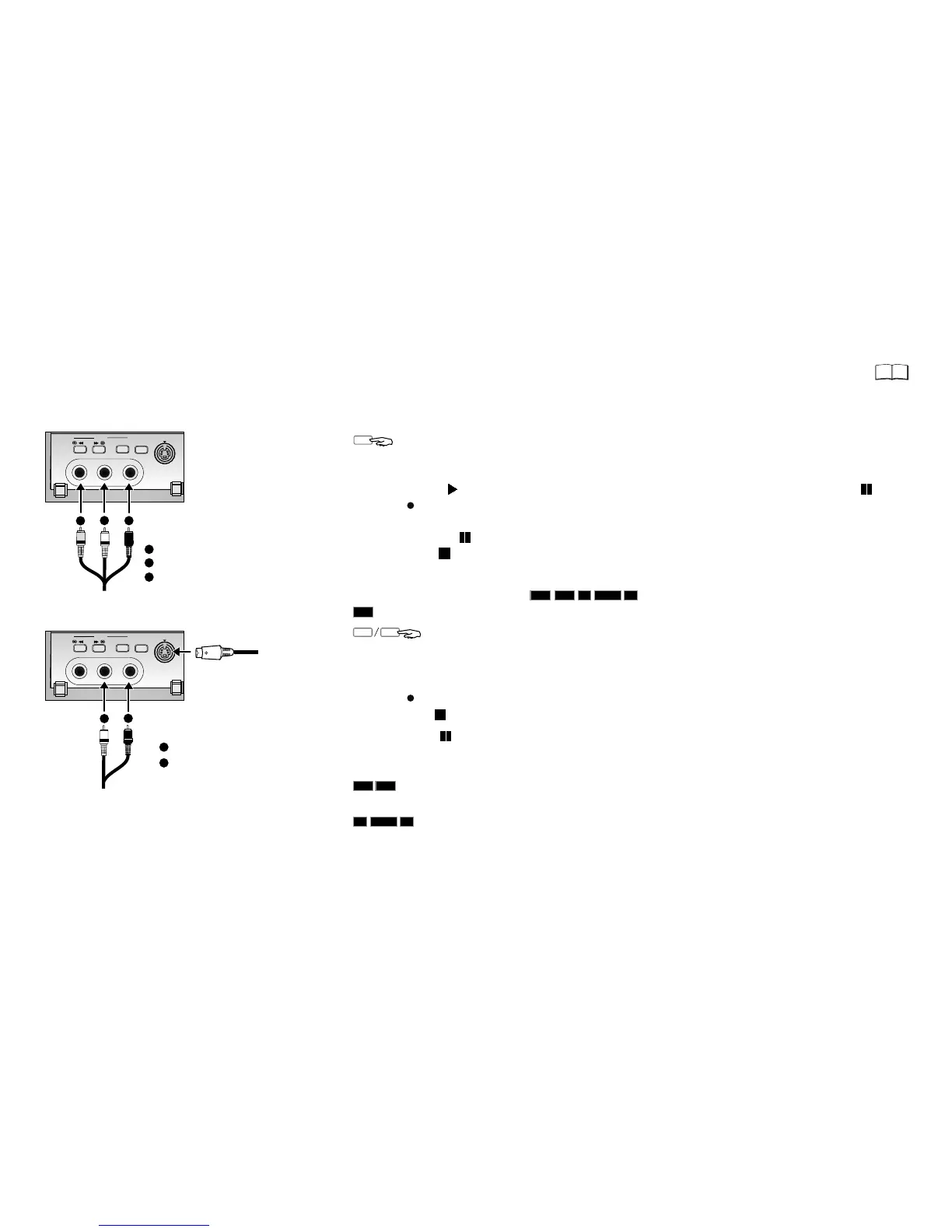

Recording from an external
device, e.g. a camera
Connect the external device to the AV3 input sockets on the front side of the unit.
!
Press REC MODE to select the recording mode.
!
In stop mode, use INPUT SELECT to select the input channel AV3.
!
Press PLAY . At the point where you want to begin recording, press PAUSE .
!
Press REC.
!
Start the playback on the external device.
!
Press PAUSE to start recording.
!
Use STOP to stop recording.
Insert a video cassette with intact write-protection tab.
Recording to VHS
If you activated the write-protection, deactivate it.
!
Press REC MODE to select the recording mode.
!
In stop mode, use INPUT SELECT to select the input channel AV3.
!
Start the playback on the external device.
!
Press REC at the point where you want to begin recording.
!
Use STOP to stop recording.
Recording to HDD/DVD
Press PAUSE to pause recording. Press the button to resume recording.
This unit cannot record signals from PCs.
If [M1] and [M2] are selected on the connected device, you can choose the
audio mode during playback.
Select [M1] or [M2] on the connected device. You cannot select the audio mode
during playback.
If the output signal of the external device is an NTSC signal, set the TV system in the
SETUP menu to [NTSC].
Recording of bilingual programmes
VIDEO IN
L/MONO - AUDIO IN - R
VHS
EXT LINK
EXT LINK
DVD
AV3
S VIDEO IN
DMR-EH80V
Panasonic
/
/
A
B
White (L)
Audio cable (L/R)
S VIDEO -cable
Red (R)
A
B
Choose one of the two connection
possibilities.
Connection with S VIDEO cable and
audio cable (L/R) produces the best
quality.
