• To enjoy Dolby Atmos
R
or DTS:X
TM
(> 85)
4K or 3D images can be played back when this unit is connected to a 4K or 3D compatible TV.
• This connection only supports up to 5.1ch.
• To connect a TV and amplifier with an HDMI cable, connecting terminals on both the TV and amplifier
must be ARC-compatible. (> above, “About ARC”)
• To enjoy Dolby Atmos
R
or DTS:X
TM
(> 85)

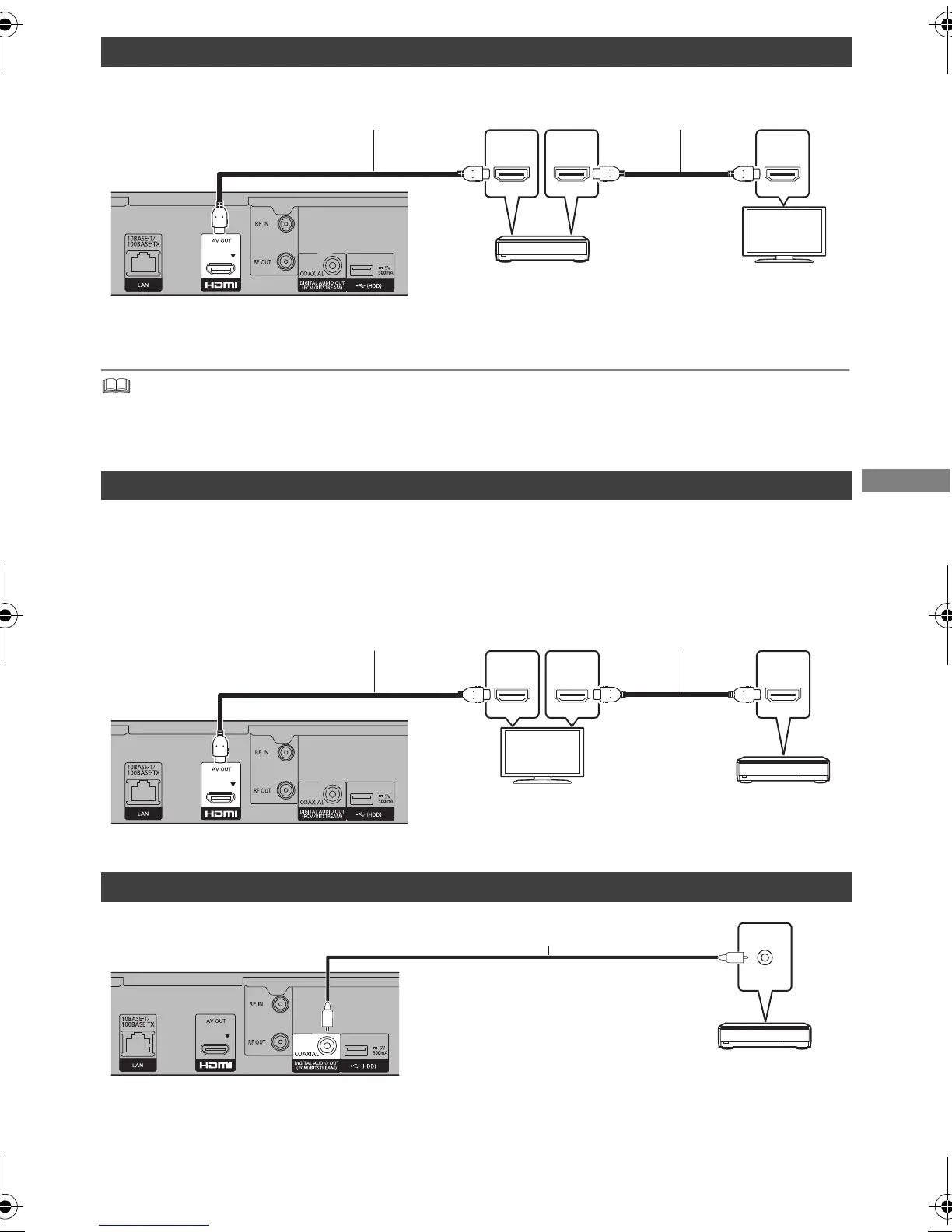

Enjoying video with a 4K-compatible TV and audio with a 4K-compatible amplifier
• About ARC:
When using a TV or an amplifier/receiver that does not display “ARC” on the HDMI terminal, it is necessary to connect the TV
and the amplifier/receiver with a digital audio cable to enjoy the TV audio on the amplifier/receiver.
Enjoying 4K or 3D video by connecting a non-4K compatible amplifier
Enjoying audio with an amplifier connected to the COAXIAL terminal
• To enjoy audio with an amplifier connected to the COAXIAL terminal
Set “Audio Output” to “Off” in “Advanced Settings”. (> 86)
HDMI IN
(ARC)
HDMI OUT
(ARC)
HDMI IN
HDMI cable
(18 Gbps)
HDMI cable
(18 Gbps)
Amplifier/receiver/sound bar
(4K-compatible)
HDMI OUT
(ARC)
HDMI IN
(ARC)
HDMI IN
Amplifier/receiver/
sound bar
HDMI cable
(18 Gbps)
HDMI cable
Coaxial digital cable
Amplifier/receiver/
sound bar
