The symbols on this product represent the following.

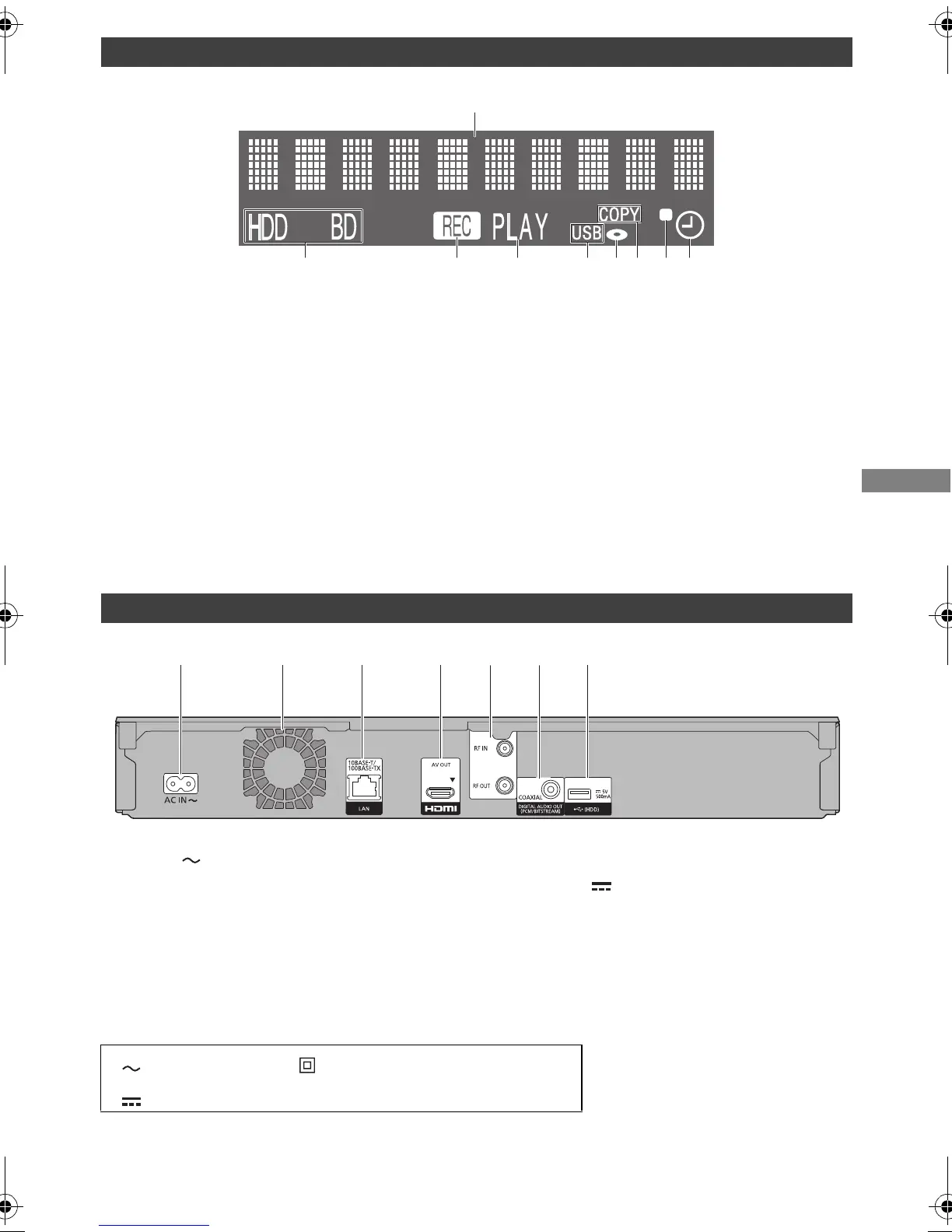

Display
1 Main display section indicator
• Messages and other information are
displayed. (> 97)
2 Drive (HDD or BD) indicator
3 Recording indicator
• The indicator will light up while recording.
• The indicator will blink while recording is
paused and before recording starts.
4 Playback indicator
5 USB port indicator
6 Disc indicator
7 Copying indicator
8 Remote control signal indicator
9 Timer recording indicator
This indicator lights up when the timer
recording standby or Keyword Recording
standby is activated.
Rear
1 AC IN ( ) terminal (> 12)
2 Cooling fan
3 LAN port
4 HDMI terminal (> 12, 13)
5 RF IN/OUT terminal (> 12)
6 COAXIAL terminal (> 13)
7 USB port ( DC 5 V 500 mA)
• This port supports USB 2.0 High Speed.
• Connect a USB HDD to this USB port.
AC
Class II equipment (The construction of
the product is double-insulated.)
