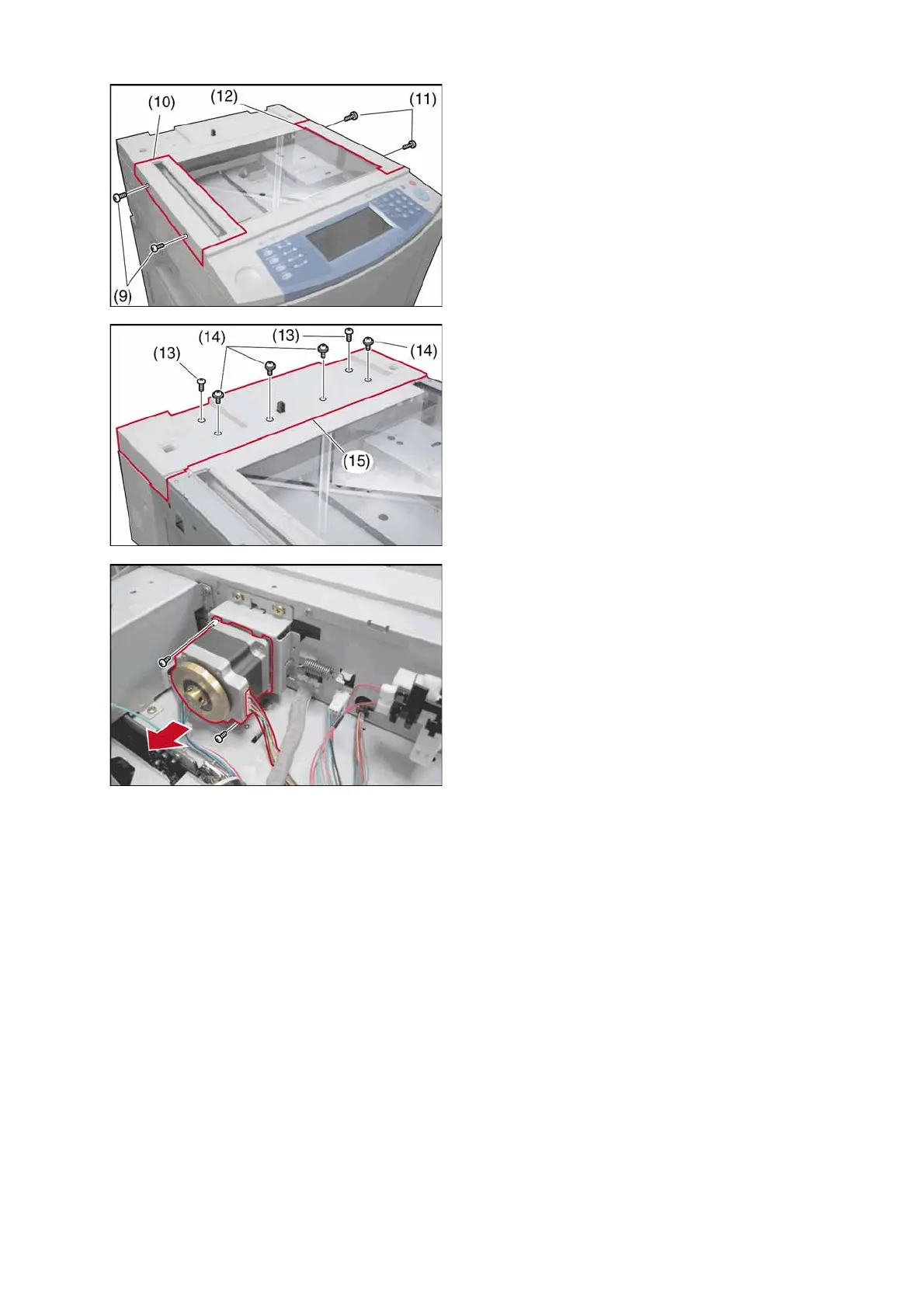

(9) Remove 2 Screws (H8).
(10) Remove the Left Platen Cover (111).
(11) Remove 2 Screws (H8).
(12) Remove the Right Platen Cover (112).
(13) Remove 2 Screws (N6).
(14) Remove 4 Screws (H8).
(15) Remove the Rear Platen Cover (113).
(16) Disconnect the Harness.
(17) Remove 2 Screws (1M).
(18) Remove the Scanning Motor (1325).
