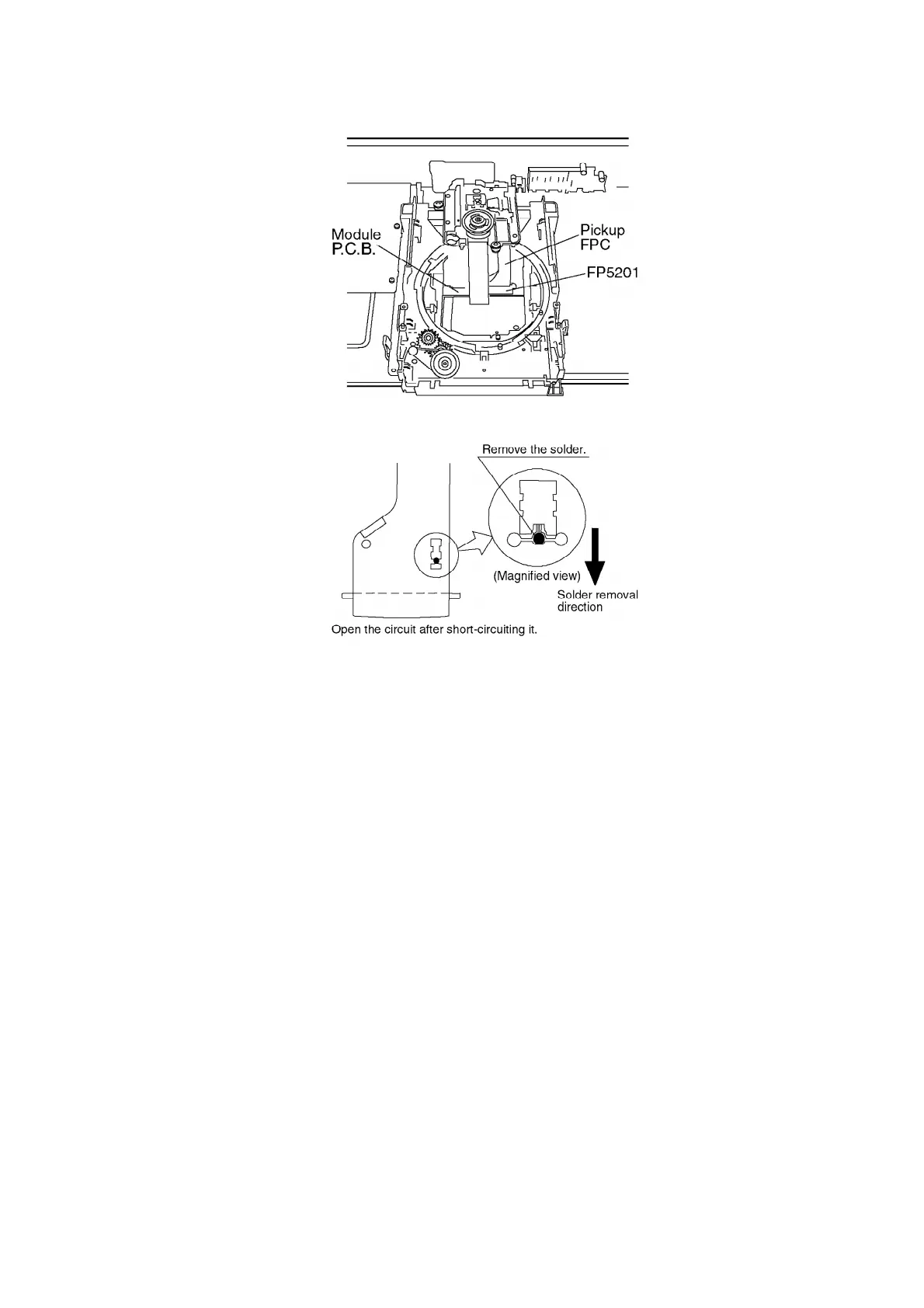

4. Remove the solder from the pickup FPC's soldered short-circuit.
5. Adjust the optical pickup tilt after removing the solder. (Refer to
section 11.12, Optical Pickup Tilt Adjustment.)
11.11. Disassembling the Spindle Motor Unit
1. Remove the three screws.
Note
Be sure to adjust the optical pickup tilt after replacing the spindle motor unit.
31
To Next Page
