Panasonic EAIRC-MJ Series Service Manual

3 - 12
3
Mini VRF SYSTEM
Outdoor Unit Maintenance Remote Controller
6. Mode Settings
Mini VRF SYSTEM
Outdoor Unit Maintenance Remote Controller

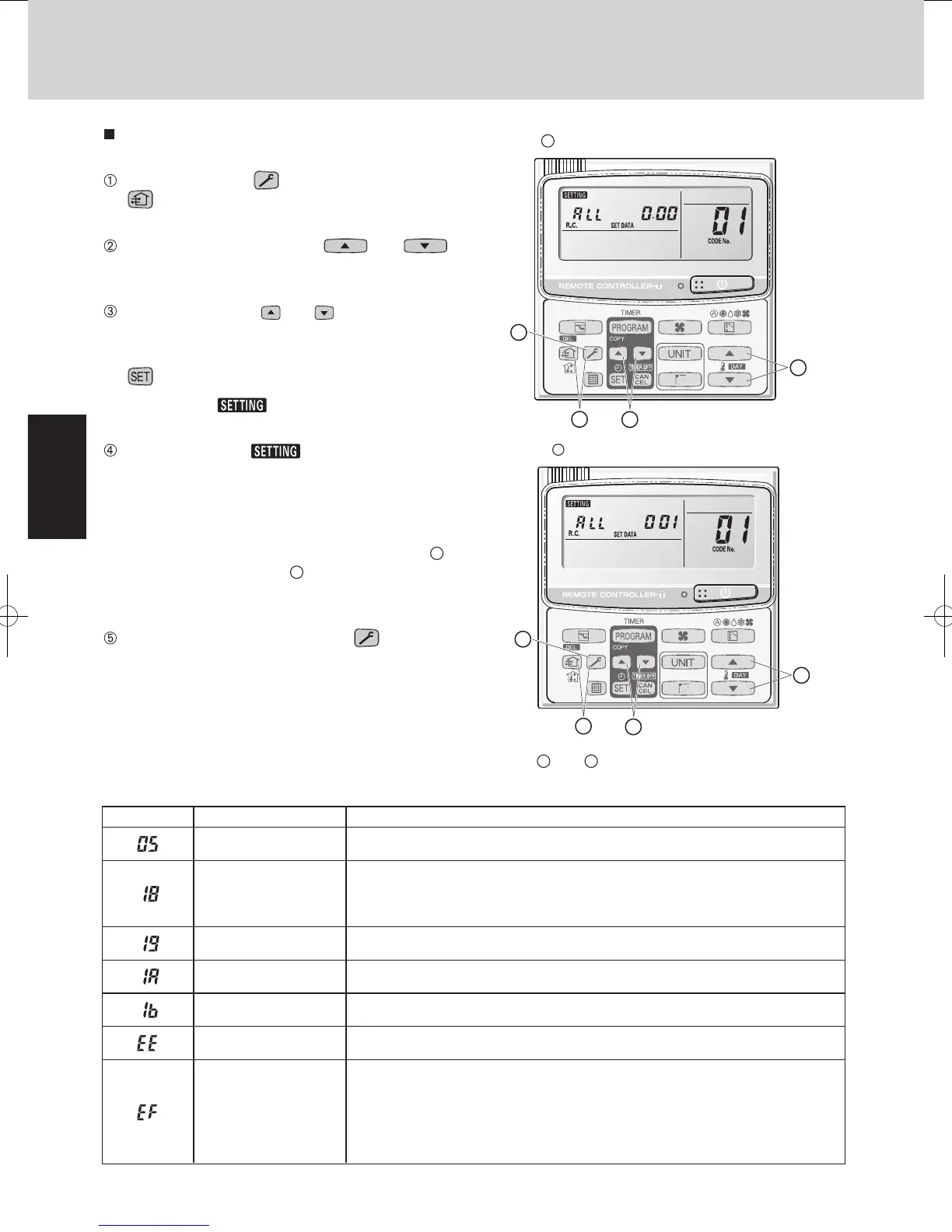

Setting mode 1
<Operating procedure>
Press and hold the (CHECK) button and
(VENTILATION) button simultaneously for 4
seconds or longer.
Press the temperature setting and
buttons to change the item code. The item codes
and setting data are shown in the table below.
Press the timer time and buttons to
change the setting data.
To confirm the changed setting data, press the
button.
(At this time, “ ” stops blinking and remains
lit.)
During this mode, “ ” is displayed, blinking.
The outdoor unit address display section displays
“ALL,” the item code number (DN value in the
table), and the setting data (6 digits).
(The setting data is displayed in 6 digits. The
display changes between the first 3 digits (Fig.
A
)
and the last 3 digits (Fig.
B
). When the first 3
digits are displayed, the bottom dot of the colon is
illuminated.)
To exit the setting mode, press the (CHECK)
button.
1
2
3
5
5
3
1
2
A
and
B
are displayed alternately.
(Example shows display of 000 001.)
A
Display of first 3 digits
B
Display of last 3 digits
DescriptionParameterDN
Outdoor unit fan Quiet
mode
000 = Disabled
001 = Quiet mode
Energy saving mode
000 = None
001 = Discharge temp. control only (Mode 3)
002 = Demand only (Mode 2)
003 = Discharge temp. control + Demand (Mode 1)
000 = None
001 = Indoor EEPROM code : Set 028 to 001
(When power failure is recovered, the system restores automatically.)
002 = Indoor EEPROM code : Set 028 to 000
(When power failure is recovered, the system does not restore automatically.)
(When EF changed, set to EE for setting at shipment : Set to 000)
Energy saving
operation plug
000 = Independent
001 = All indoor units linked
Demand 1 current 040 = 40%, 045 = 45%, … 095 = 95% 100 = 100%, -001 = (no limit)
040 = 40%, 045 = 45%, … 095 = 95% 100 = 100%, -001 = (no limit)
Demand 2 current
Indoor unit connecting
Nos.
000 = Setting at shipment
(Indoor unit connecting Nos. shows after installation's communication.)
Auto restart setting
6. Mode Settings
SM830195-04_Mini VRF SYS.indb 12 15/02/16 17:56:56
