EP3513
ORDER NO.HPD0509U24C1
- 8 -
5. DISPLAY METHOD OF MASSAGE BLOCK TOTAL USE TIME
AND OPERATION TIME
5.1 ADJUSTMENT OF PRESSURE SENSOR
How to adjust the Pressure sensor
The adjustment of the Pressure sensor is necessary every time after the Main PCB or Massage mechanism block are
replaced or repaired disassembled & reassembled.
First, keep the Massage mechanism block unloaded without pressure and move it upward halfway.
- If the Massage mechanism block is at the highest or lowest position, you cannot arrange the pressure sensor correctly
because the fabric becomes tense with pressure.
- Keep the Controller cover closed.

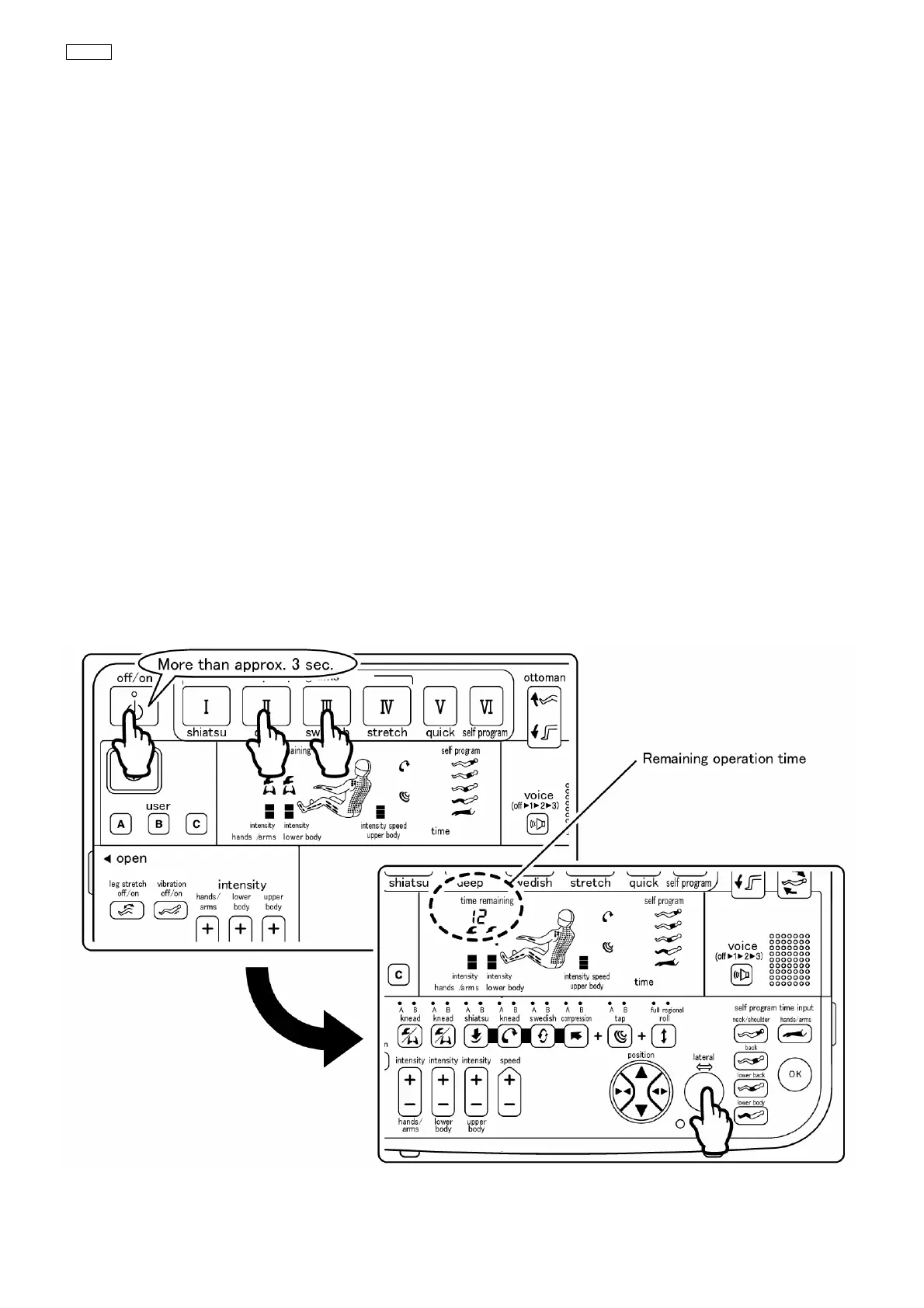

1. Insert the Power plug into the power source and turn on the switch of the Power source switch block.
2. While pushing the buttons of Ⅱ and Ⅲ, continue to push the On/off button for more than approximately three seconds.
3. After the buttons of Ⅱ and Ⅲ light, open the Controller cover and push the Lateral button.
- On the screen of remaining operation time, the current pressure is shown (0-3), which the Massage balls are enduring.
4. Close the Controller cover and push the Focus button.
- The load on the Massage balls when the switch is pushed is considered basic point, and from then the scanning and the
sensing the body pressure are executed based on the basic point.
- When the adjustment of pressure sensor is finished, the remaining time is shown ‘0’ and the buttons of Ⅱ and Ⅲ go off.
To Next Page
