Panasonic EP790-C1 - Removing the Rear Cover

13.1 Removing the rear cover
TOP PREVIOUS NEXT

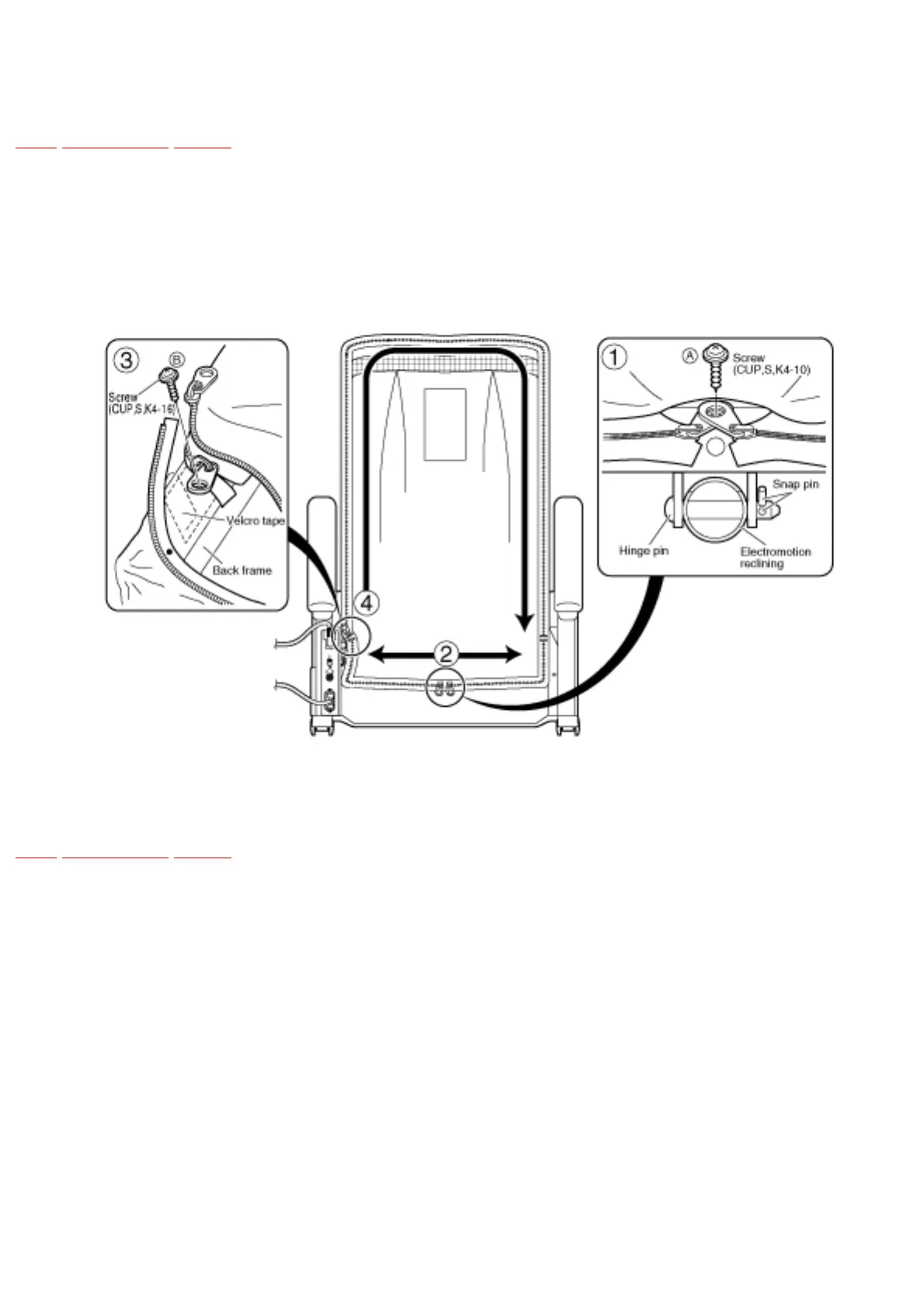

1. Remove the fastener screw of the rear cover (bottom-middle) (Cup, S, K4-10).
2. Pressing down the left and right side of lower part of rear cover (the plastic cover is provided
inside the ckoth), pull it to this side to remove the rear cover.
•@
