15.4 Removing the tapping clutch
TOP PREVIOUS NEXT

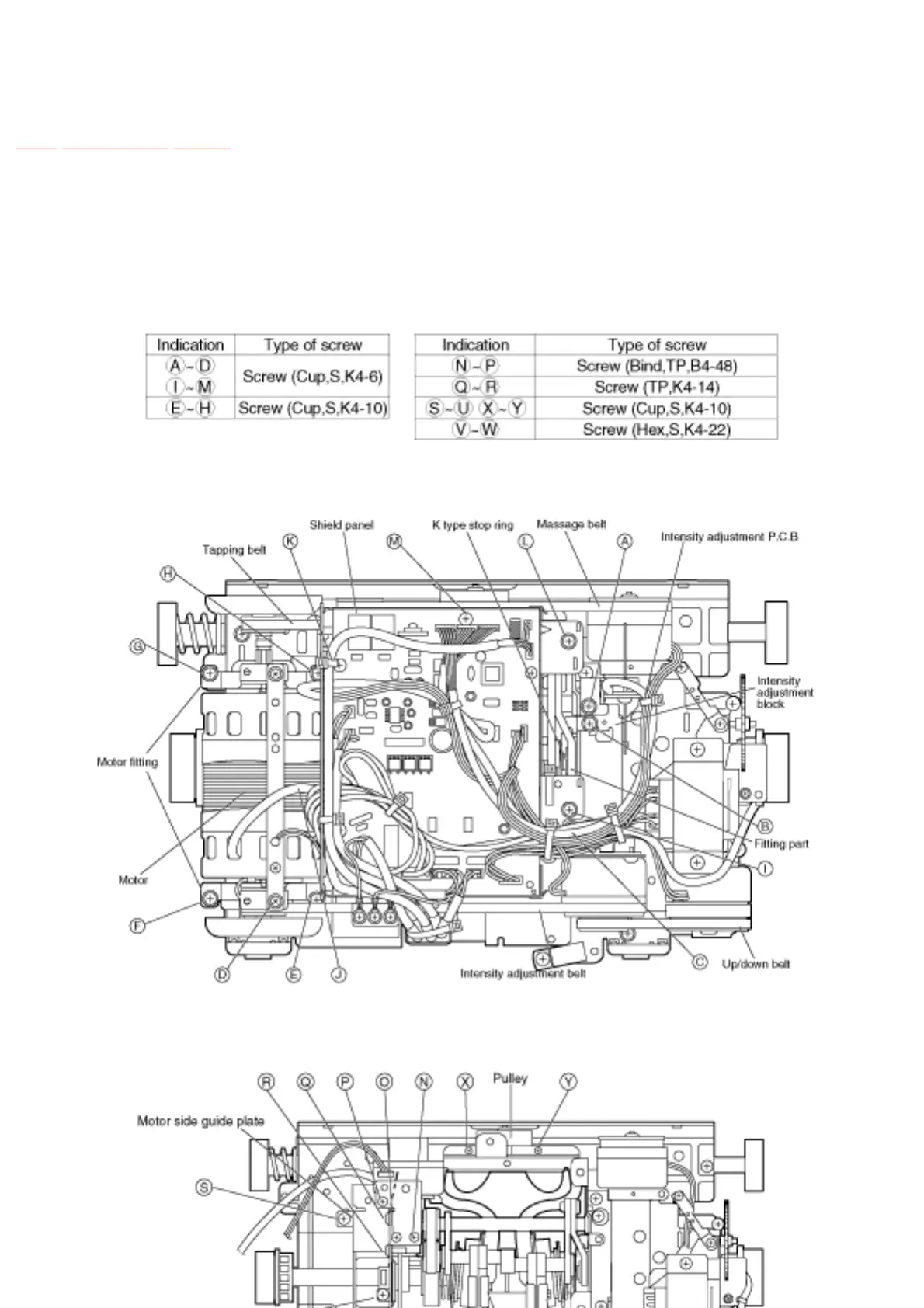

1. Perform the removal steps 1 to 12 of 3 Removing the tapping shaft assembly.
2. Remove the tapping clutch assembling screw(Bind,TP,B3-20), remove the tapping gear box B,
and remove the tapping clutch.
