Panasonic EU6441-U1 - Seat Lift Removal; Driving Unit Removal

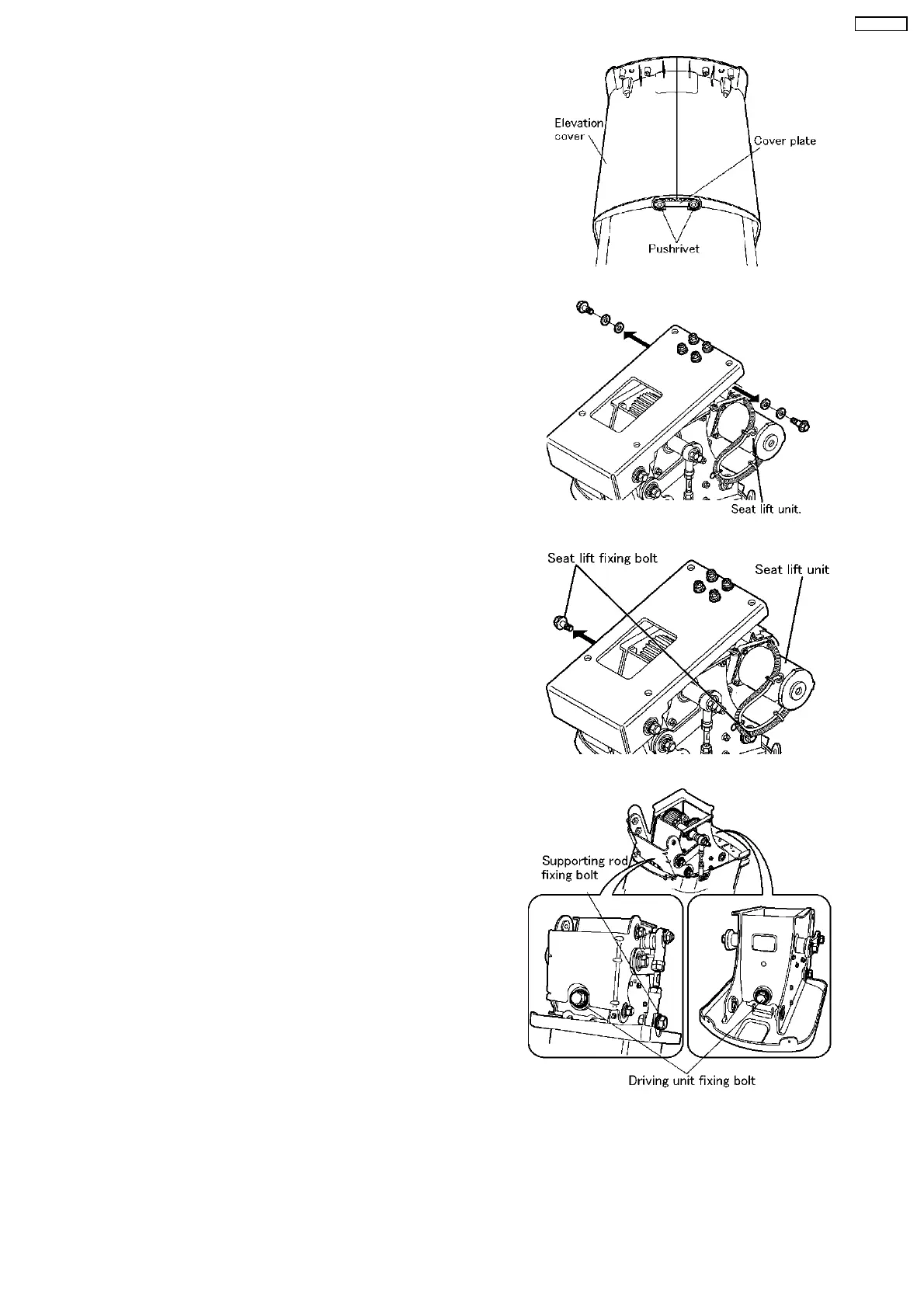

b. Remove the Cover plate and the Pushrivet.
9. Remove the Seat lift.
a. Remove the upper four Seat lift fixing bolts by
10mm(3/8´´) socket wrench.
b. Remove two Seat lift fixing bolts by 13mm(1/2´´) socket
wrench.
10. Remove the Driving unit.
a. Remove the Supporting rod fixing bolt by 17mm(5/(8´´)
socket wrench.
b. Remove two Driving unit fixing bolt by 19mm(3/4´´)
socket wrench.
11
EU6441-U1
