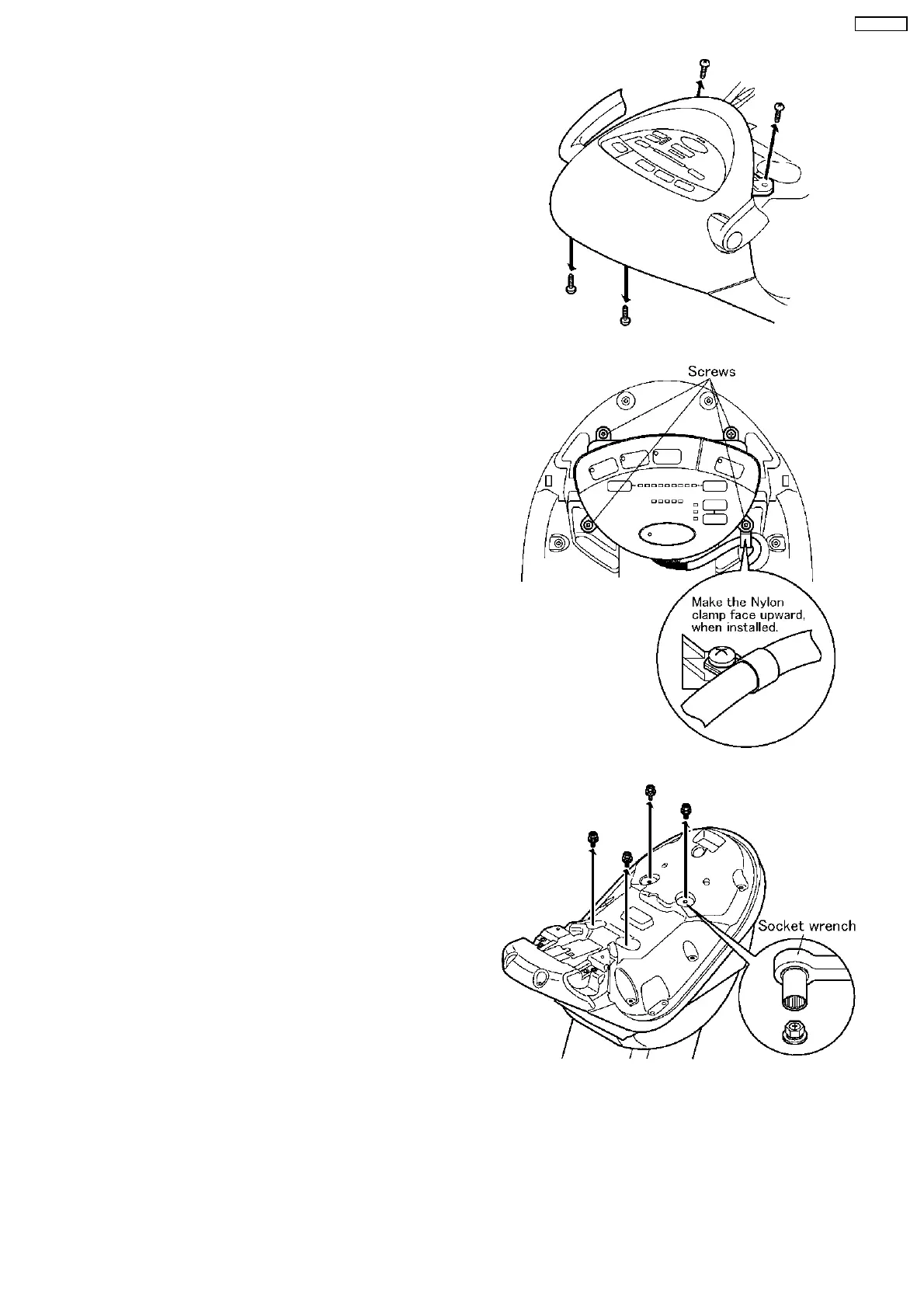

b. Unscrew four screws as the Figure.
4. Remove the Controller case.
a. Unscrew four screws as the Figure.
b. Be careful not to lose the Nylon clamp, which binds the
Connecting cord for Controller.
5. Remove the Seat.
a. Remove four Hexagonal bolts by 13mm(1/2´´) socket
wrench.
9
EU6441-U1
