5.2. Reassembly Instructions

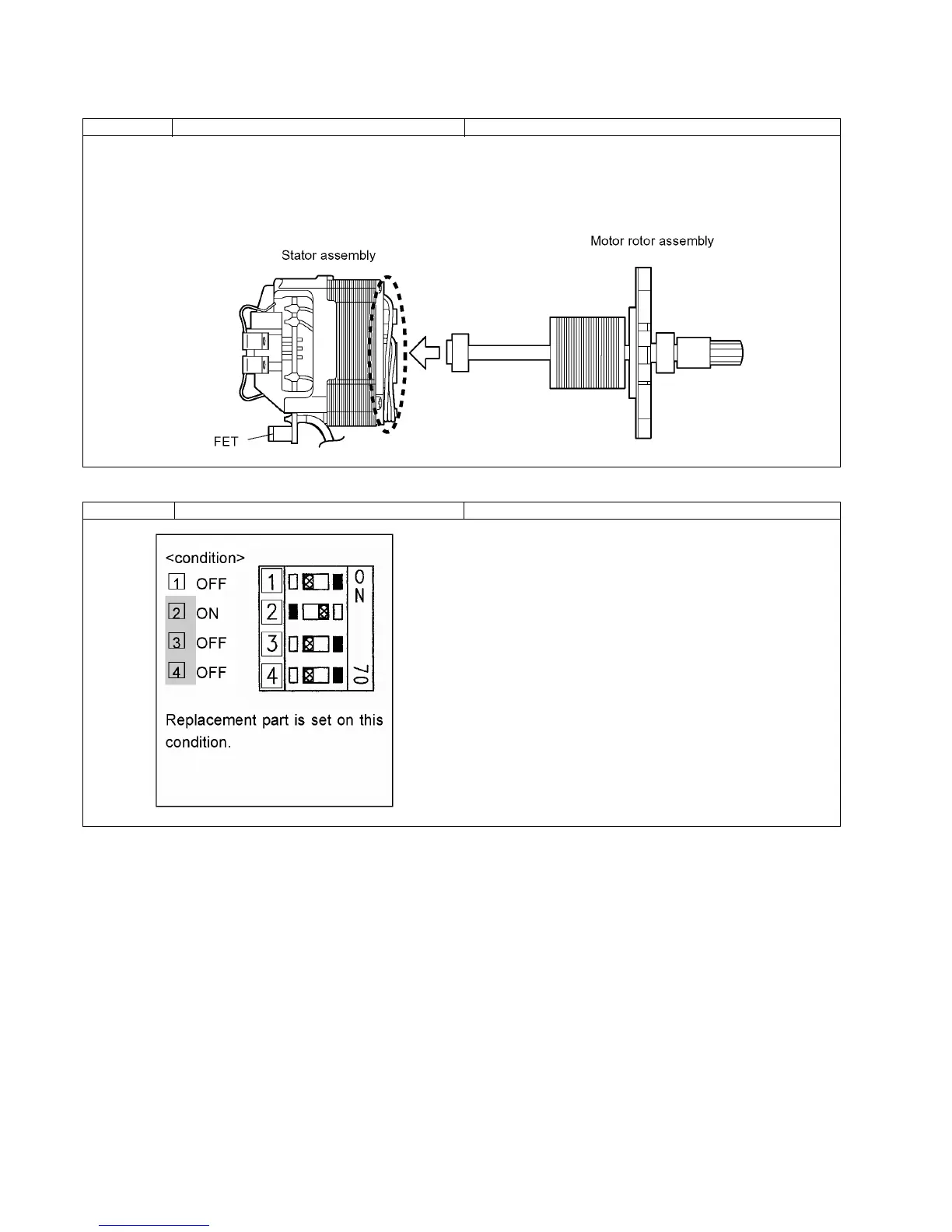

Ref. No. 2A Procedure 2A Assembly of Motor assembly.
1. Confirm if the metal powder is stuck around the rotor. If so, take out
by something like packaging tape.
2. Insert the motor rotor into the stator.
NOTE:
Confirm the coil does not touch with the fan.
Ref. No. 2B Procedure 2A 2B Assembly of Main PCB.
1. Set the DIP switch on the main circuit board with a toothpick.
NOTE:
Do not use a metal pick.
To Next Page
